Door Lock Cylinder: Testing and Inspection

Key Cylinder Switch Circuit Check [Driver Side]

Description

The main power window and door lock/unlock switch detects condition of the door key cylinder switch and transmits to BCM as the LOCK or UNLOCK signal.

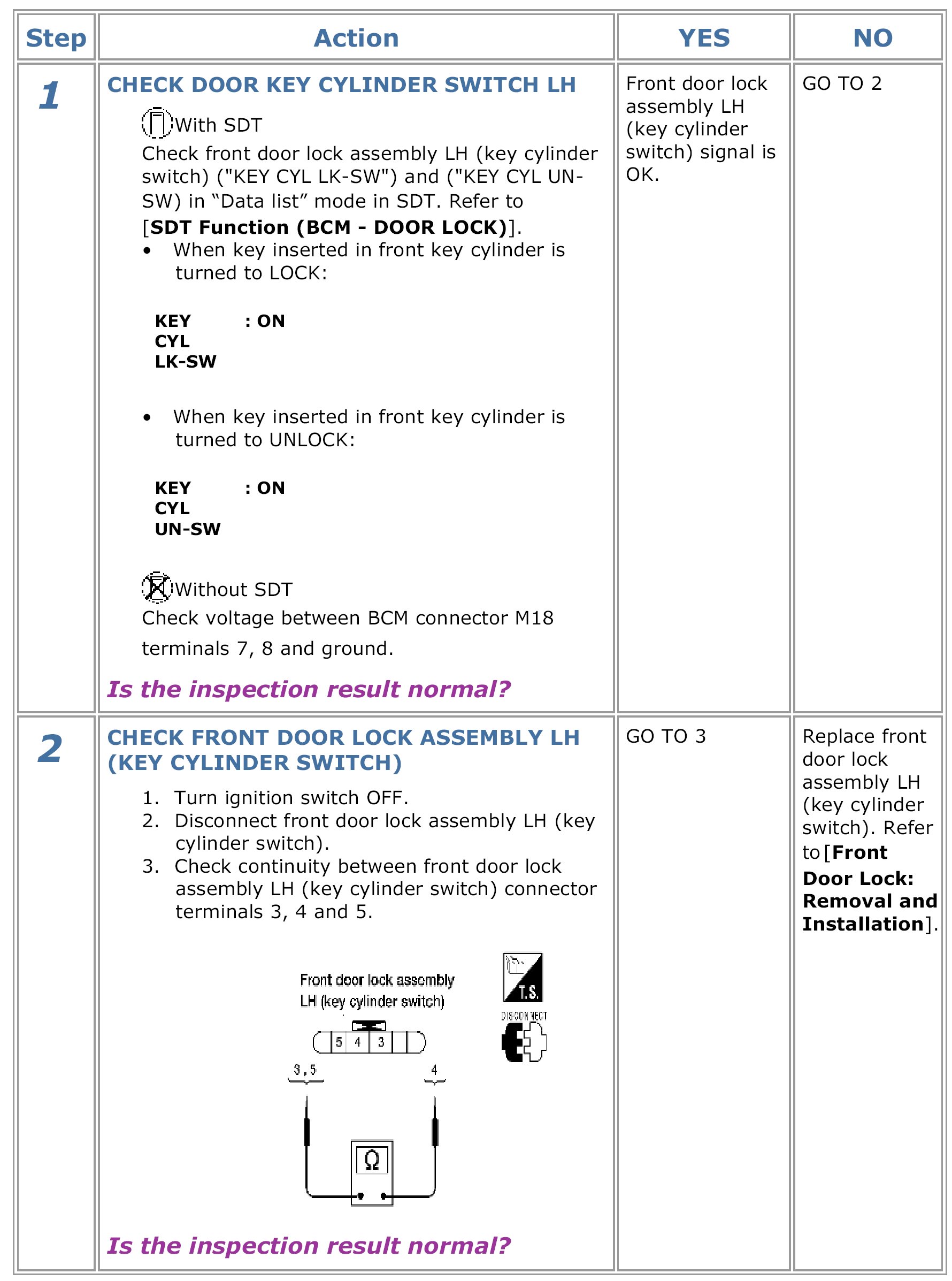

Component Function Check

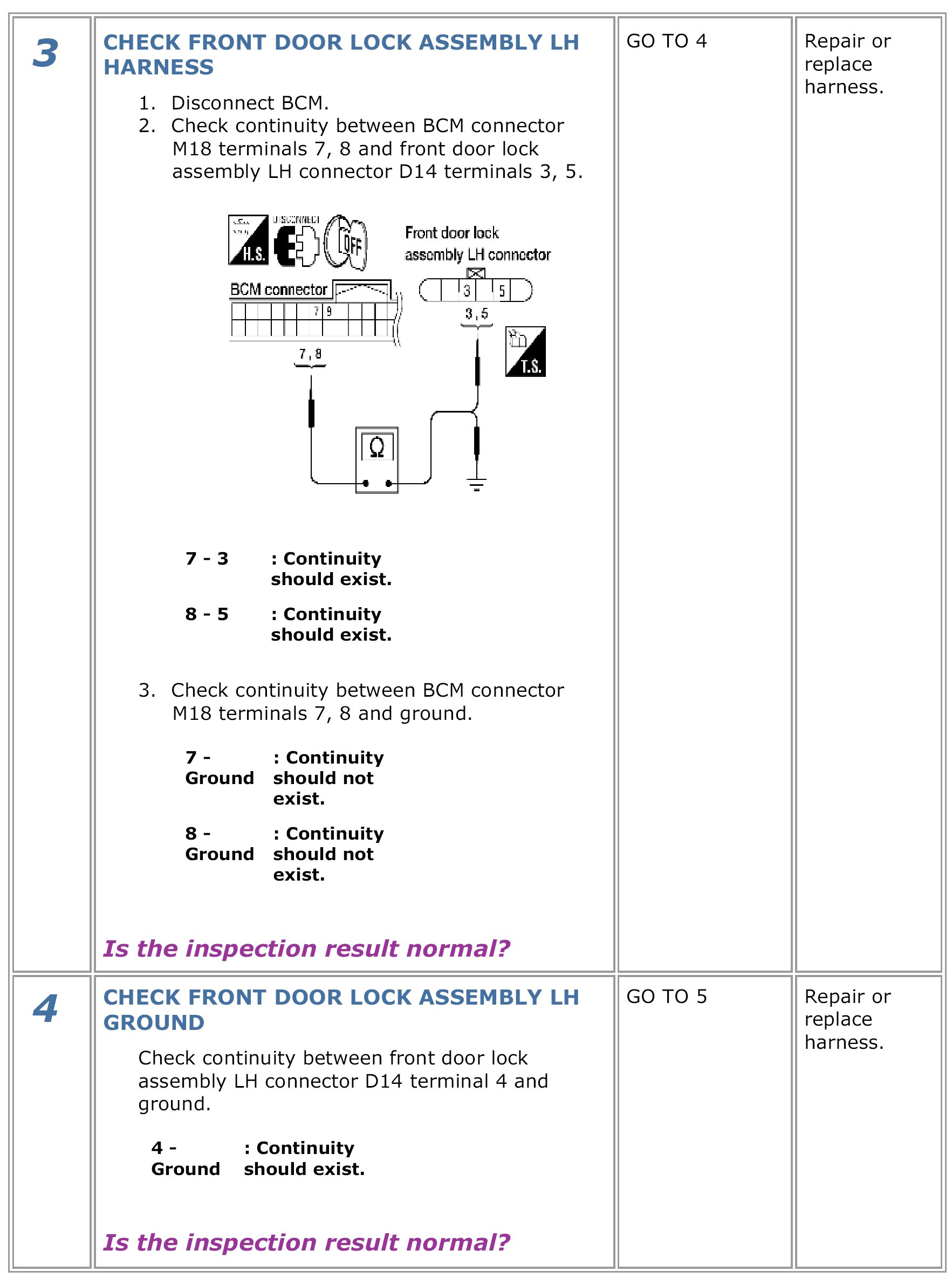

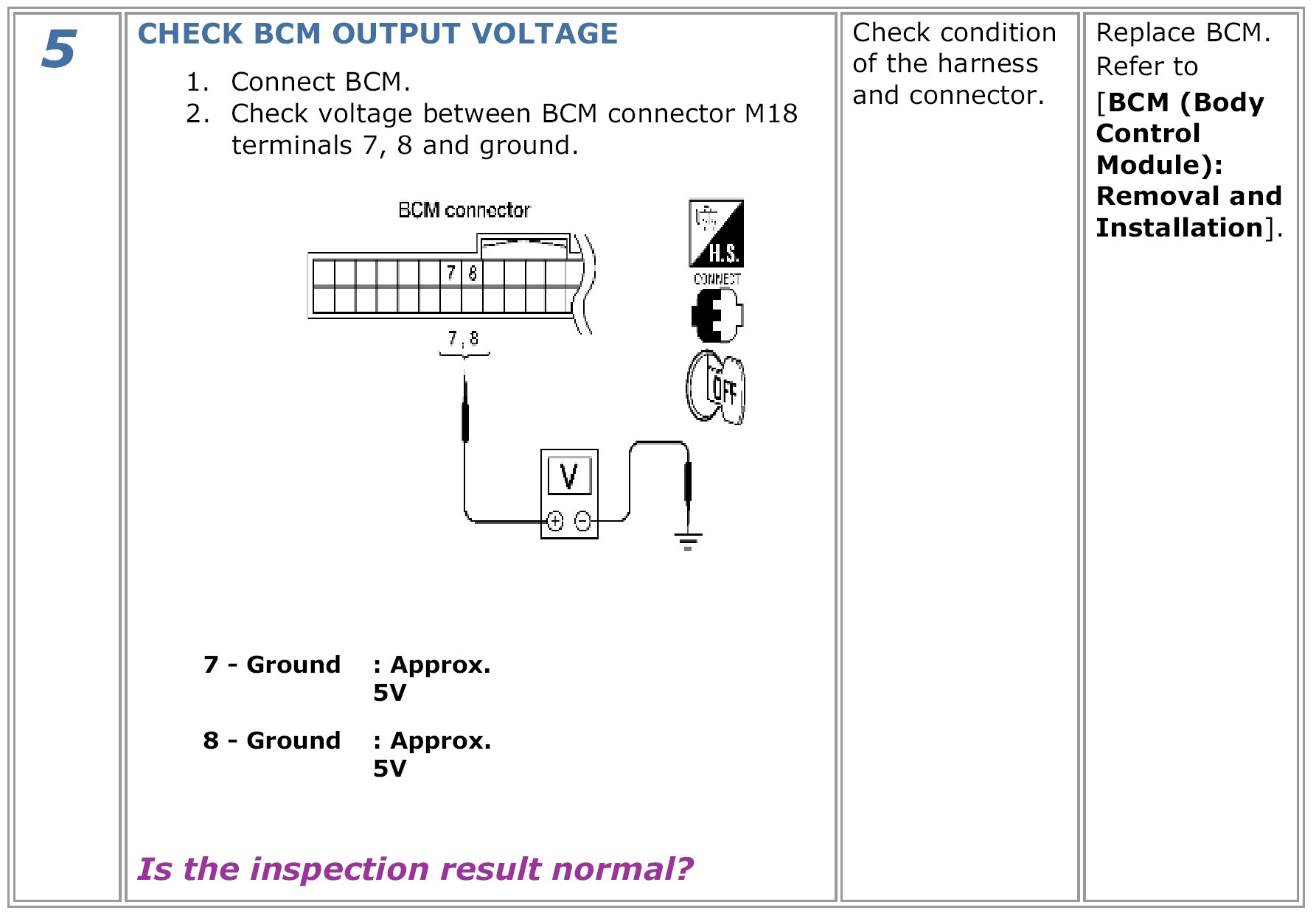

Diagnosis Procedure
