Lower Instrument Panel LH

LOWER INSTRUMENT PANEL LH







Removal

1. Remove front pillar lower finisher. Refer to [Body Side Trim: Removal and Installation].

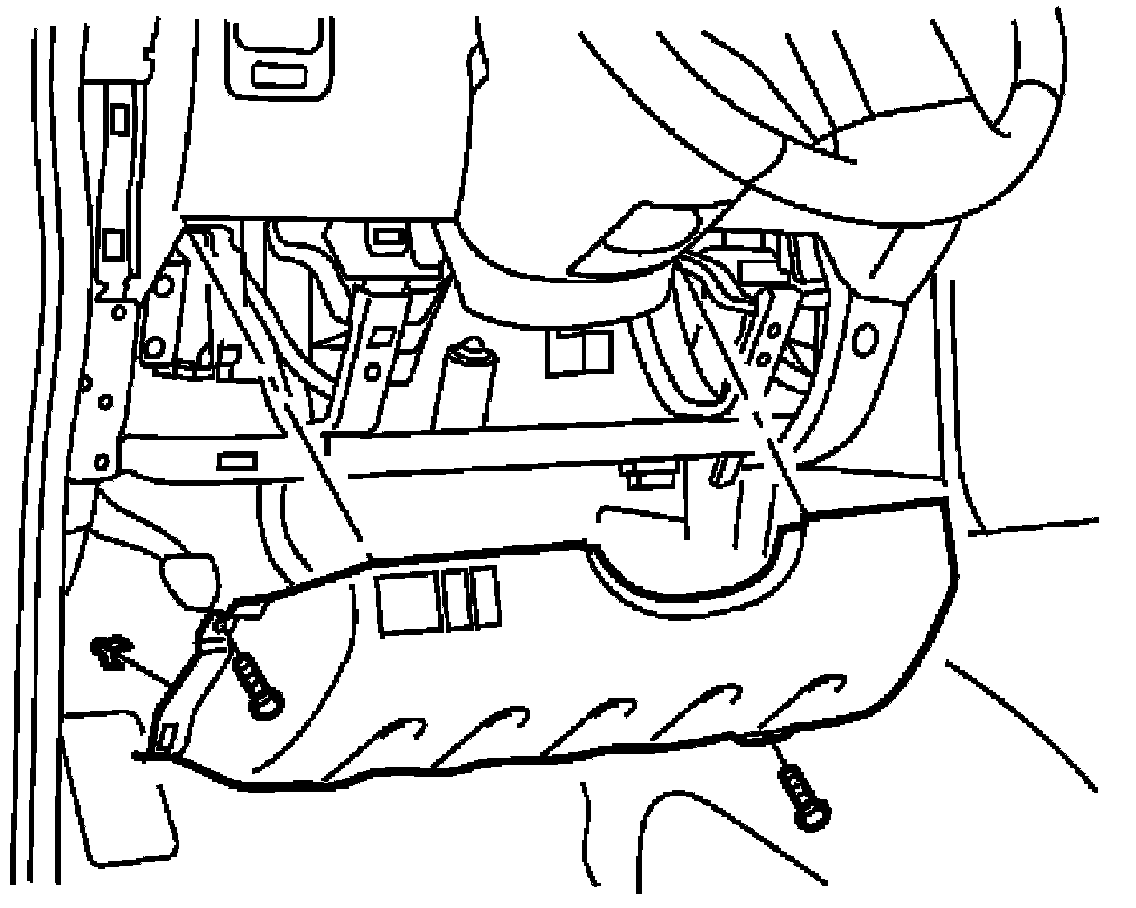

2. Remove lower instrument panel LH screws, using power tool.







3. Pull rearward to release lower instrument panel LH.
4. Disconnect lower instrument panel LH harness connectors.

Installation

Installation is in the reverse order of removal.
