Cluster Lid D - Base

CLUSTER LID D - BASE










Removal

1. Remove center console.
2. Remove lower instrument panel LH. Refer to [Instrument Panel Assembly: Removal and Installation].
3. Remove lower instrument panel RH. Refer to [Instrument Panel Assembly: Removal and Installation].
4. Remove cluster lid C. Refer to [Instrument Panel Assembly: Removal and Installation].

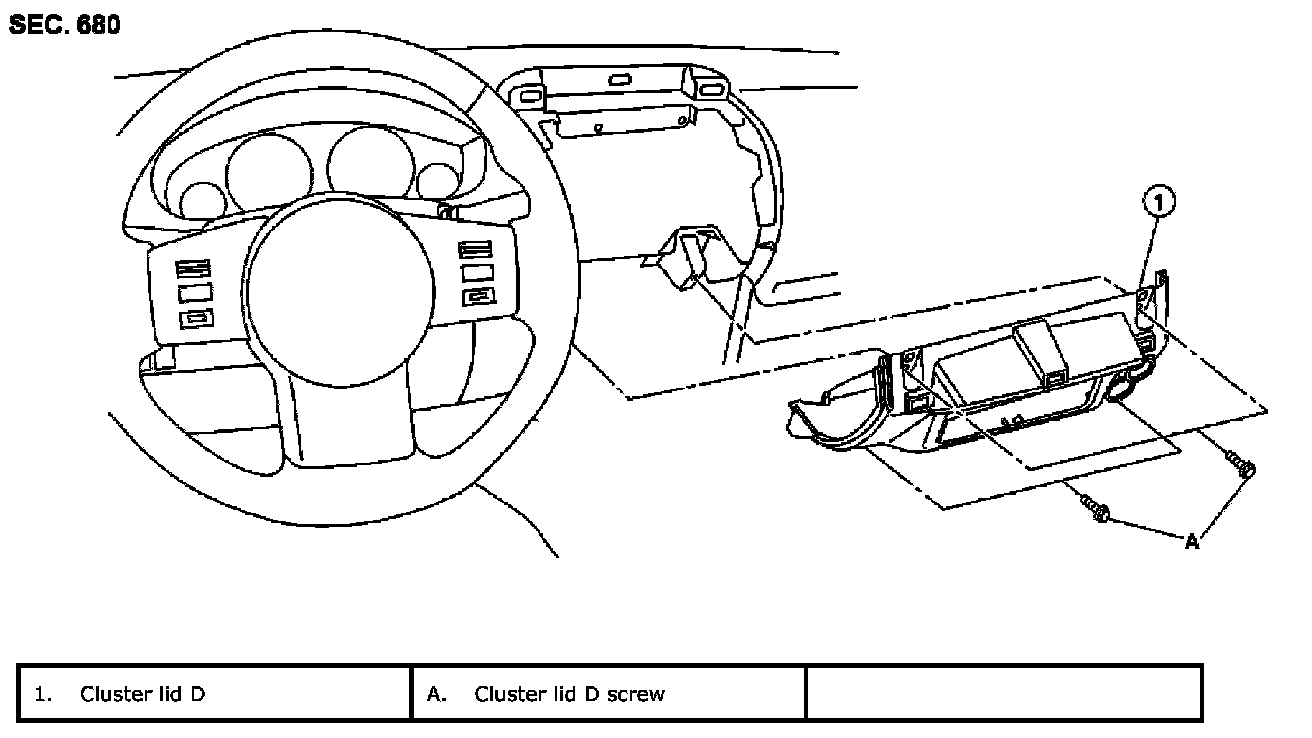

5. Remove the screws, then disconnect the harness connectors and remove cluster lid D.

Installation

Installation is in the reverse order of removal.
