Cluster Lid C - Base

CLUSTER LID C - BASE










Removal

CAUTION: Before servicing, turn the ignition switch off, disconnect both battery terminals, then wait at least 3 minutes.

1. Disconnect the negative and positive battery negative terminals.

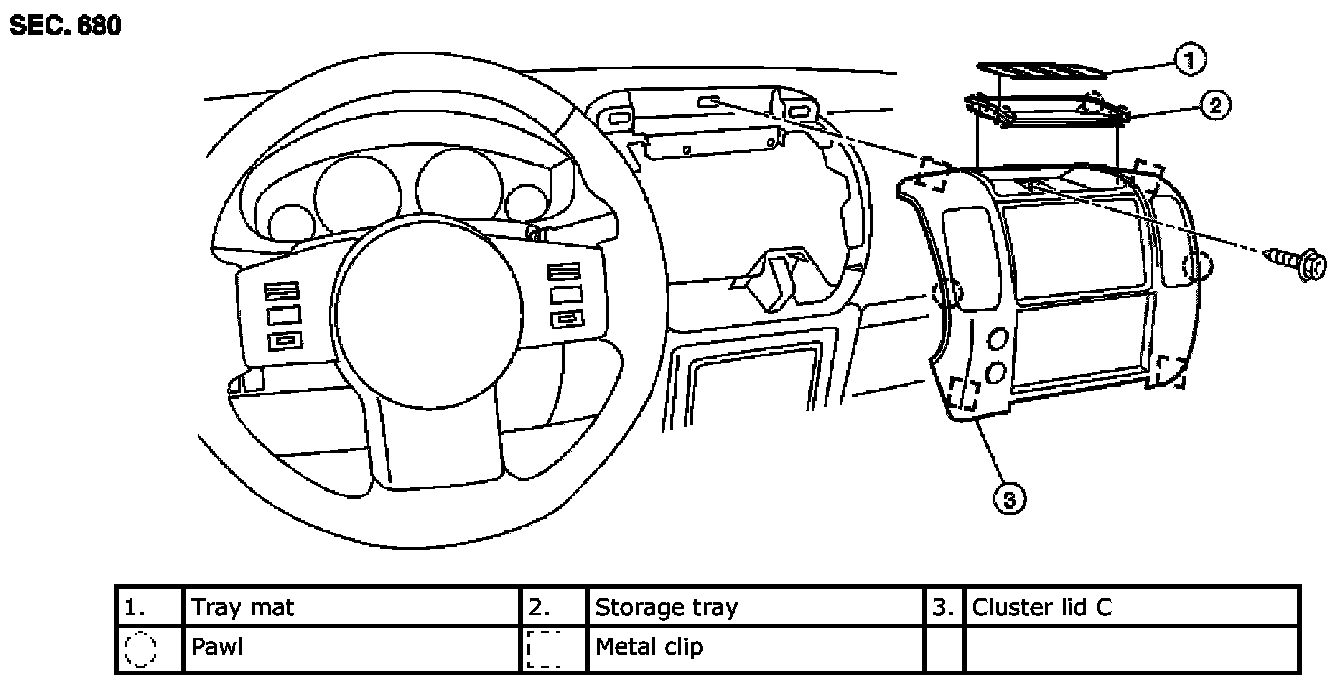

2. Remove tray mat, then release the clips and remove storage tray.
3. Remove the screw, then release the clips and remove cluster lid C from instrument panel and pad assembly.
4. Disconnect harness connectors and remove cluster lid C.

Installation

Installation is in the reverse order of removal.
