Overhaul

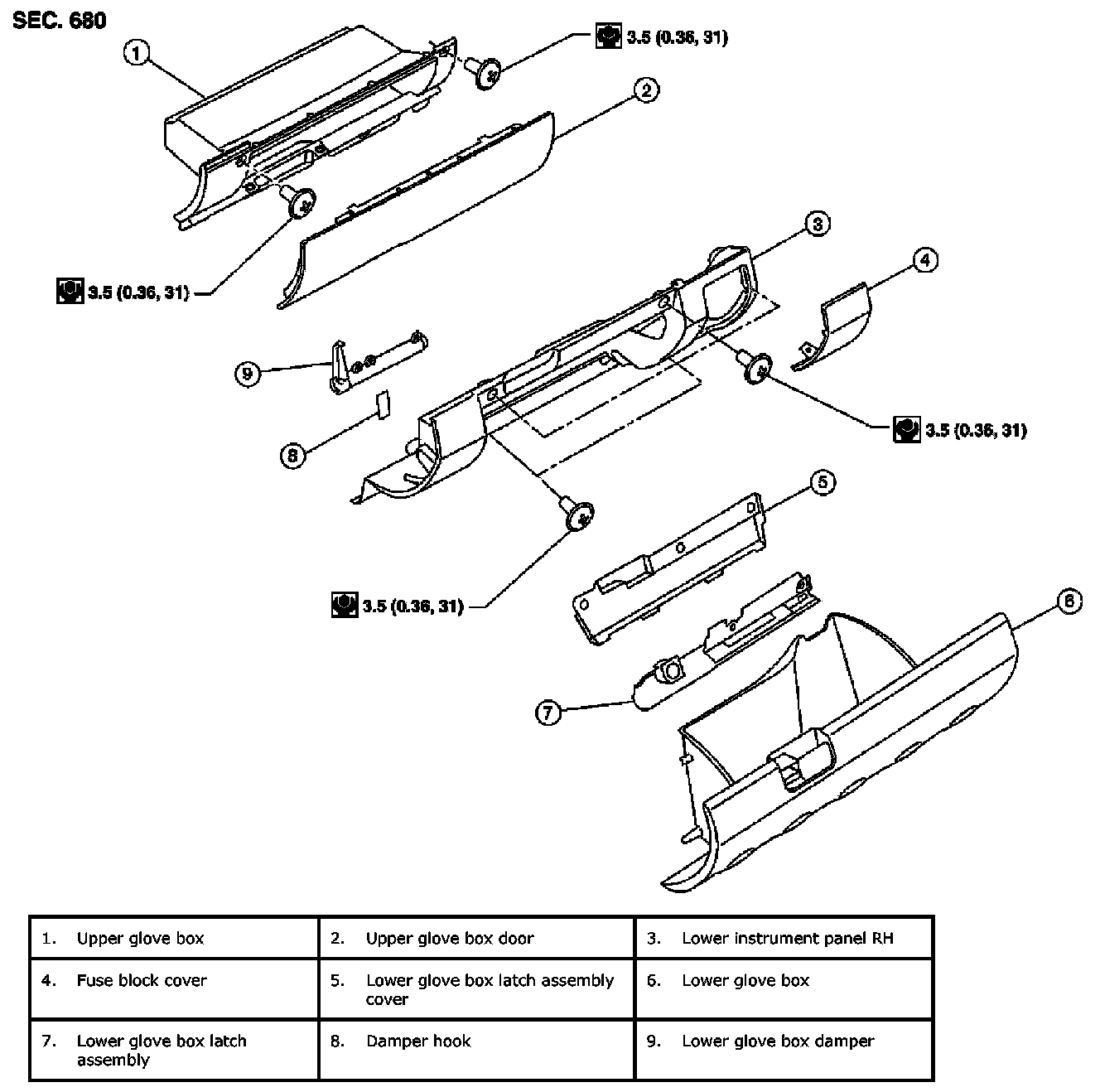

INSTRUMENT LOWER PANEL RH AND GLOVE BOX







Disassembly

1. Remove fuse block cover.
2. Remove damper hook.
3. Remove lower glove box latch cover.
4. Remove lower glove box latch assembly.

Assembly

Assembly is in the reverse order of disassembly.
