M/T Finisher

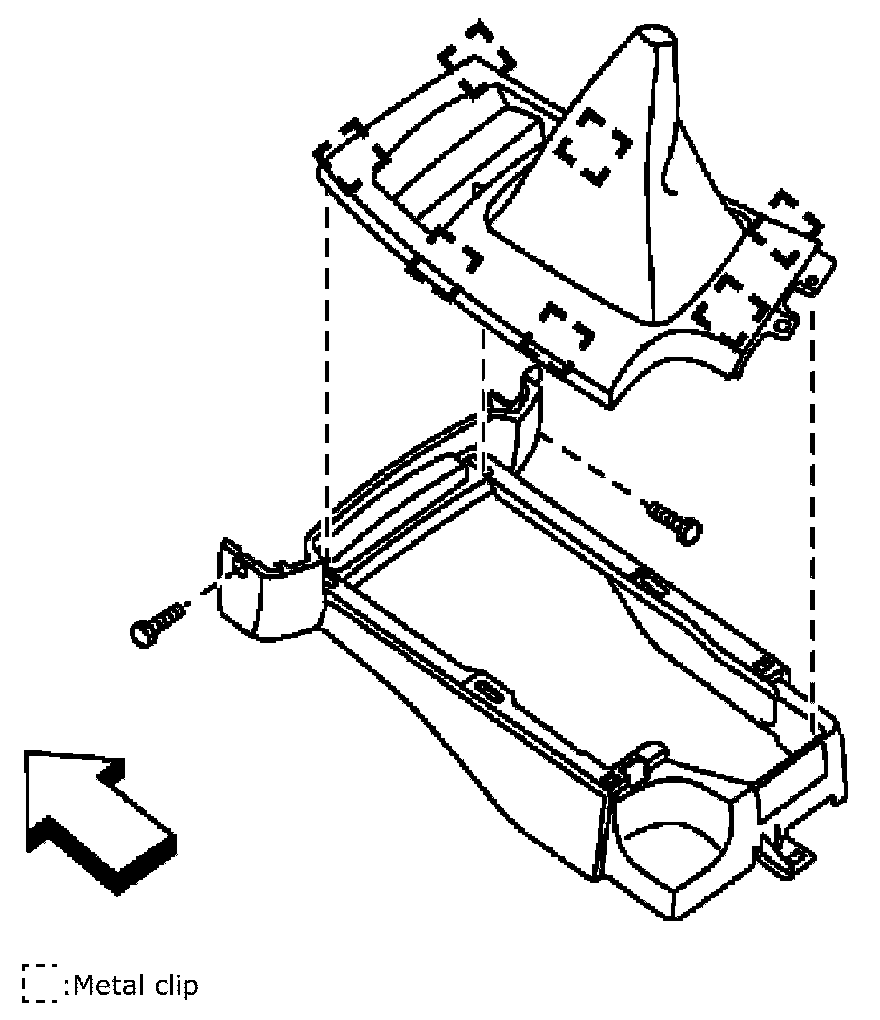

M/T FINISHER

Removal

1. Remove cup holder finisher.
2. Rotate shift knob counterclockwise, then remove.
3. Pull up to release clips, then remove the M/T finisher.







Installation

Installation is in the reverse order of removal.
