Front Door: Adjustments

Door: Fitting Adjustment

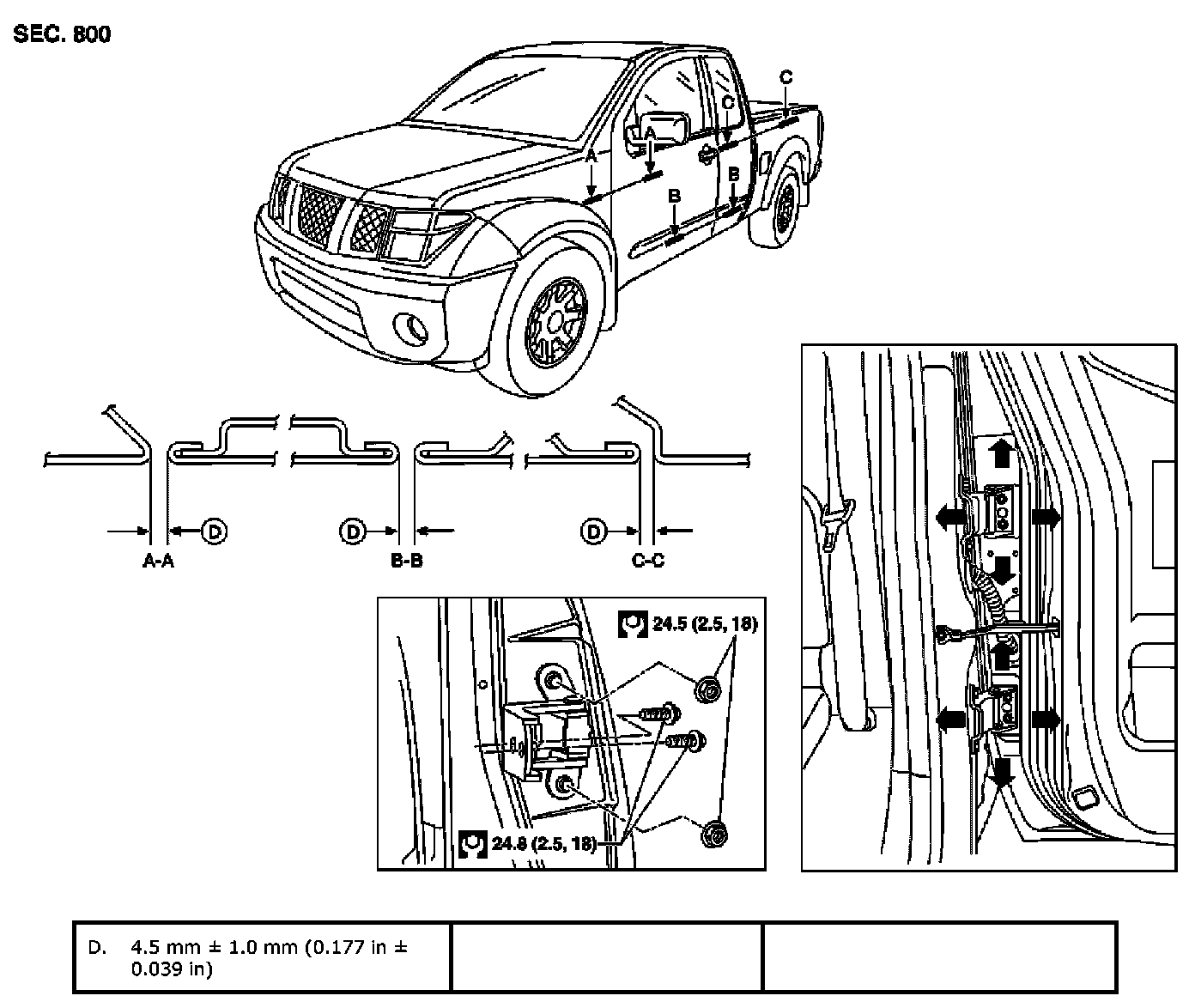

KING CAB

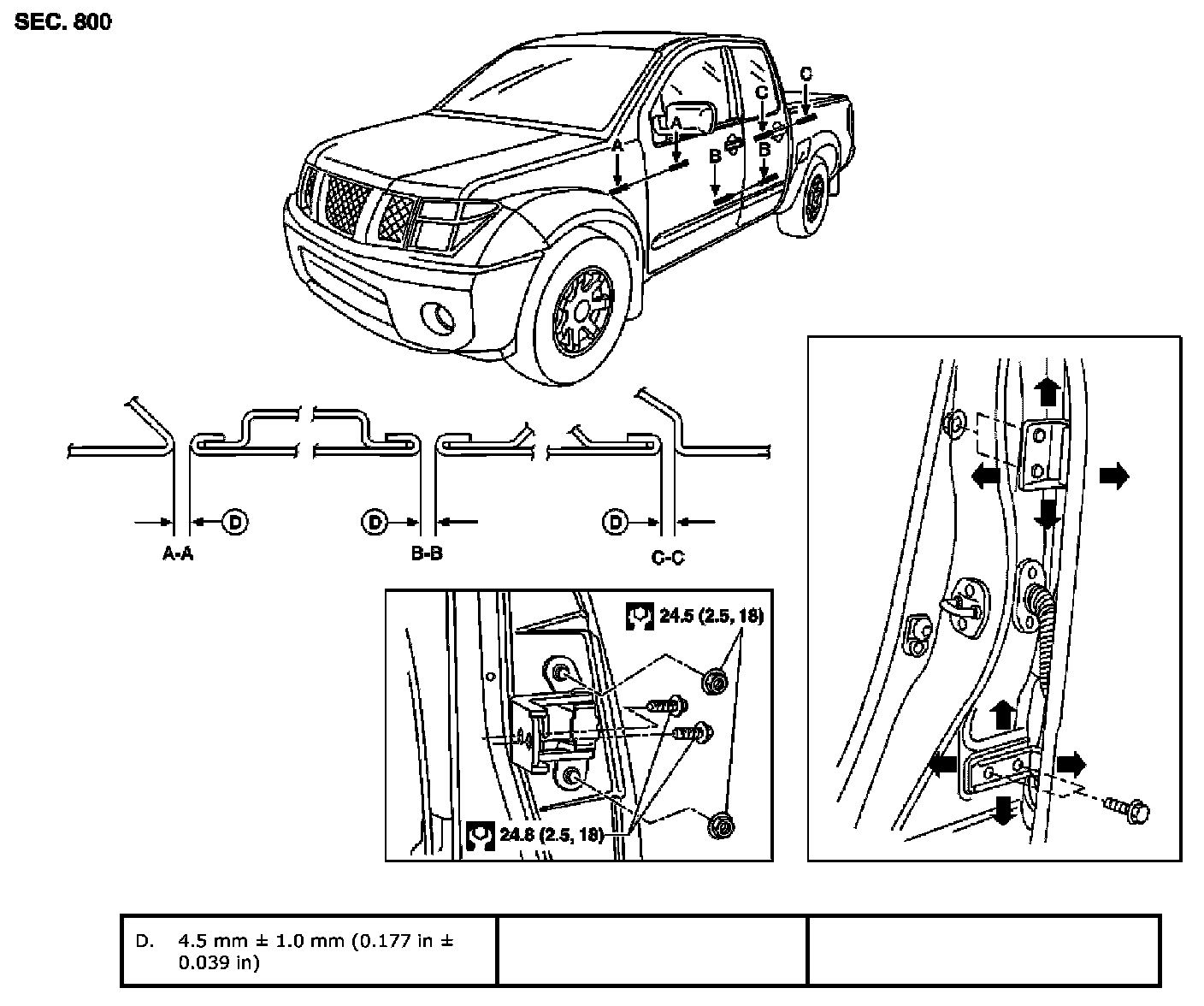

CREW CAB







FRONT DOOR

Longitudinal clearance and surface height adjustment at front end
1. Remove the front fender. Refer to [Front Fender: Removal and Installation].
2. Loosen the hinge bolts. Raise the front door at rear end to adjust.
3. Install the front fender. Refer to [Front Fender: Removal and Installation].

REAR DOOR

Longitudinal clearance and surface height adjustment at front end
1. Remove the center pillar upper finisher. Refer to [Body Side Trim: Component].
2. Accessing from inside the vehicle, loosen the nuts. Open the rear door, and raise the rear door at rear end to adjust.
3. Install the center pillar lower finisher. Refer to [Body Side Trim: Component].

STRIKER ADJUSTMENT

1. Adjust the striker so that it becomes parallel with the lock insertion direction.







Striker bolts: 16.6 N.m (1.7 kg-m, 12 ft-lb)

2. Remove the upper striker covers and adjust the striker so that it becomes parallel with the lock insertion direction.







Striker bolts: 16.6 N.m (1.7 kg-m, 12 ft-lb)
