Cowl Moulding / Trim: Service and Repair

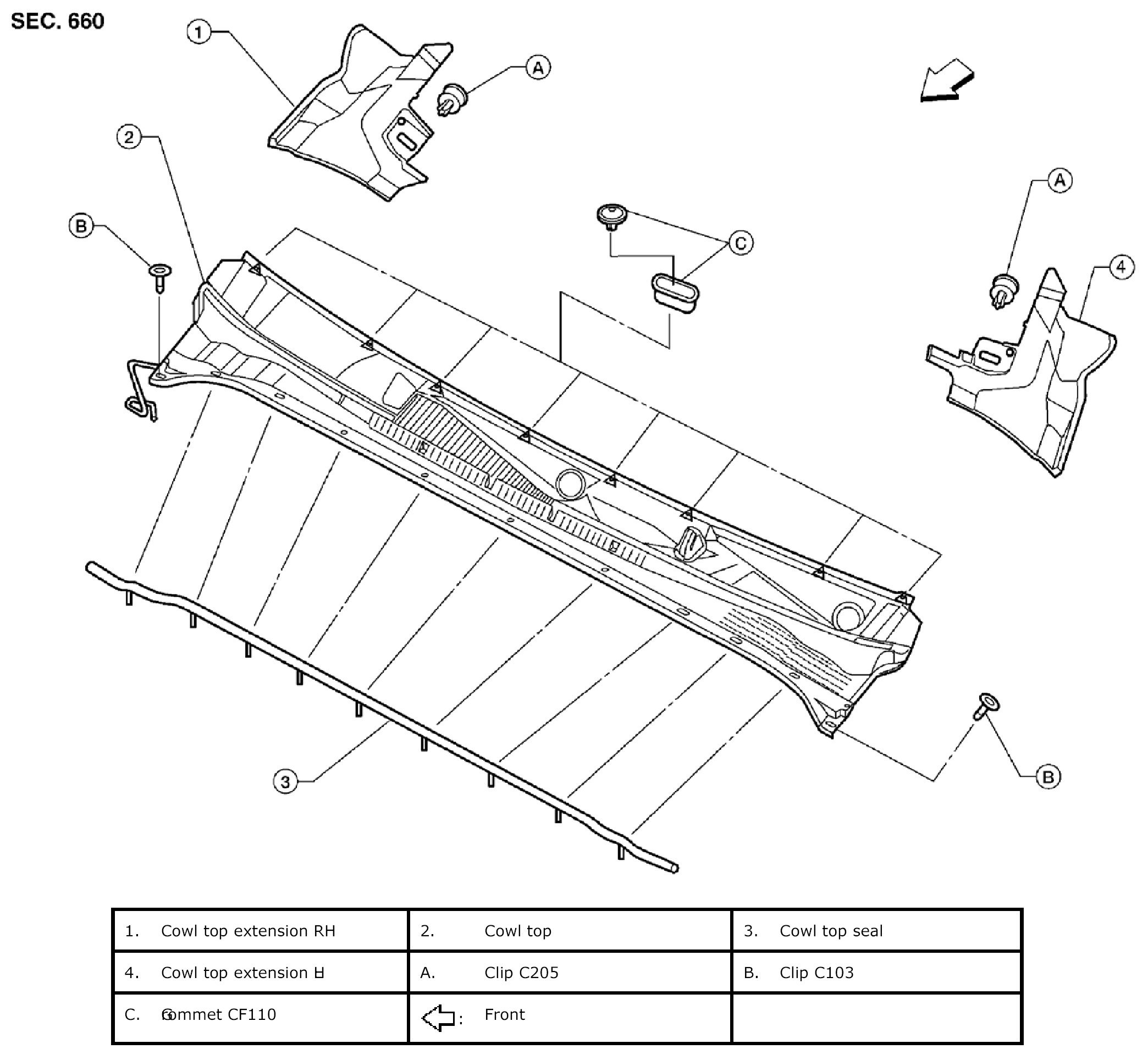

Cowl Top: Removal And Installation







REMOVAL

1. Remove the front wiper arms. Refer to [Front Wiper Arms: On-Vehicle Repair].
2. Remove the cowl top seal.
3. Remove the cowl top clips and lift the cowl top, disconnect the washer tubes from the washer nozzles and remove the cowl top.
4. Release the clips and remove the LH and RH cowl top extensions.

INSTALLATION

Installation is in the reverse order of removal.
