Front Bumper: Service and Repair

Front Bumper: Removal And Installation

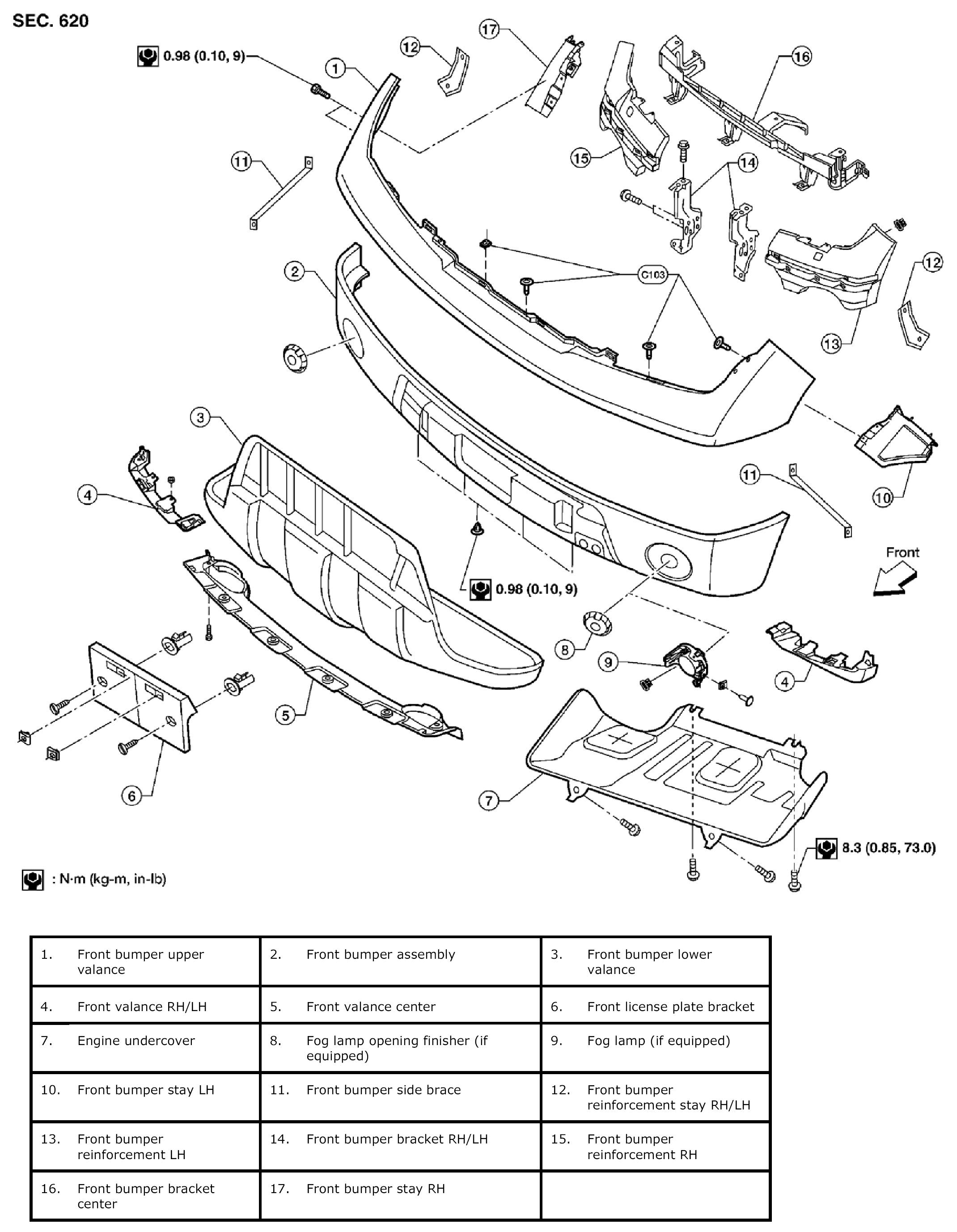

STEEL BUMPER







Removal

1. Remove radiator grille. Refer to [Front Grille: Removal and Installation].
2. Remove front valance LH, center, then RH.
3. Disconnect front valance lower from engine undercover.
4. Remove front bumper stays LH and RH.
5. Disconnect fog lamp harnesses, if equipped.
6. Remove front bumper reinforcement stays RH and LH.
7. Disconnect front fender protector and front bumper upper valance from fender.
8. Disconnect front bumper upper valance from front bumper bracket center.
9. Remove front bumper assembly.

Installation

Installation is in the reverse order of removal.

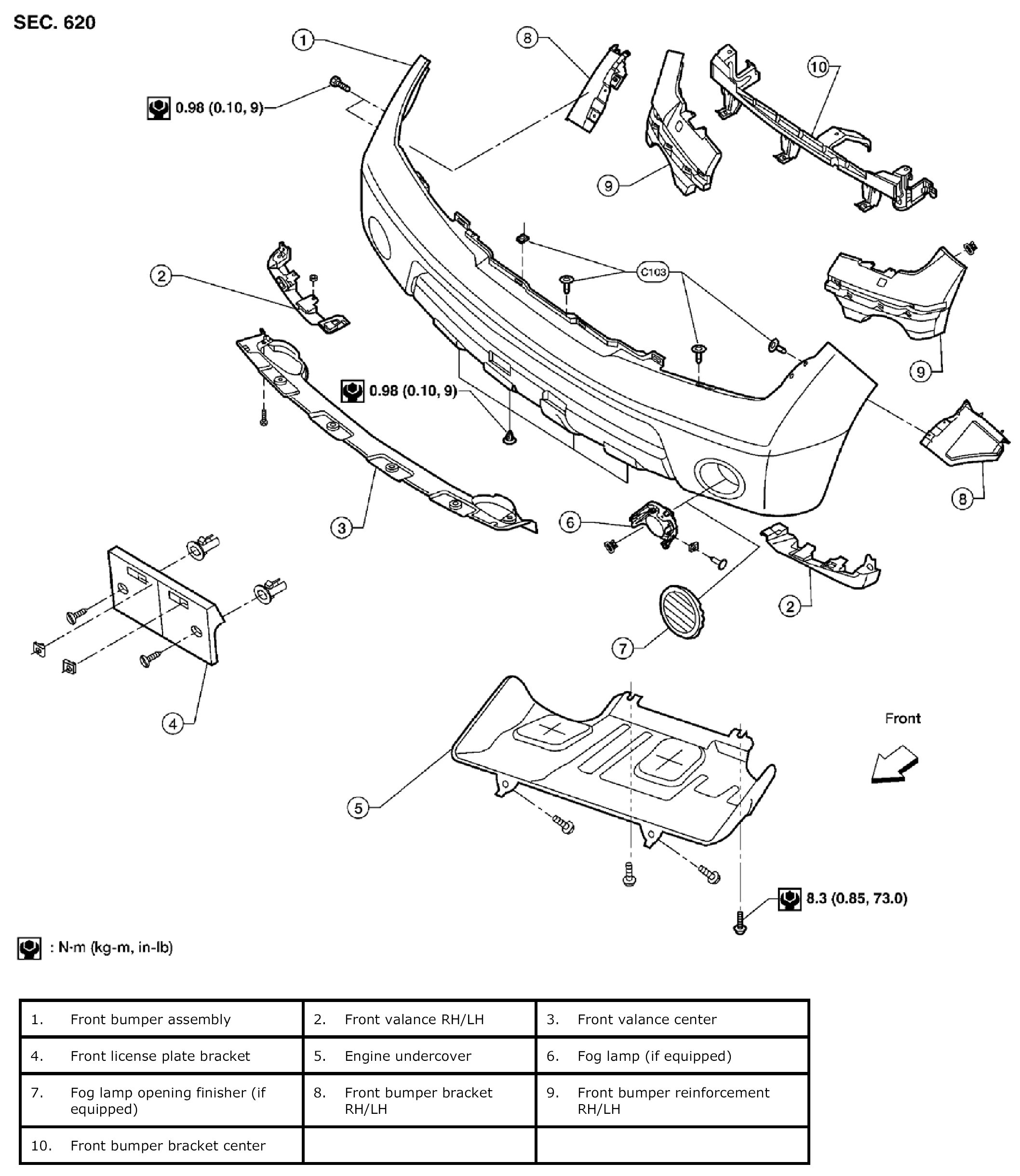

PLASTIC BUMPER







Removal

1. Remove radiator grille. Refer to [Front Grille: Removal and Installation].
2. Remove front valance LH, center, then RH.
3. Remove front undercover.
4. Disconnect front portion of fender protectors LH and RH. Refer to [Front Fender Protector: Removal and Installation].
5. Disconnect front bumper bracket center and front fenders.
6. Disconnect fog lamp harnesses, if equipped.
7. Remove front bumper assembly.

Installation

Installation is in the reverse order of removal.
