Front Tweeter Circuit Check

Front Tweeter Circuit Check

Description

The audio unit sends audio signals to the front tweeters using the front tweeter circuits.

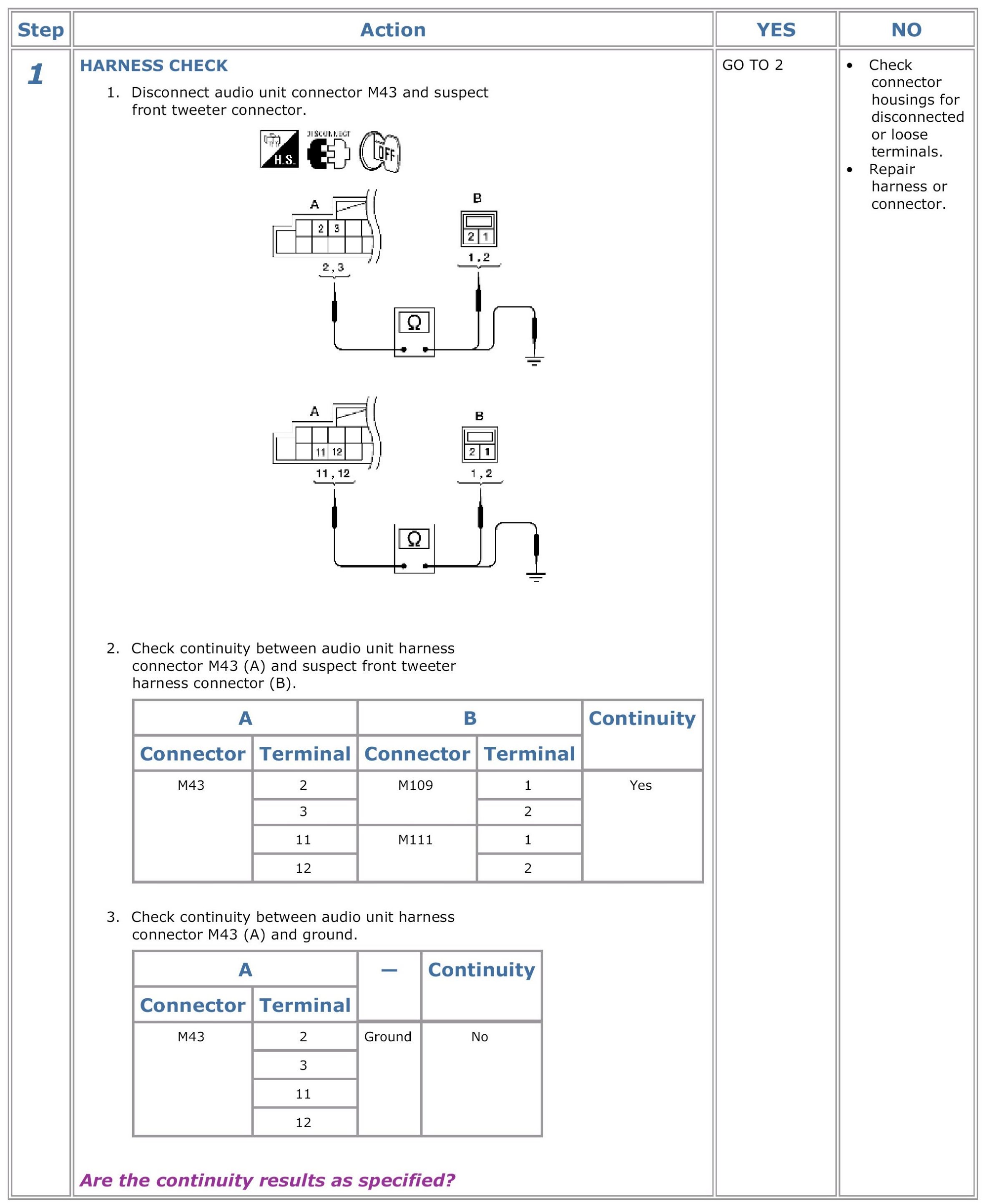

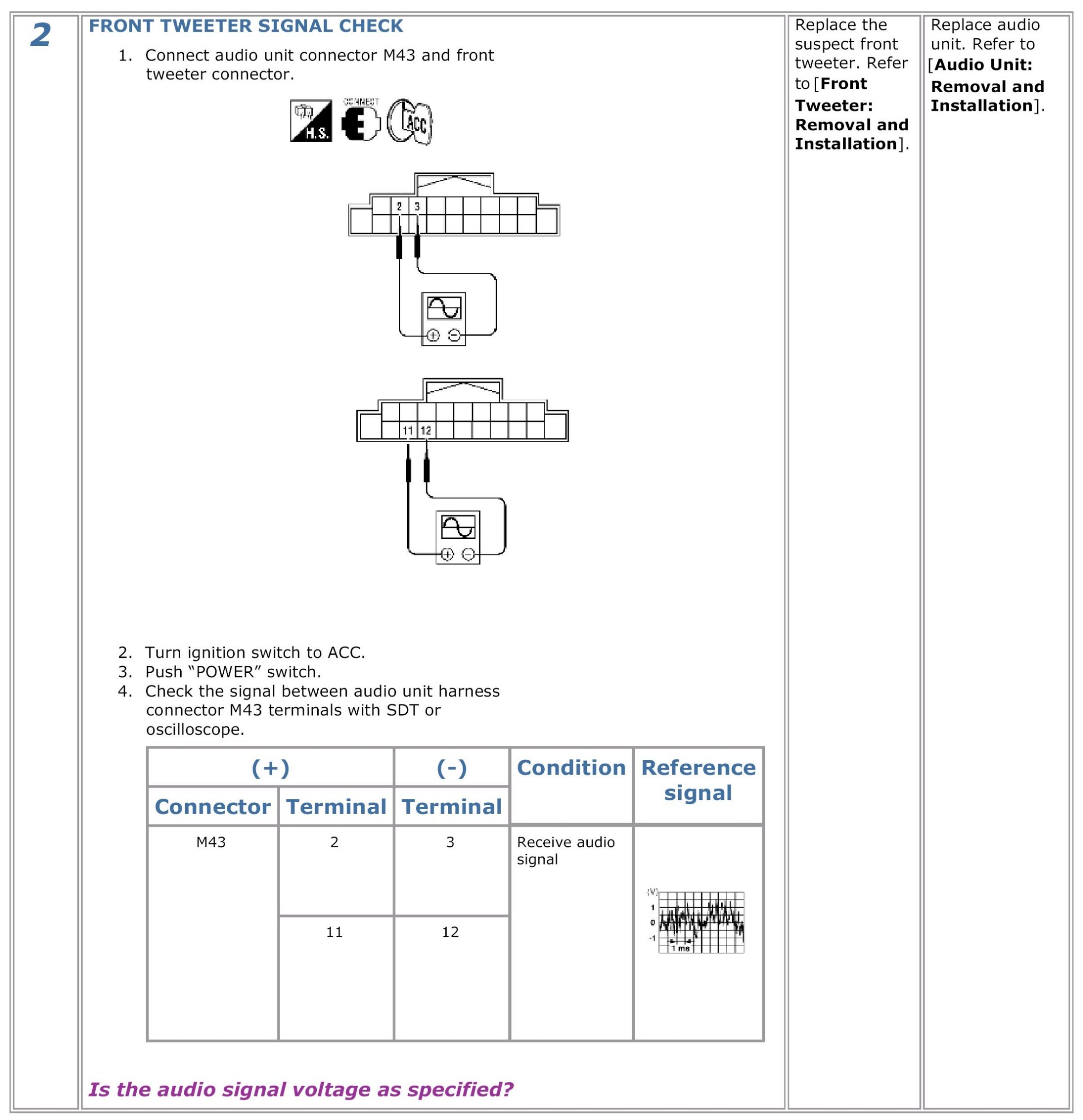

Diagnosis Procedure
