Speaker: Testing and Inspection

Rear Door Tweeter Circuit Check

Description

The audio unit sends audio signals to the audio amp. The audio amp. amplifies the audio signals before sending them to the rear door tweeters using the audio signal circuits.

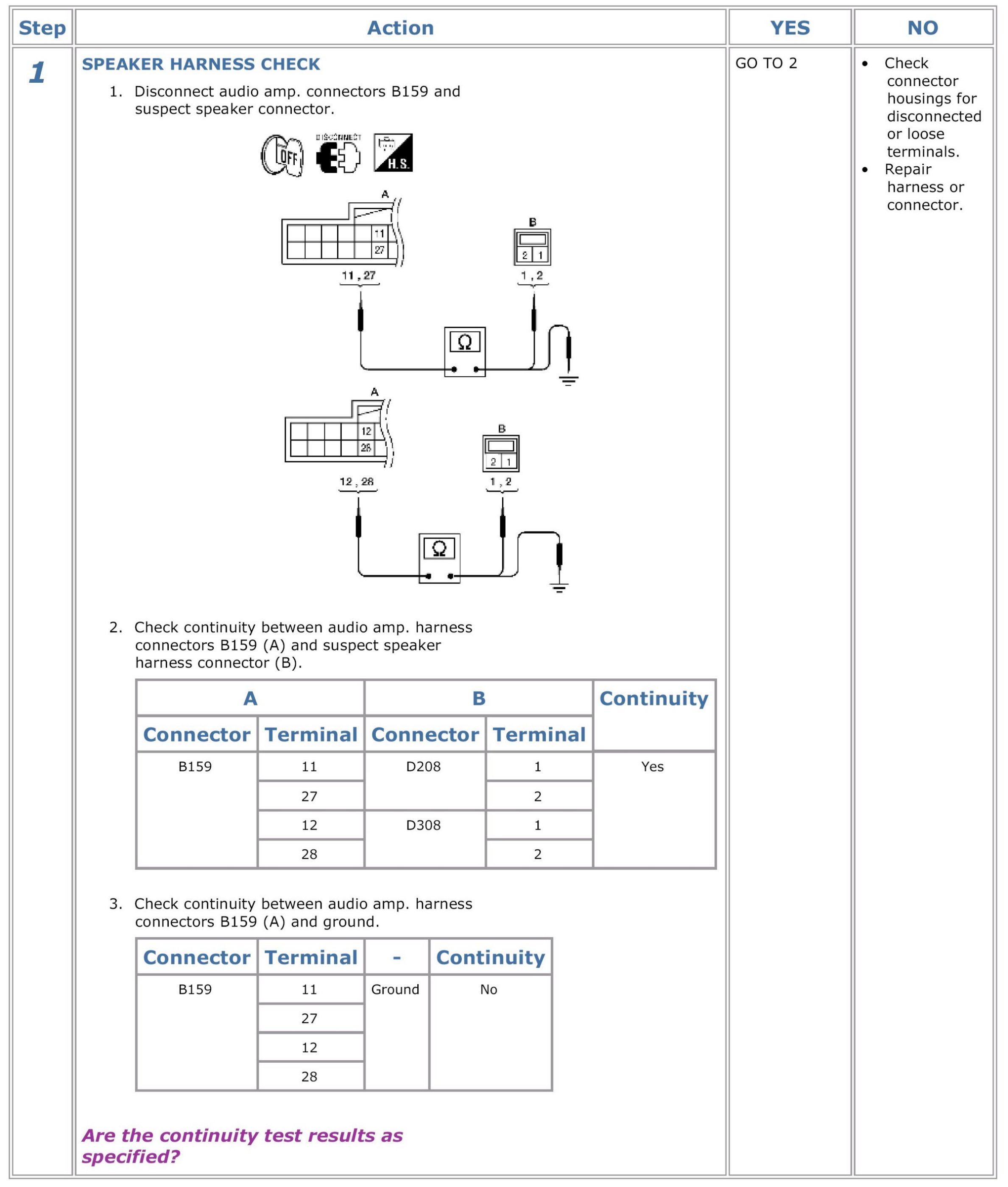

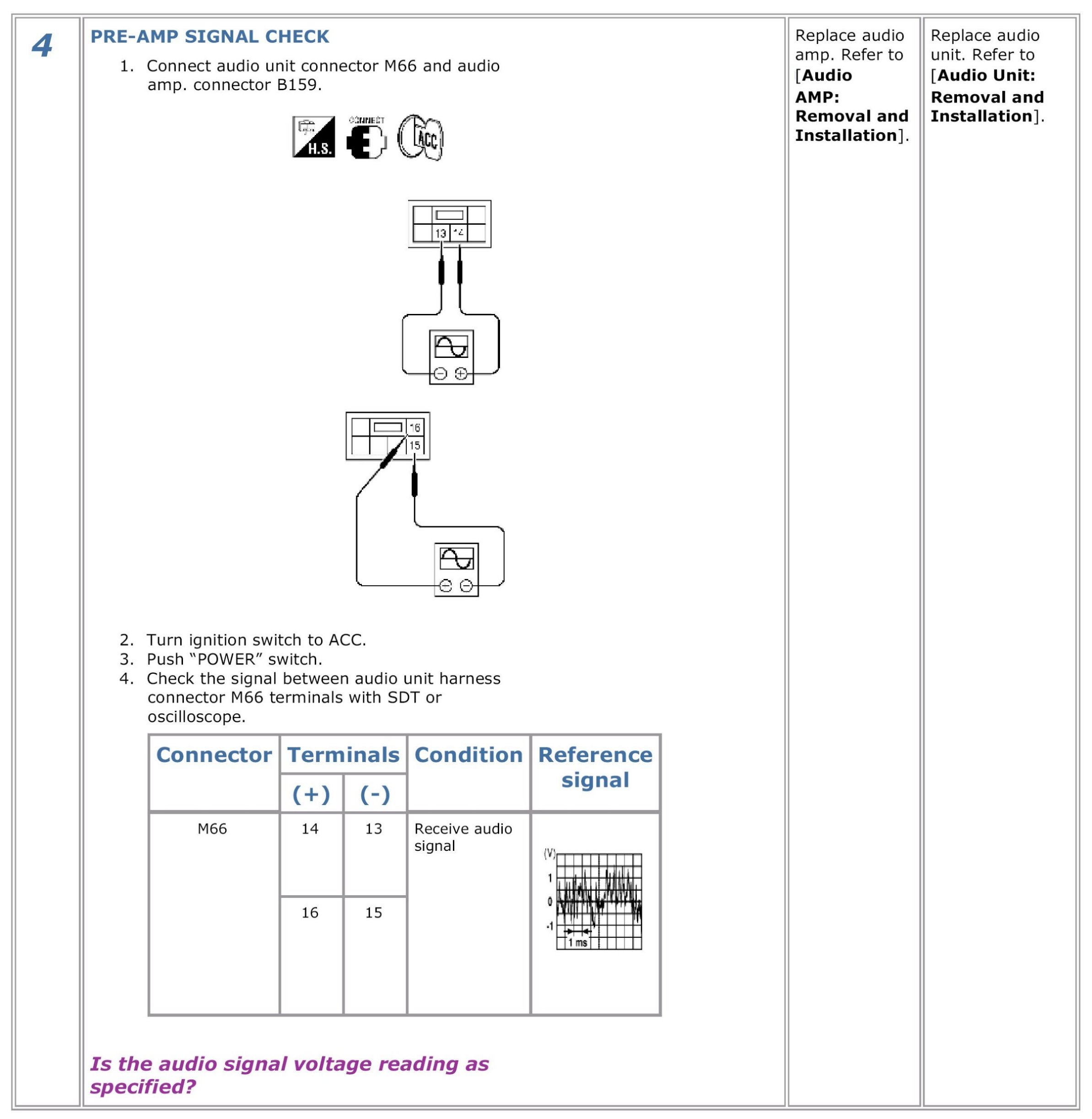

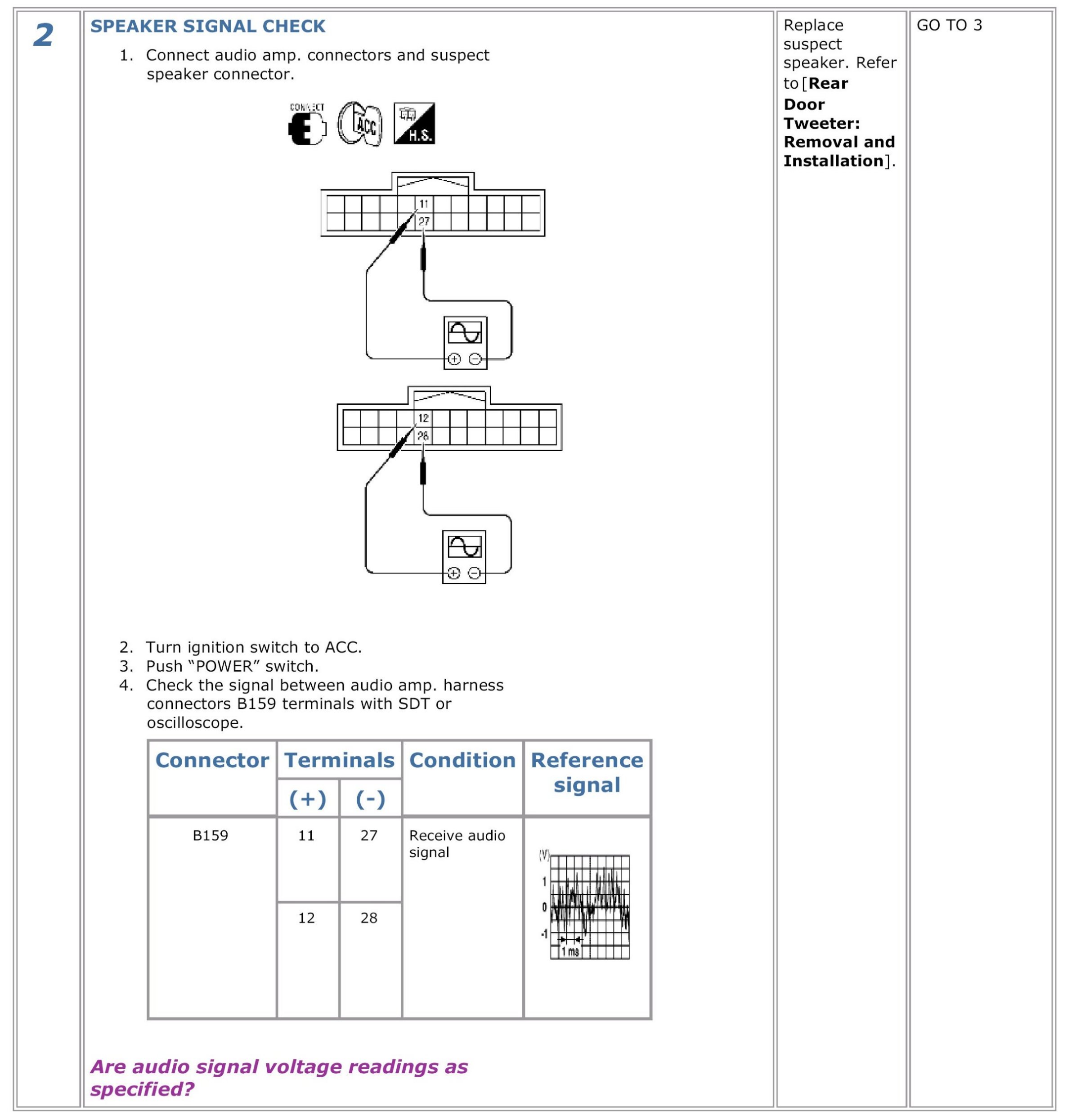

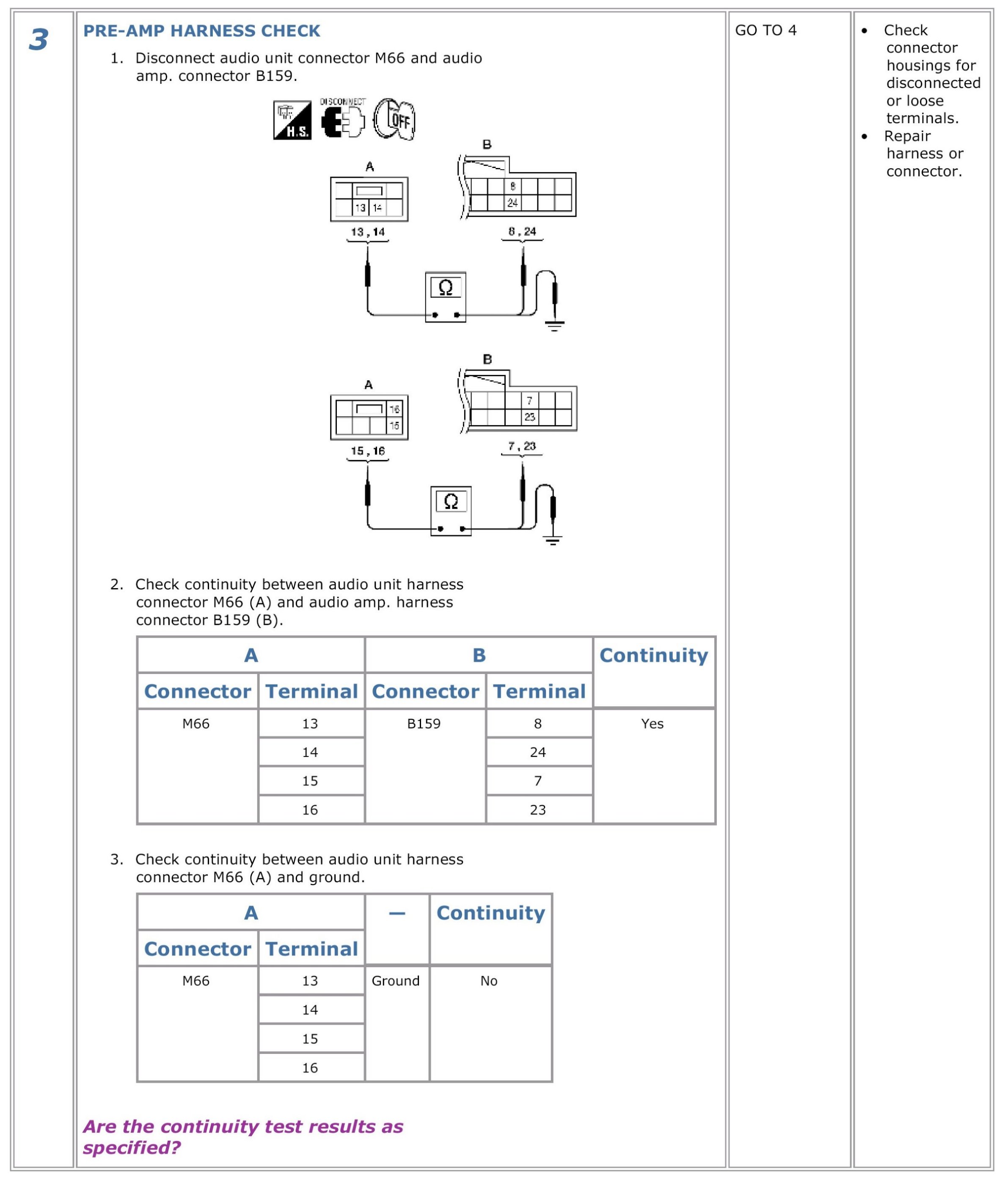

Diagnosis Procedure
