Amplifier: Service and Repair

Audio AMP: Removal And Installation

REMOVAL

1. Remove the RH front seat. Refer to [Front Seat: Removal and Installation].

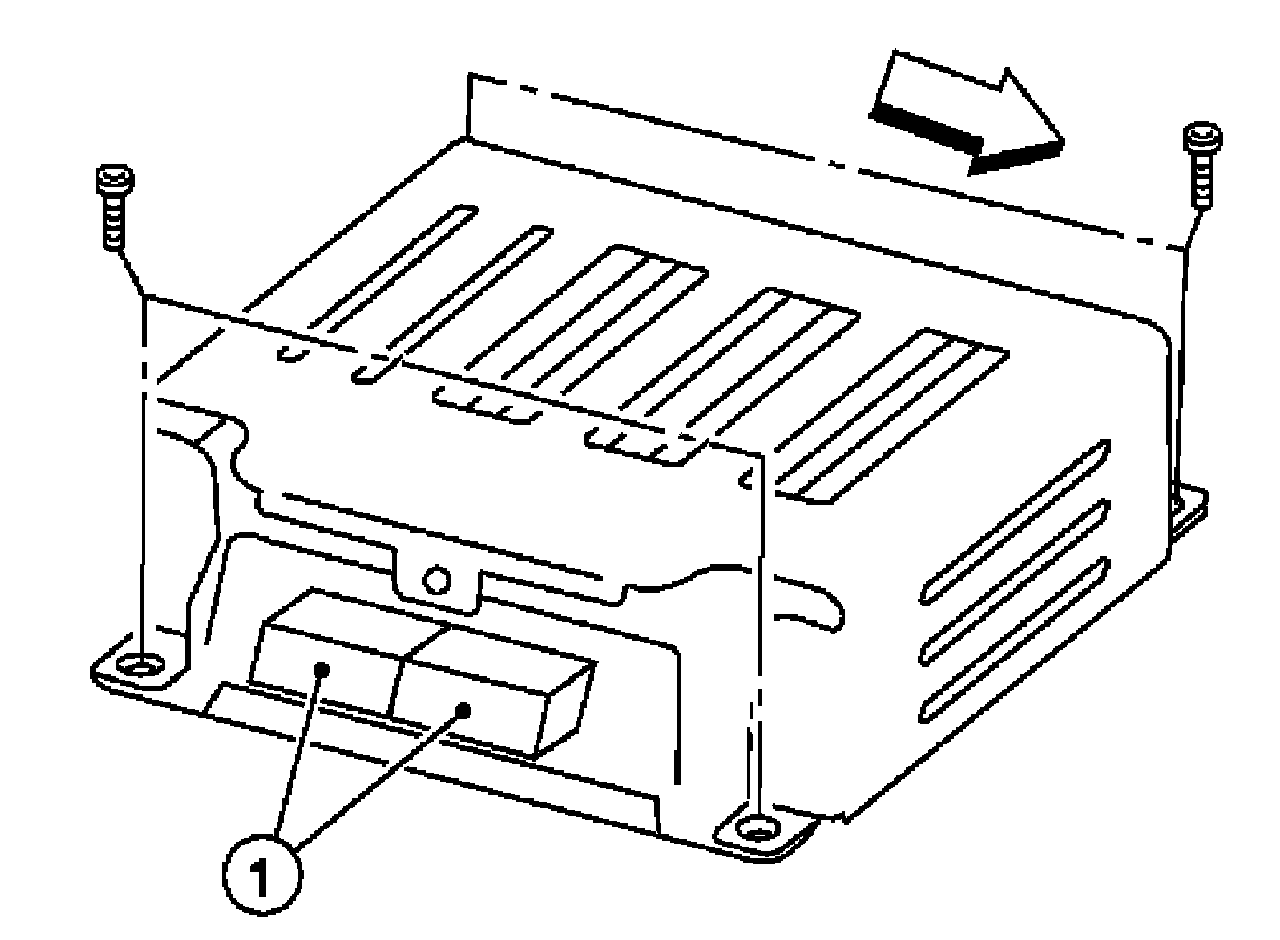

2. Remove the audio amp and kick shield screws.







3. Disconnect the audio amp connectors (1) and remove the audio amp.

INSTALLATION

Installation is in the reverse order of removal.
