Premium Audio - Crew Cab

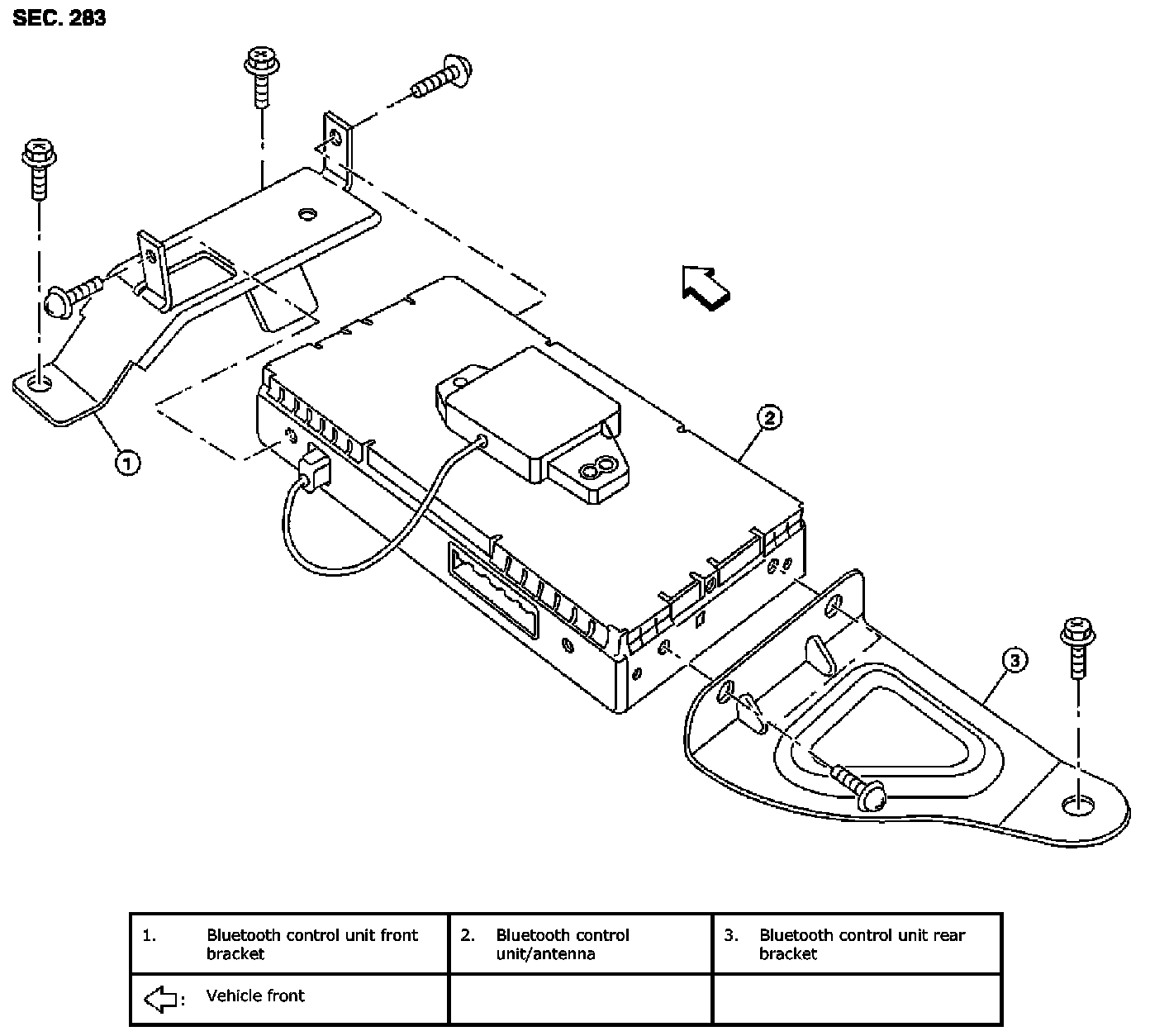

Bluetooth Control Unit: Removal And Installation







REMOVAL

1. Remove the RH front seat. Refer to [Front Seat: Removal and Installation].

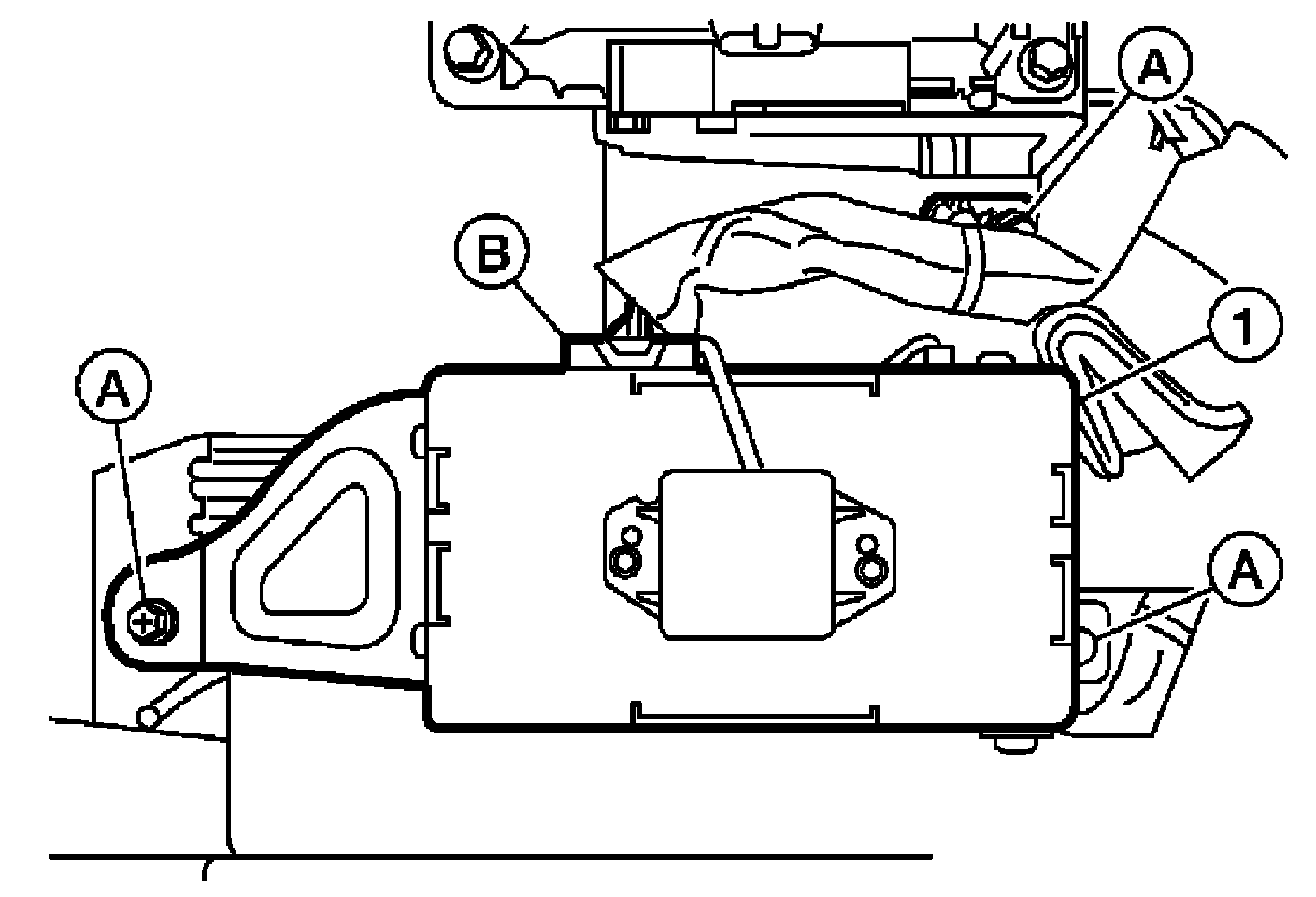

2. Disconnect the Bluetooth control unit harness connector (B).







3. Remove the Bluetooth control unit screws (A), then remove the Bluetooth control unit assembly.
4. Remove the Bluetooth control unit bracket screws and remove the Bluetooth control unit (1) front and rear brackets.

INSTALLATION

Installation is in the reverse order of removal.
