Premium Audio - Crew Cab

Microphone: Removal And Installation

REMOVAL

1. Remove the front roof console finisher. Refer to [Headlining: Removal and Installation].

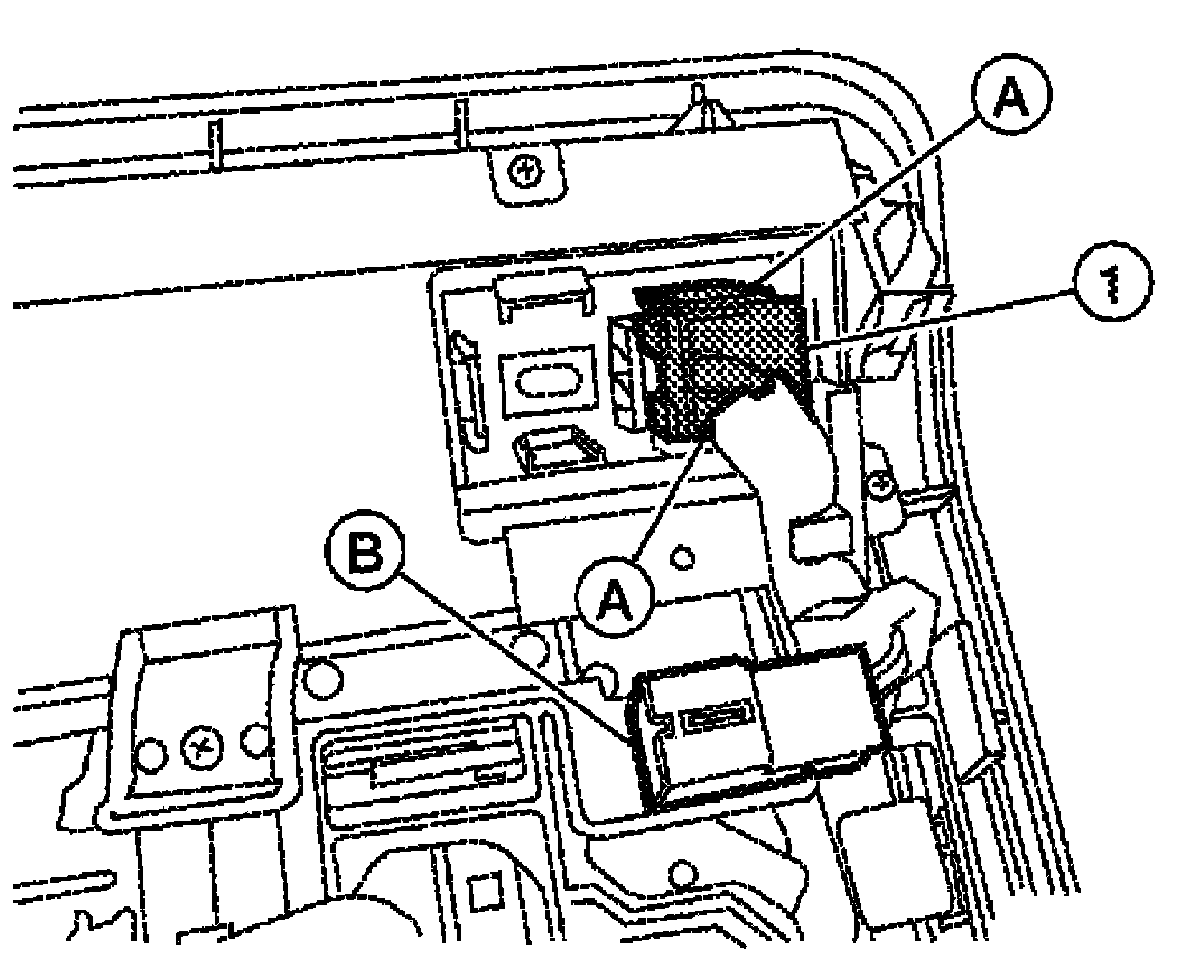

2. Detach the Bluetooth microphone (1) from the front console finisher tabs (A).







3. Detach the Bluetooth microphone connector (B) and remove the Bluetooth microphone (1).

INSTALLATION

Installation is in the reverse order of removal.
