Vehicle Security Indicator Circuit Check
Vehicle Security Indicator Circuit CheckDescription
- Vehicle security indicator is built in combination meter.
- Immobilizer system and vehicle security system conditions are indicated by blink or illumination of vehicle security indicator.
Component Function Check

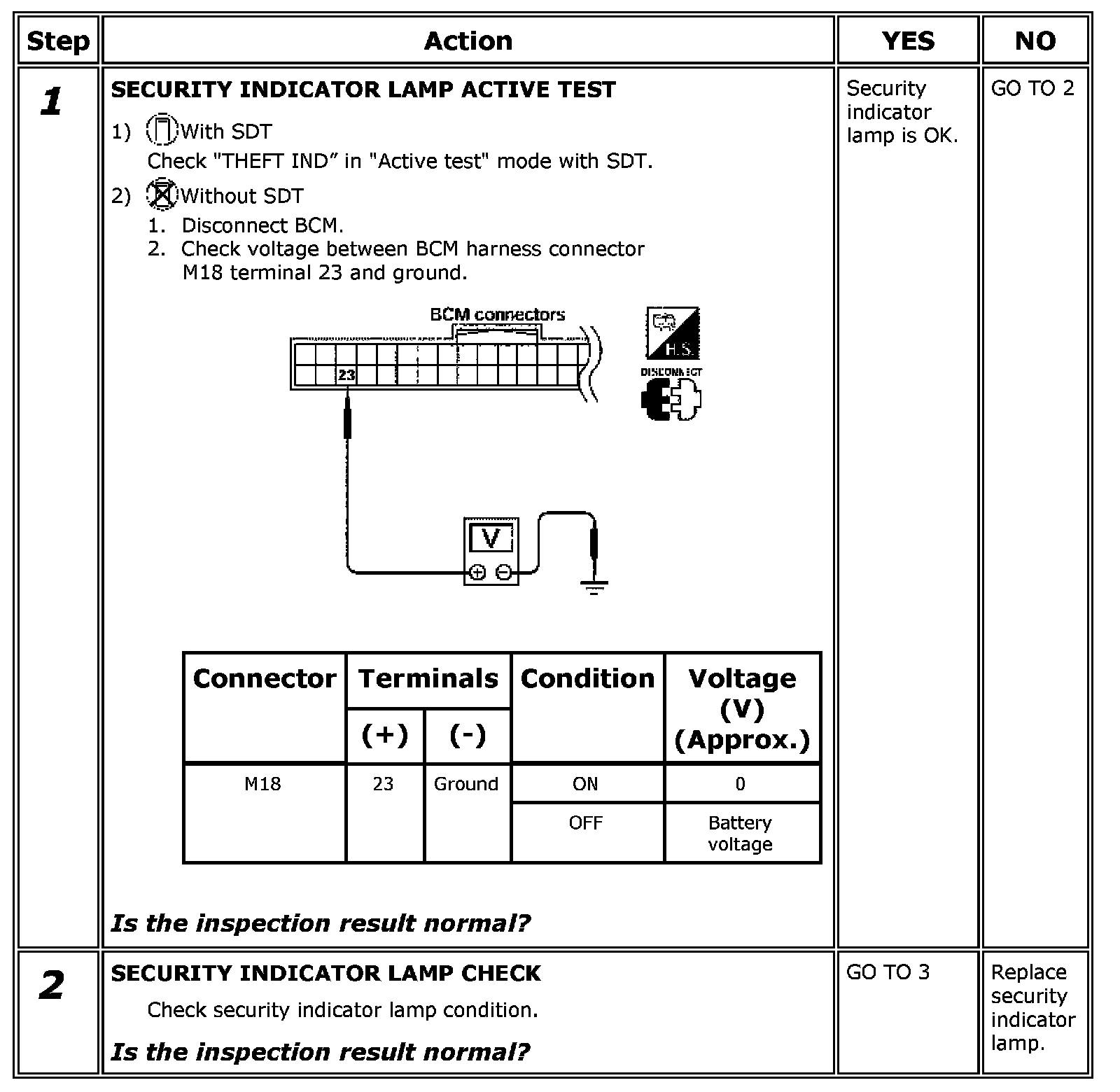

Step 1:
Diagnosis Procedure
Step 1-2:

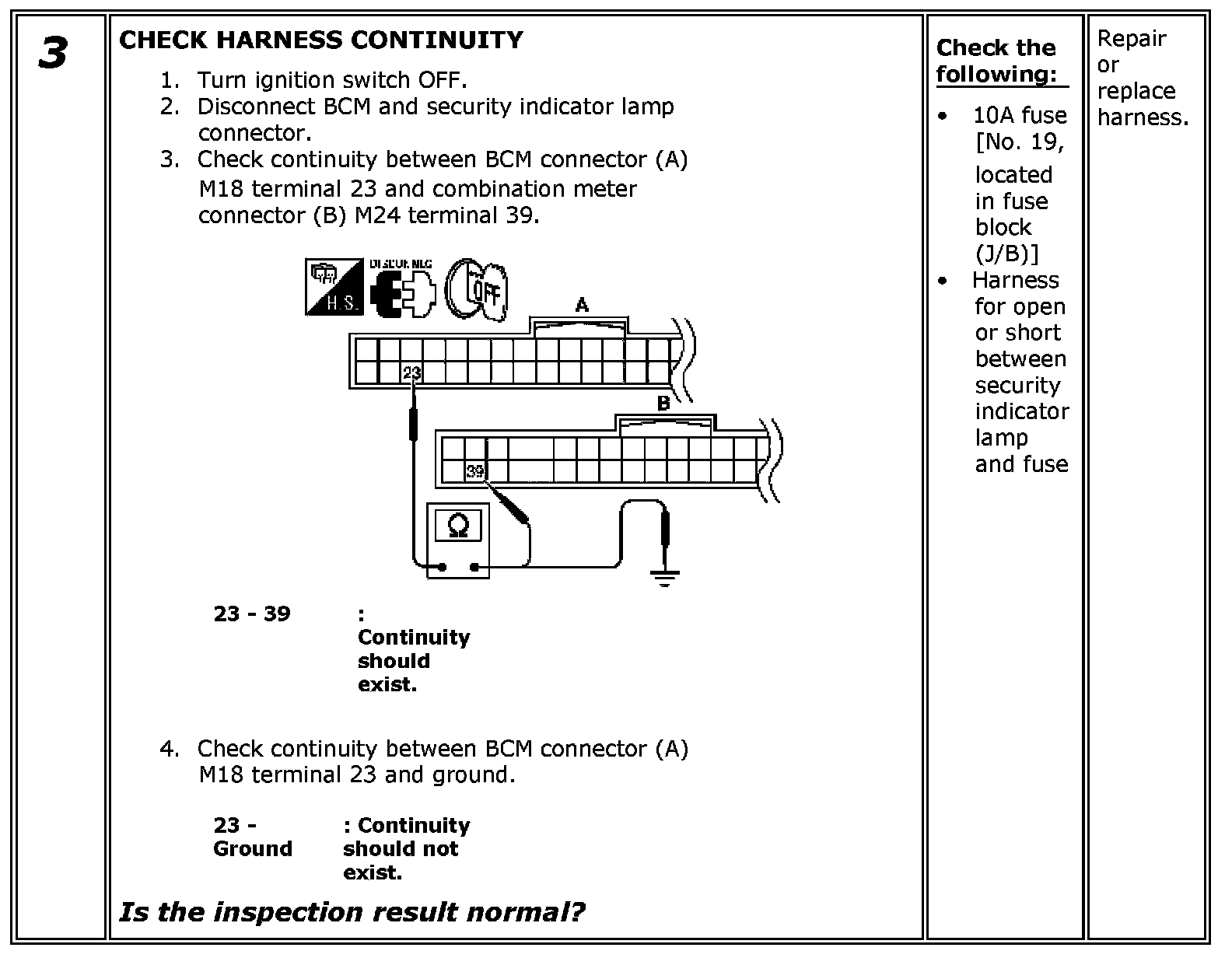

Step 3:
