Key Cylinder Switch Circuit Check (Driver Side)

Key Cylinder Switch Circuit Check [Driver Side]

Description
The main power window and door lock/unlock switch detects condition of the door key cylinder switch and transmits to BCM as the LOCK or UNLOCK signal.

Component Function Check

Step 1:

Diagnosis Procedure

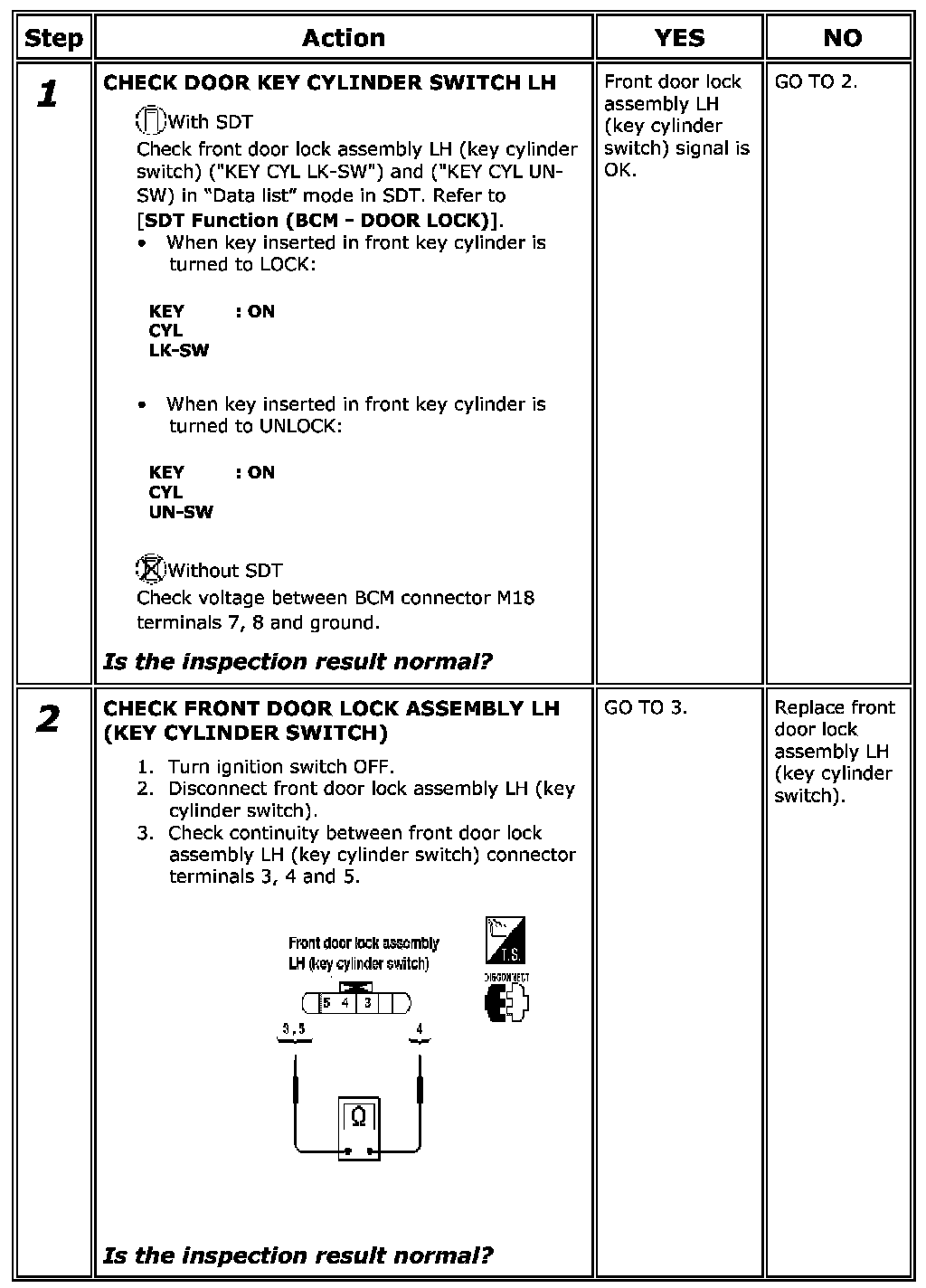

Step 1-2:

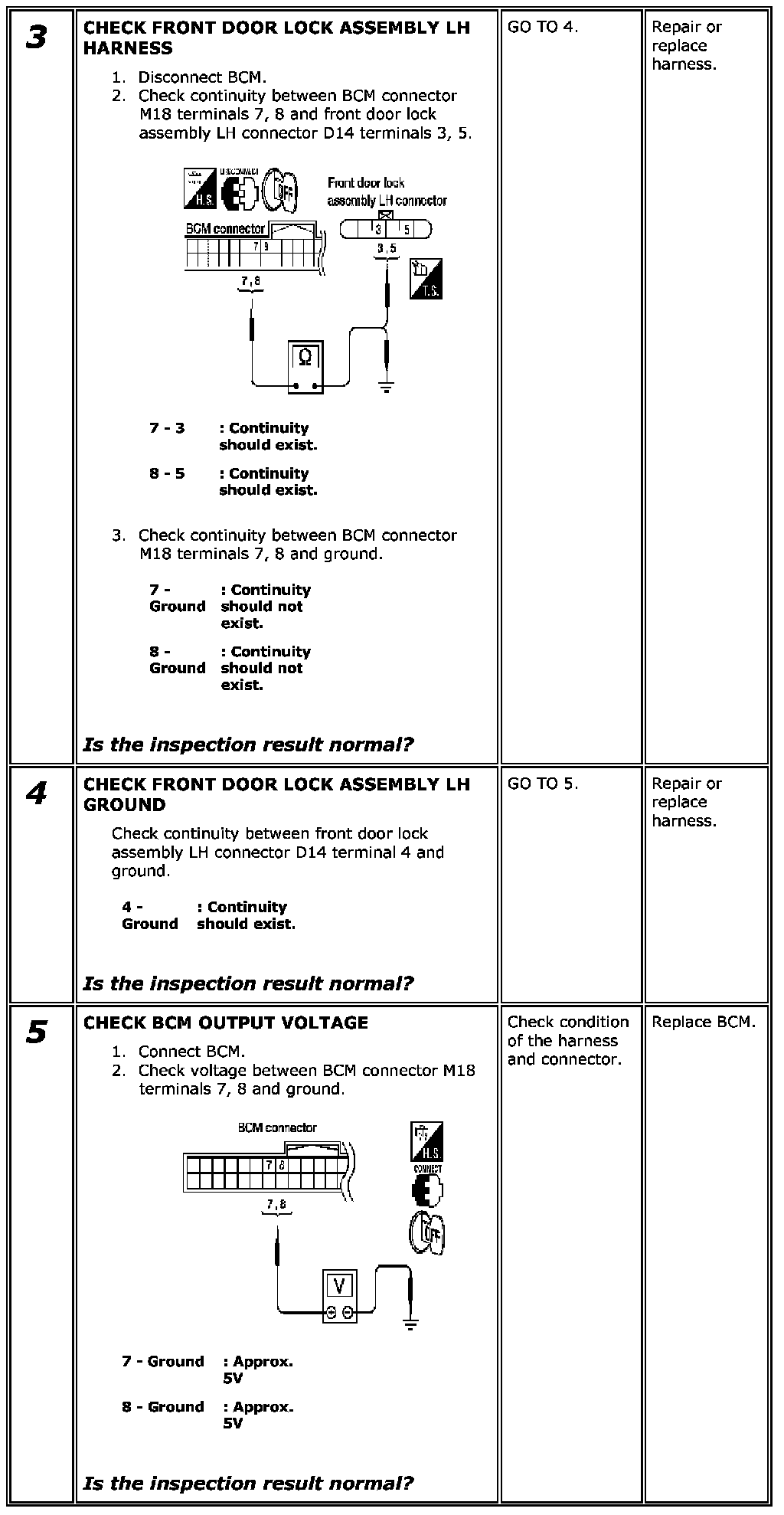

Step 3-5:
