P2103
P2100, P2103 Throttle Control Motor RelayComponent Description
Power supply for the throttle control motor is provided to the ECM via throttle control motor relay. The throttle control motor relay is ON/OFF controlled by the ECM. When the ignition switch is turned ON, the ECM sends an ON signal to throttle control motor relay and battery voltage is provided to the ECM. When the ignition switch is turned OFF, the ECM sends an OFF signal to throttle control motor relay and battery voltage is not provided to the ECM.
On Board Diagnosis Logic
These self-diagnoses have one trip detection logic.
P2100-P2103:
FAIL-SAFE MODE
When the malfunction is detected, ECM enters fail-safe mode and the MIL lights up.
Engine operating condition in fail-safe mode
ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5 degrees) by the return spring.
DTC Confirmation Procedure
NOTE: If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.
PROCEDURE FOR DTC P2100
With SDT
1. Turn ignition switch ON and wait at least 2 seconds.
2. Start engine and let it idle for 5 seconds.
3. Check DTC.
4. If DTC is detected, go to [P2100, P2103 Throttle Control Motor Relay].
With GST
Follow the procedure "With SDT" above.
PROCEDURE FOR DTC P2103
TESTING CONDITION: Before performing the following procedure, confirm that battery voltage is more than 8 V.
With SDT
1. Turn ignition switch ON and wait at least 1 second.
2. Check DTC.
3. If DTC is detected, go to [P2100, P2103 Throttle Control Motor Relay].
With GST
Follow the procedure "With SDT" above.

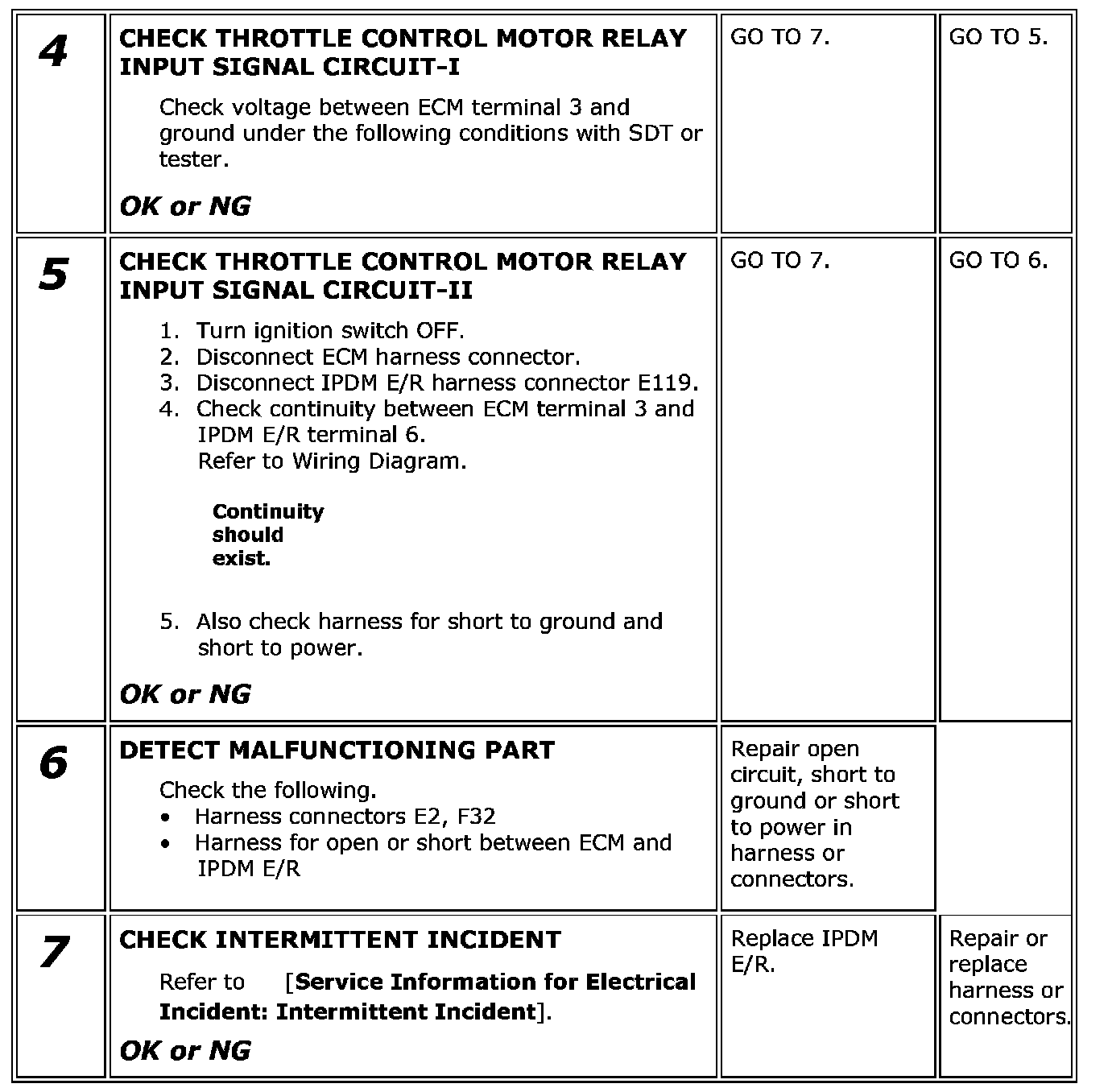

Diagnosis Procedure

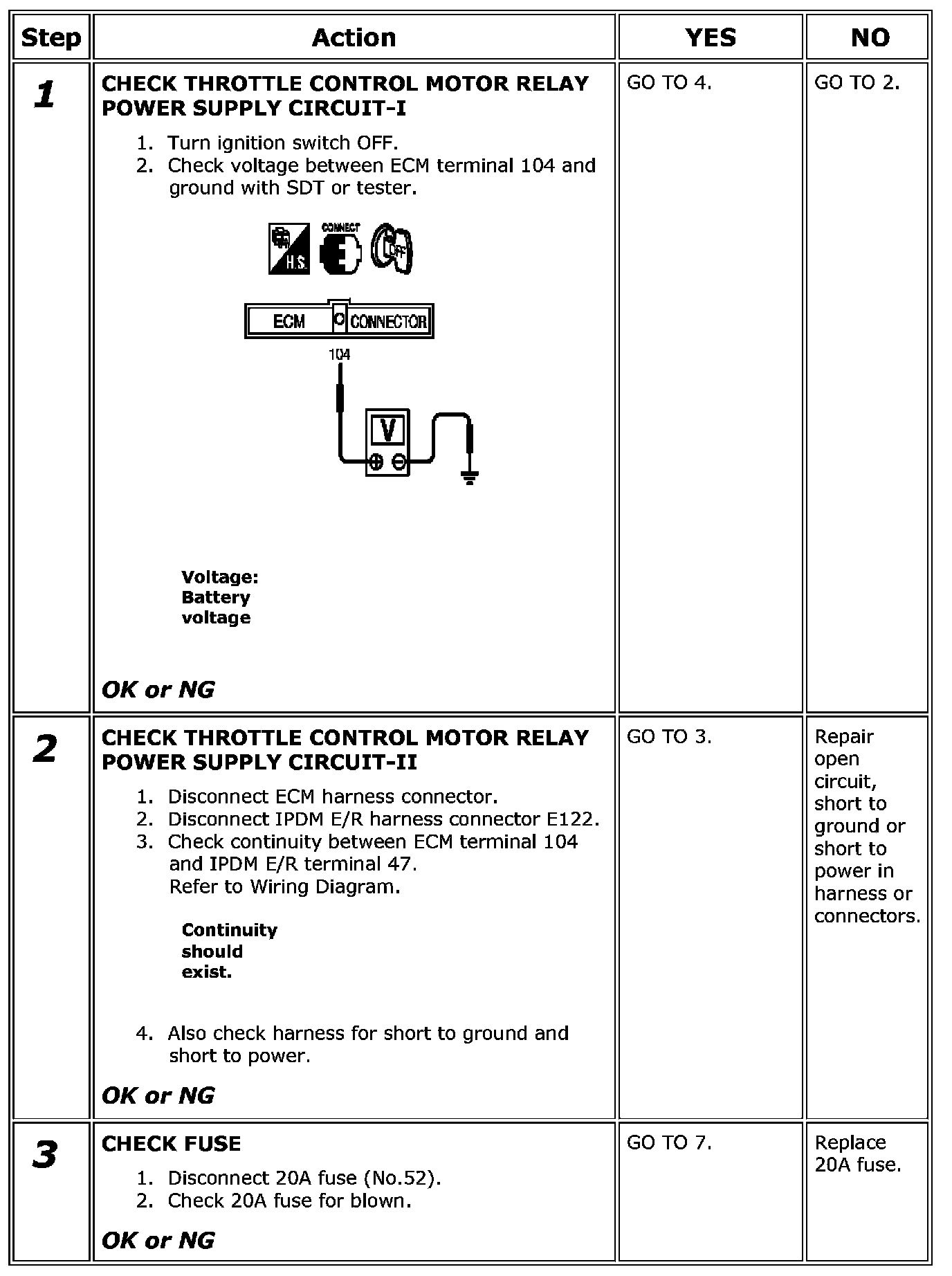

Step 1-3:
