P1844

P1844 Relay

Description
The differential lock solenoid relay is an integral part of the differential lock control unit.

DTC Logic

P1844:

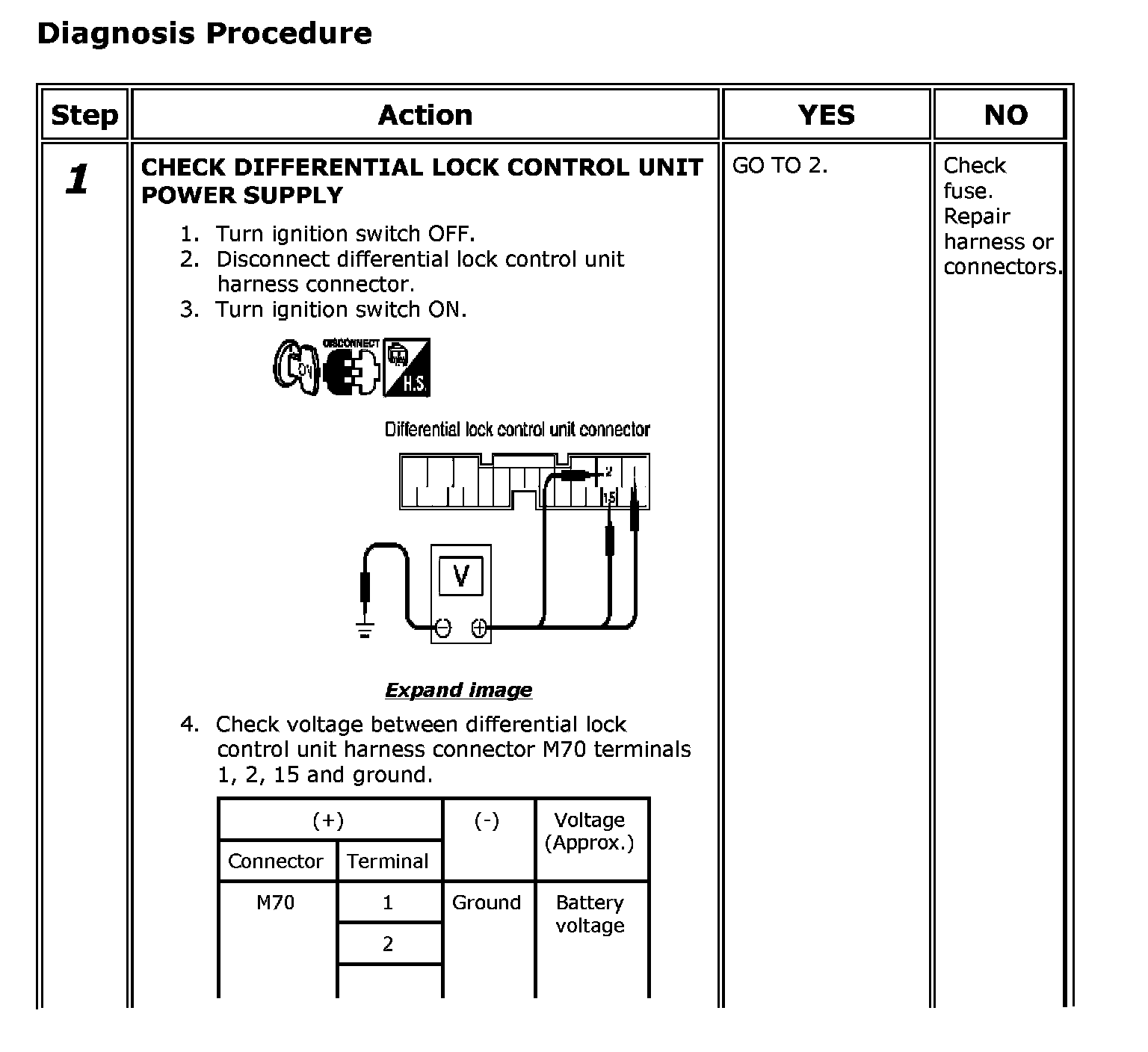

Diagnosis Procedure

Step 1:




Step 1-2:
