P1838

P1838 On Switch

Description
The differential lock mode switch sends differential lock ON/OFF request signals to the differential lock control unit.

DTC Logic

P1838:

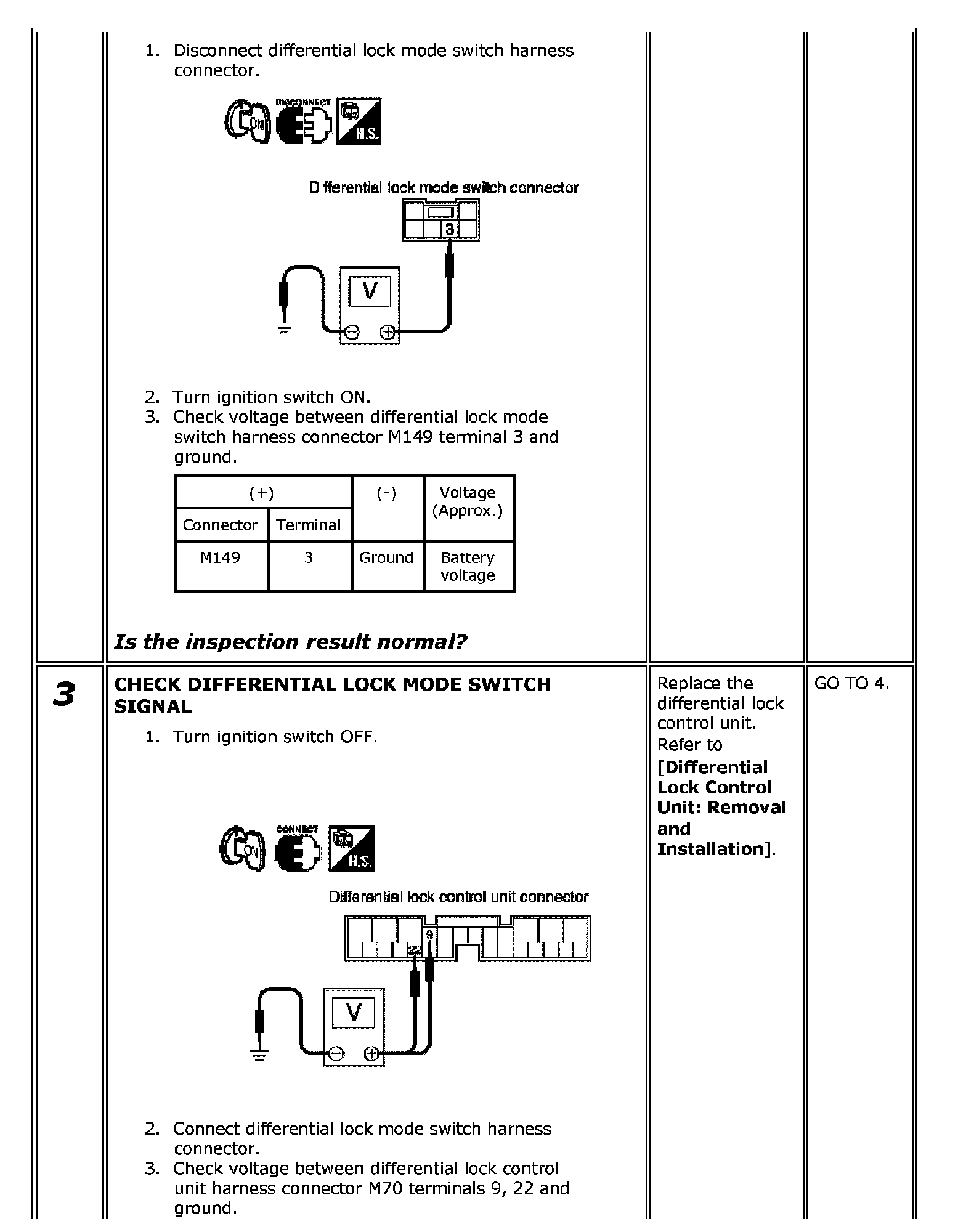

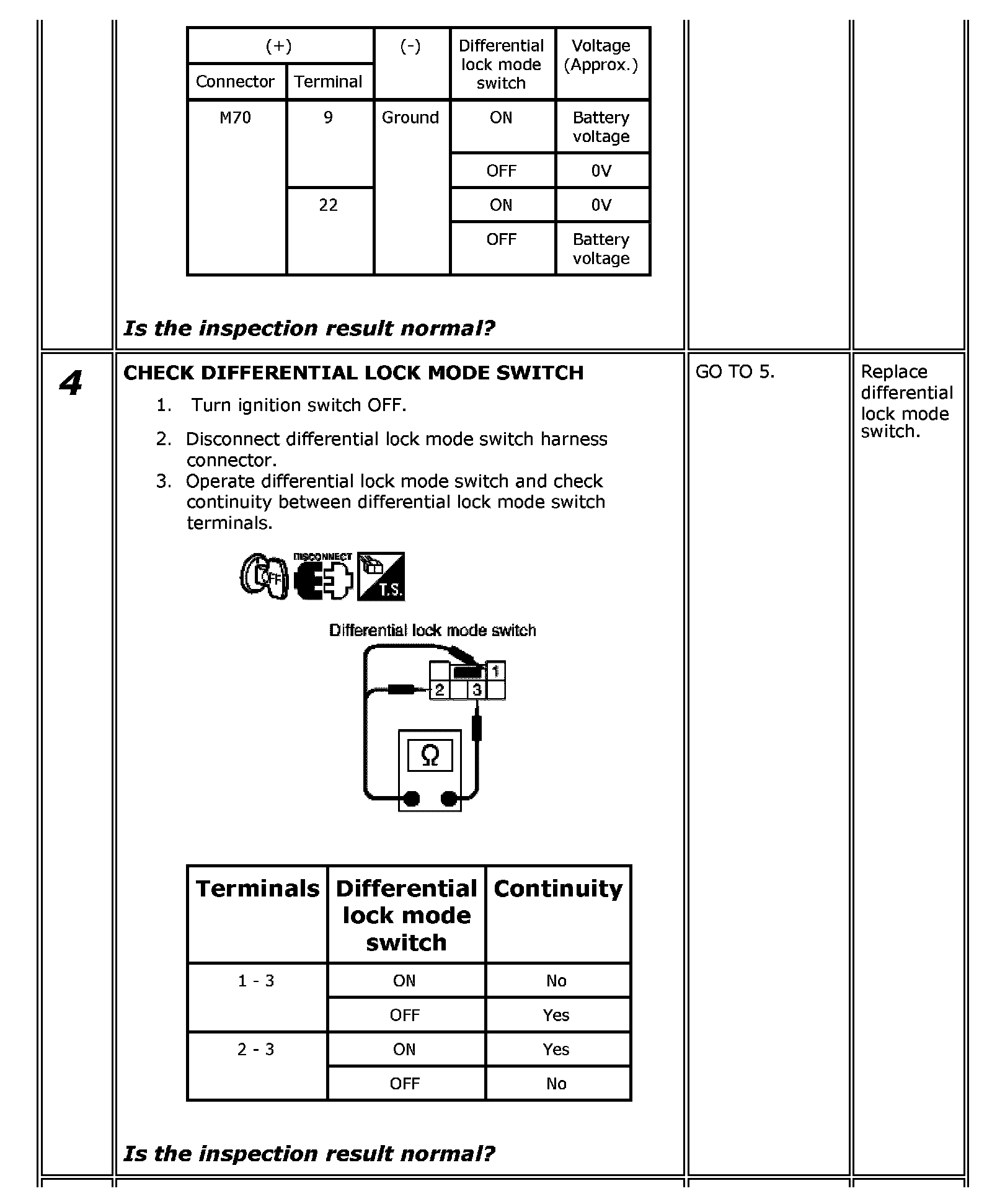

Diagnosis Procedure

Step 1-2:

Step 2-3:

Step 3-4:

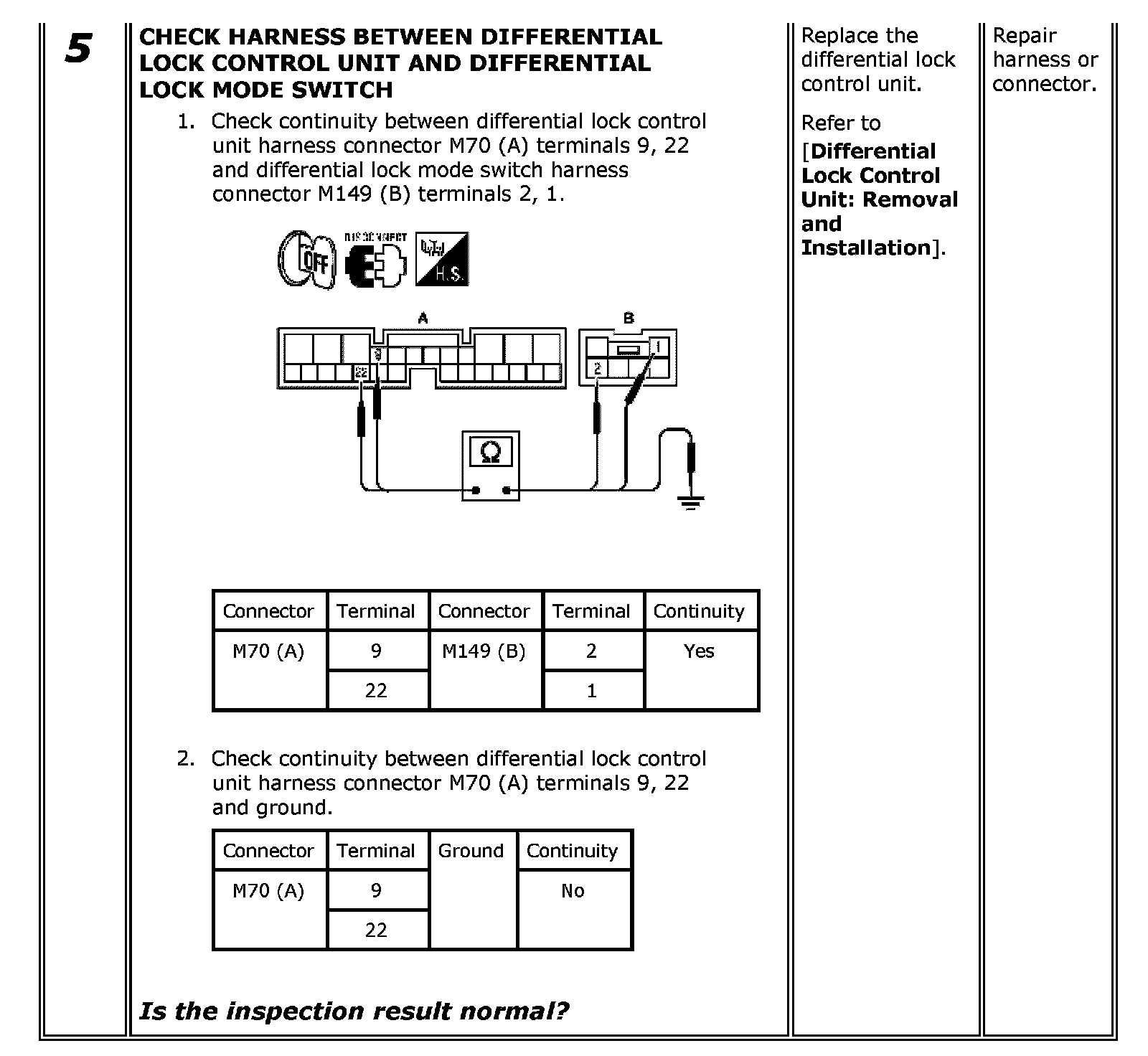

Step 5:
