P1818

P1818 Actuator Position Switch

Description
The actuator position switch detects the current actuator motor range. DTC P1818 will set if either of the following occur:
^ Improper signal from actuator position switch is input due to open or short circuit.
^ Malfunction is detected in actuator position switch.

DTC Logic

DTC DETECTION LOGIC





DTC CONFIRMATION PROCEDURE

Step 1:

Diagnosis Procedure

Step 1:

Step 1:

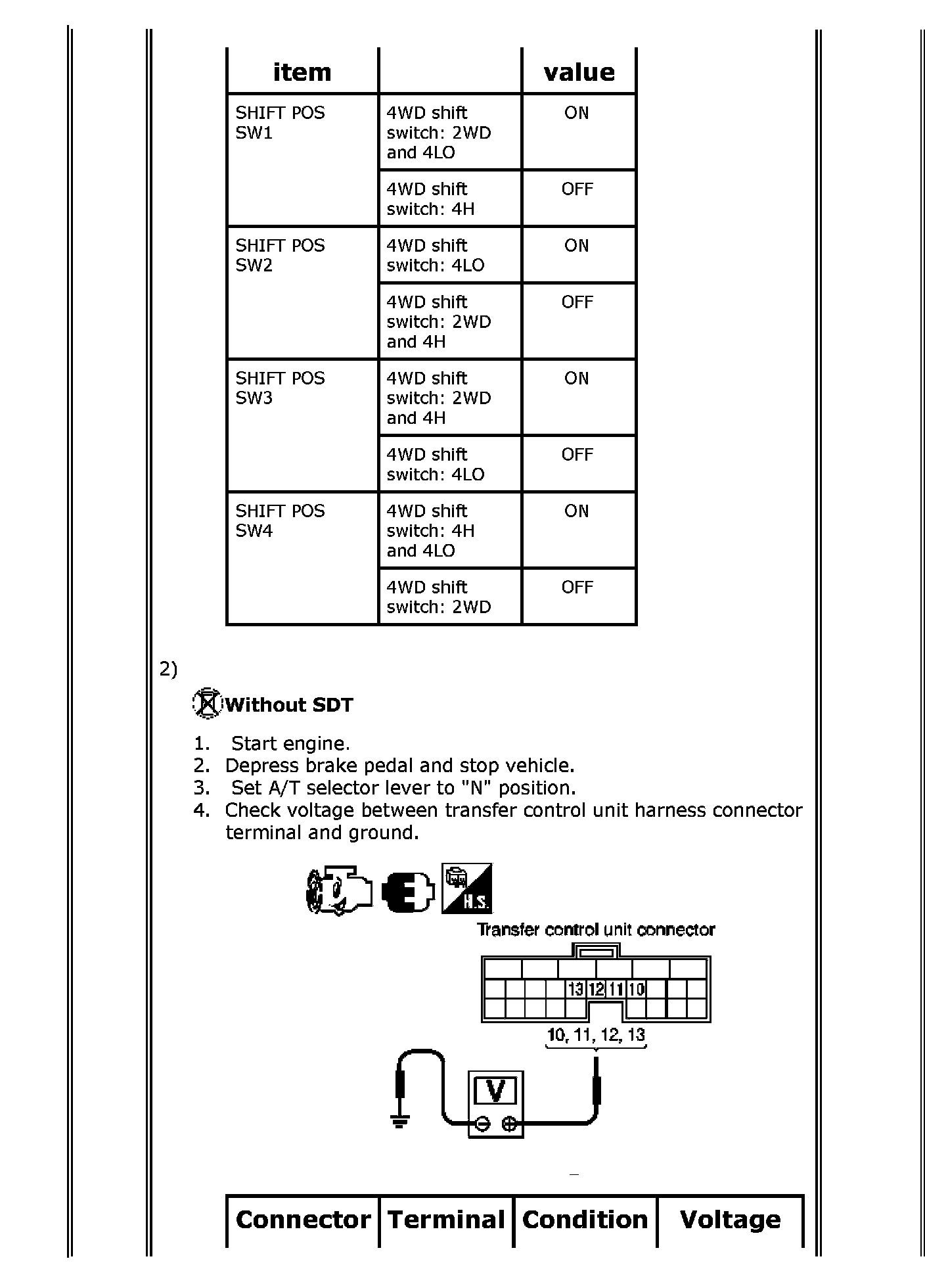

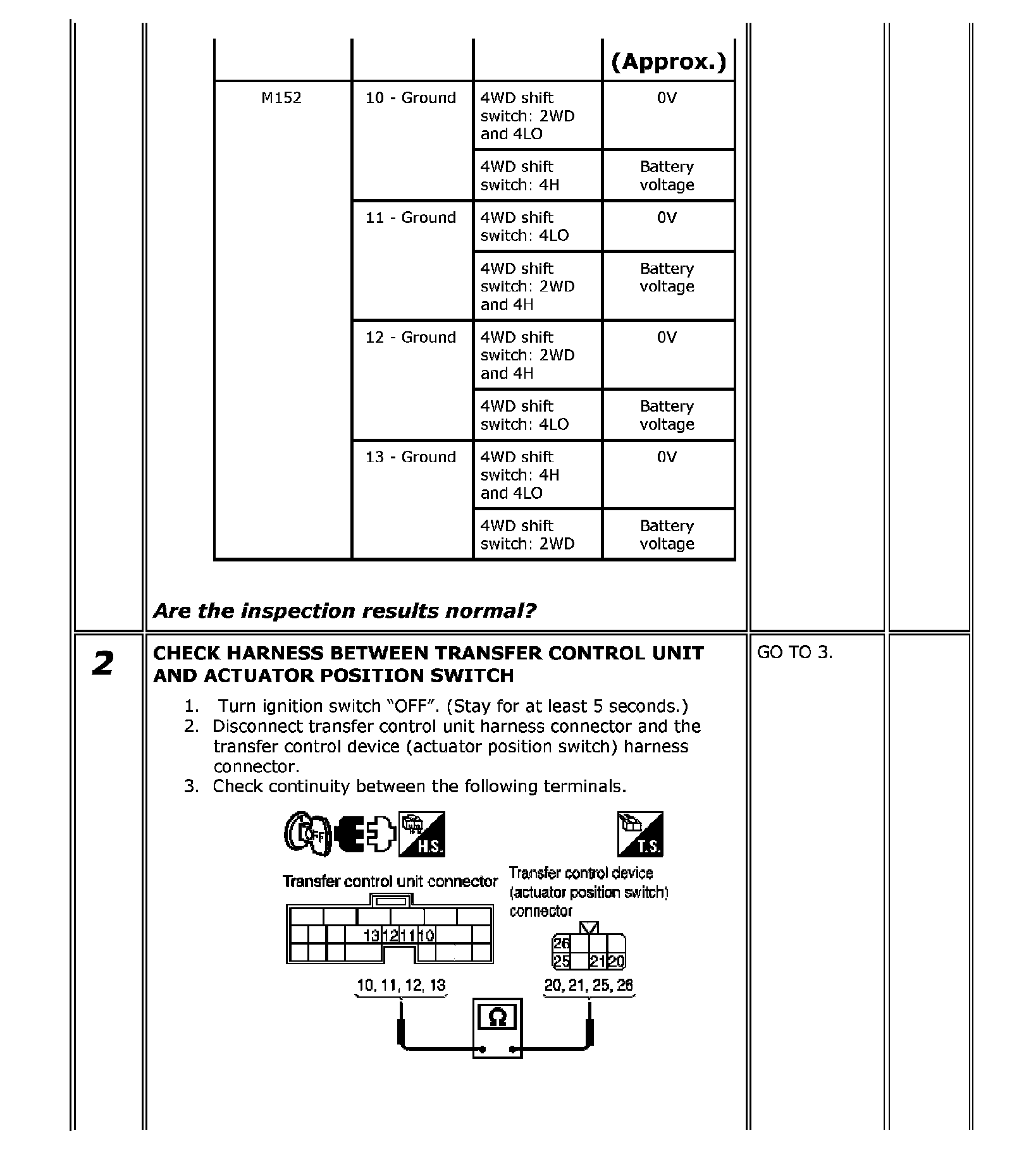

Steps 1-2:

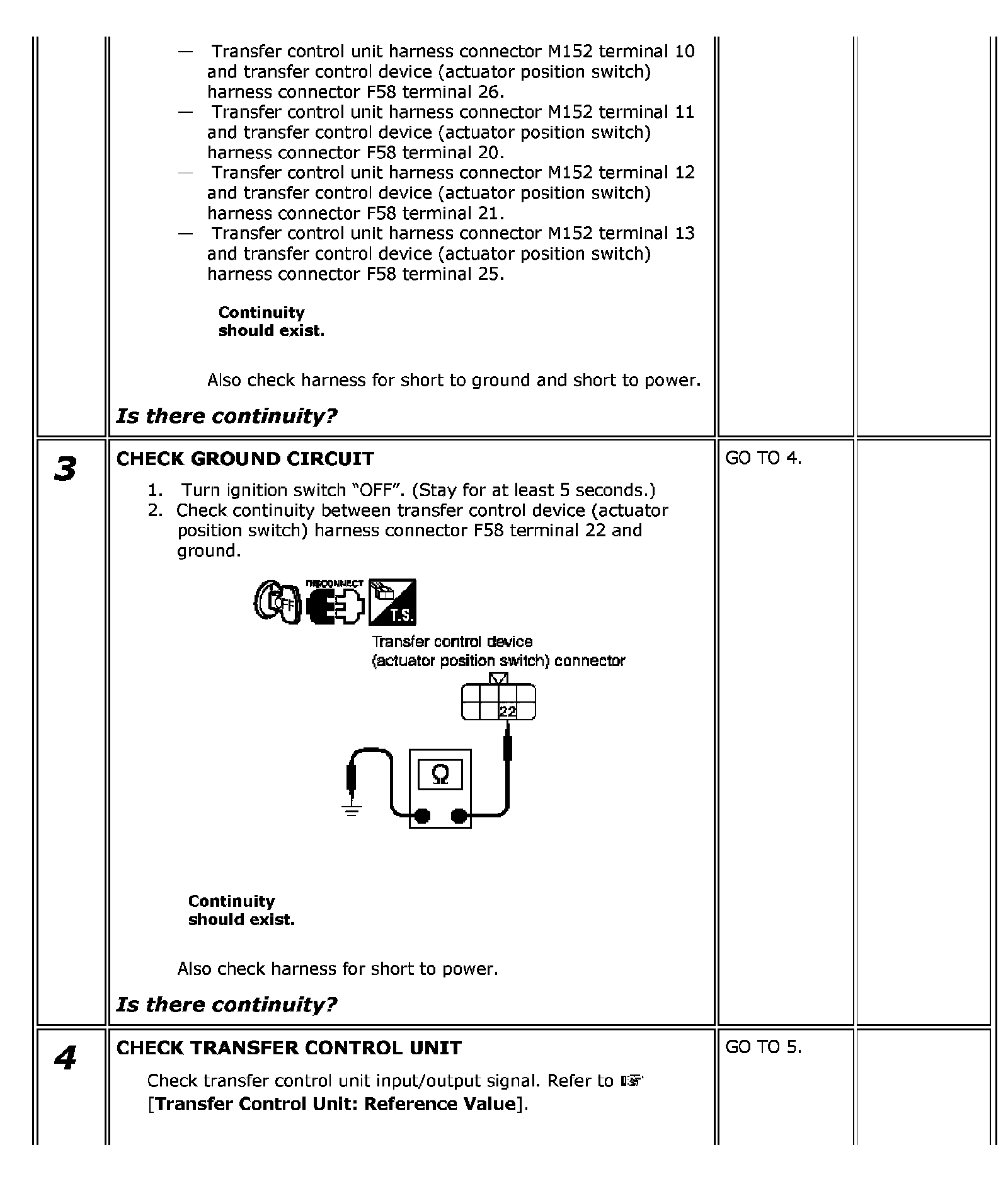

Steps 2-4:

Steps 4-5:
