P1808

P1808 Vehicle Speed Sensor (ABS)

Description
The ABS actuator and electric unit (control unit) transmits a vehicle speed signal via CAN communication to the transfer control unit. DTC P1808 sets when a malfunction is detected in the vehicle speed signal that is output from the ABS actuator and electric unit (control unit) or an improper signal is input while driving.

DTC Logic

DTC DETECTION LOGIC





DTC CONFIRMATION PROCEDURE

Step 1:

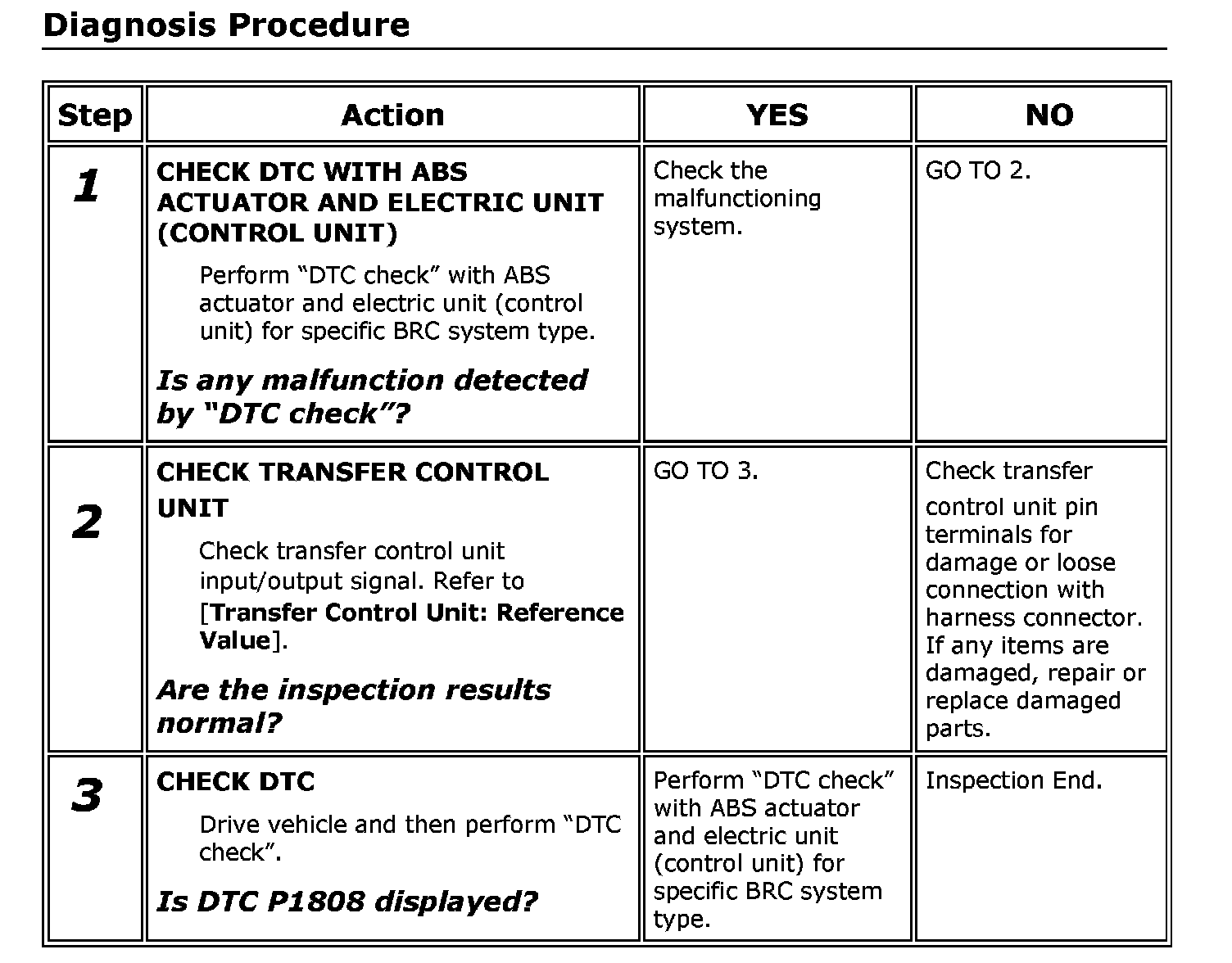

Diagnosis Procedure

Steps 1-3:
