P1805

P1805 Brake Switch

Description
Brake switch signal is applied to the ECM through the stop lamp switch when the brake pedal is depressed.This signal is used mainly to decrease the engine speed when the vehicle is driving.

On Board Diagnosis Logic
The MIL will not light up for this self-diagnosis.

P1805:

FAIL-SAFE MODE
When the malfunction is detected, the ECM enters fail-safe mode.

Fail-Safe Mode:

DTC Confirmation Procedure

NOTE: If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.

WITH SDT
1. Turn ignition switch ON.
2. Fully depress the brake pedal for at least 5 seconds.
3. Erase the 1st trip DTC with SDT.
4. Check 1st trip DTC.
5. If 1st trip DTC is detected, go to [P1805 Brake Switch].

WITH GST
Follow the procedure "WITH SDT" above.

Diagnosis Procedure

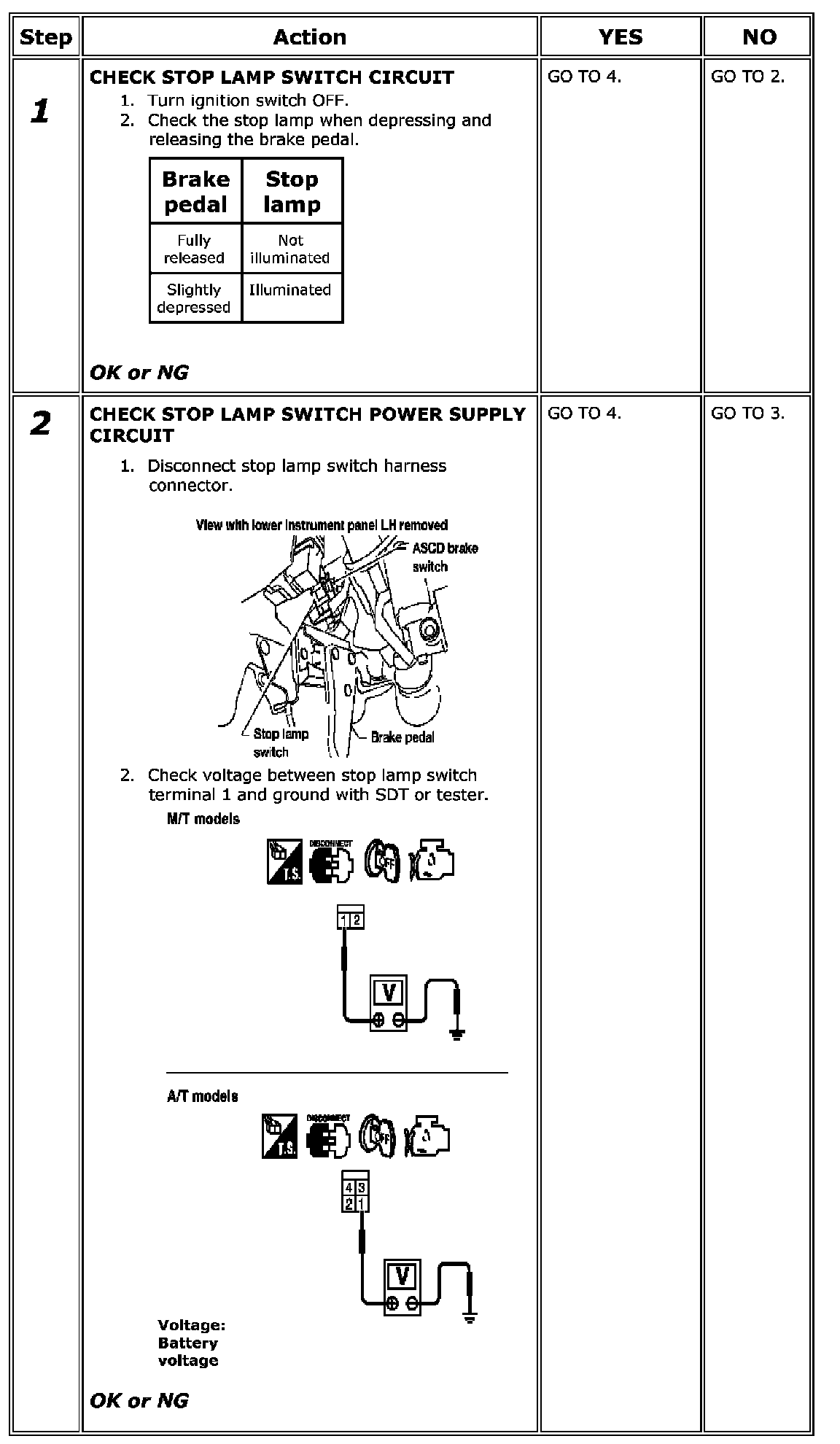

Step 1-2:

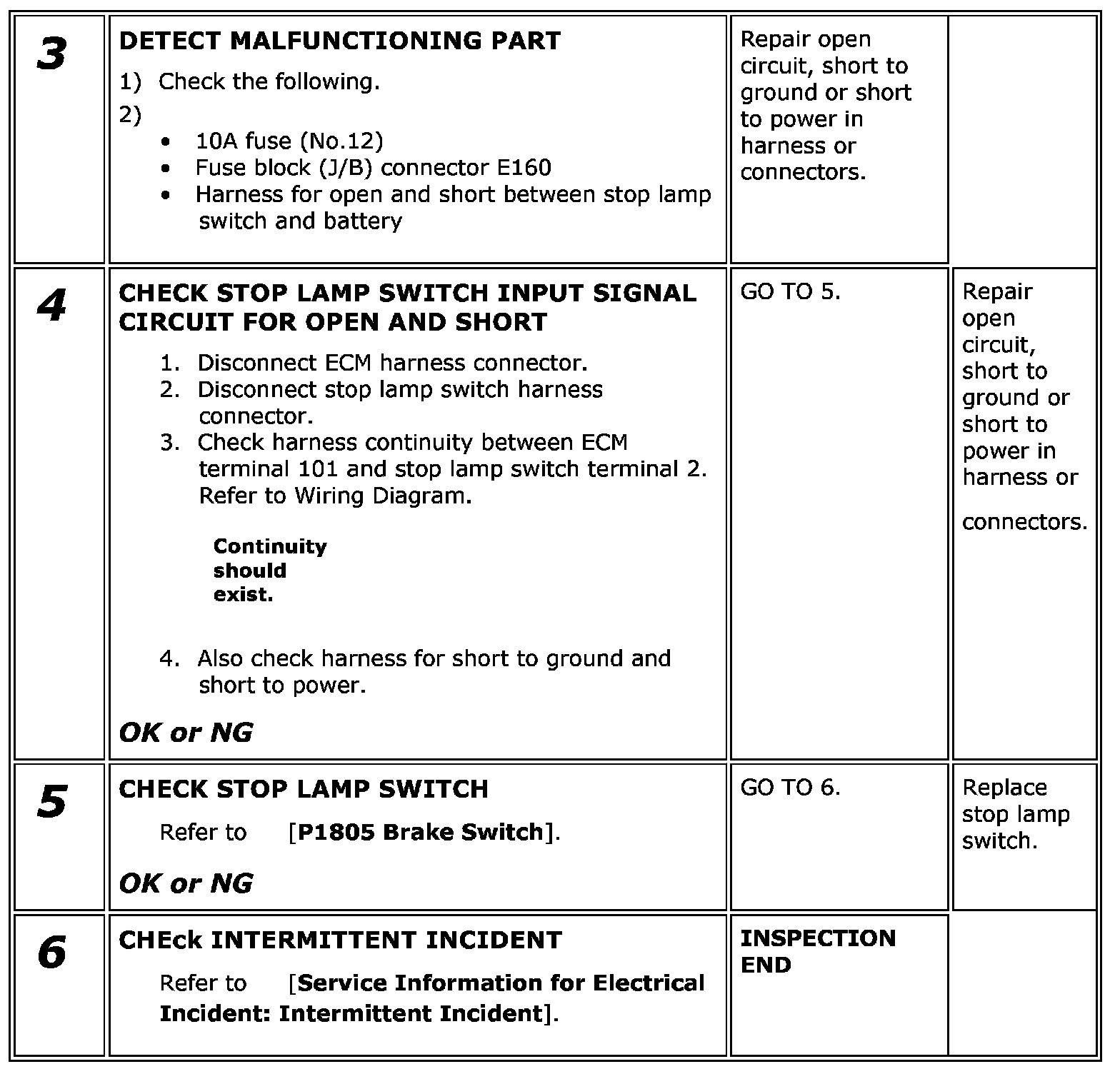

Step 3-6:

Component Inspection

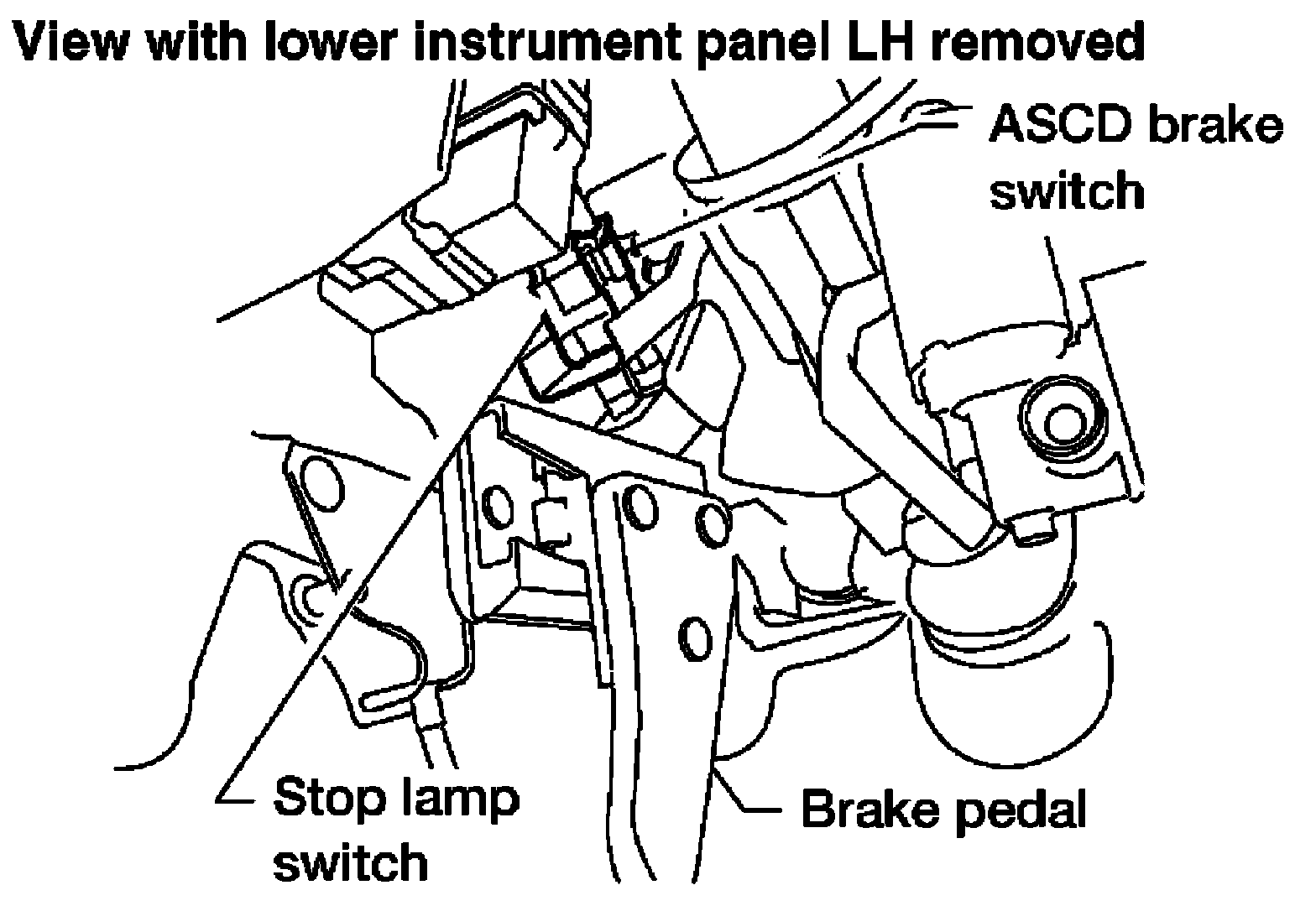

STOP LAMP SWITCH
1. Disconnect stop lamp switch harness connector.






2. Check continuity between stop lamp switch terminals 1 and 2 under the following conditions.






If NG, adjust stop lamp switch installation and perform step 2 again.
