P1802

P1802 - P1804, P1809 Transfer Control Unit

Description
The transfer control unit controls the transfer control device which controls shifts between 4H and 4LO and between 2WD and 4WD. A DTC may set when any of the following occur:
^ Malfunction is detected in the memory (RAM) system of transfer control unit.
^ Malfunction is detected in the memory (ROM) system of transfer control unit.
^ Malfunction is detected in the memory (EEPROM) system of transfer control unit.
^ AD converter system of transfer control unit is malfunctioning.

DTC Logic

DTC DETECTION LOGIC





DTC CONFIRMATION PROCEDURE

Step 1:

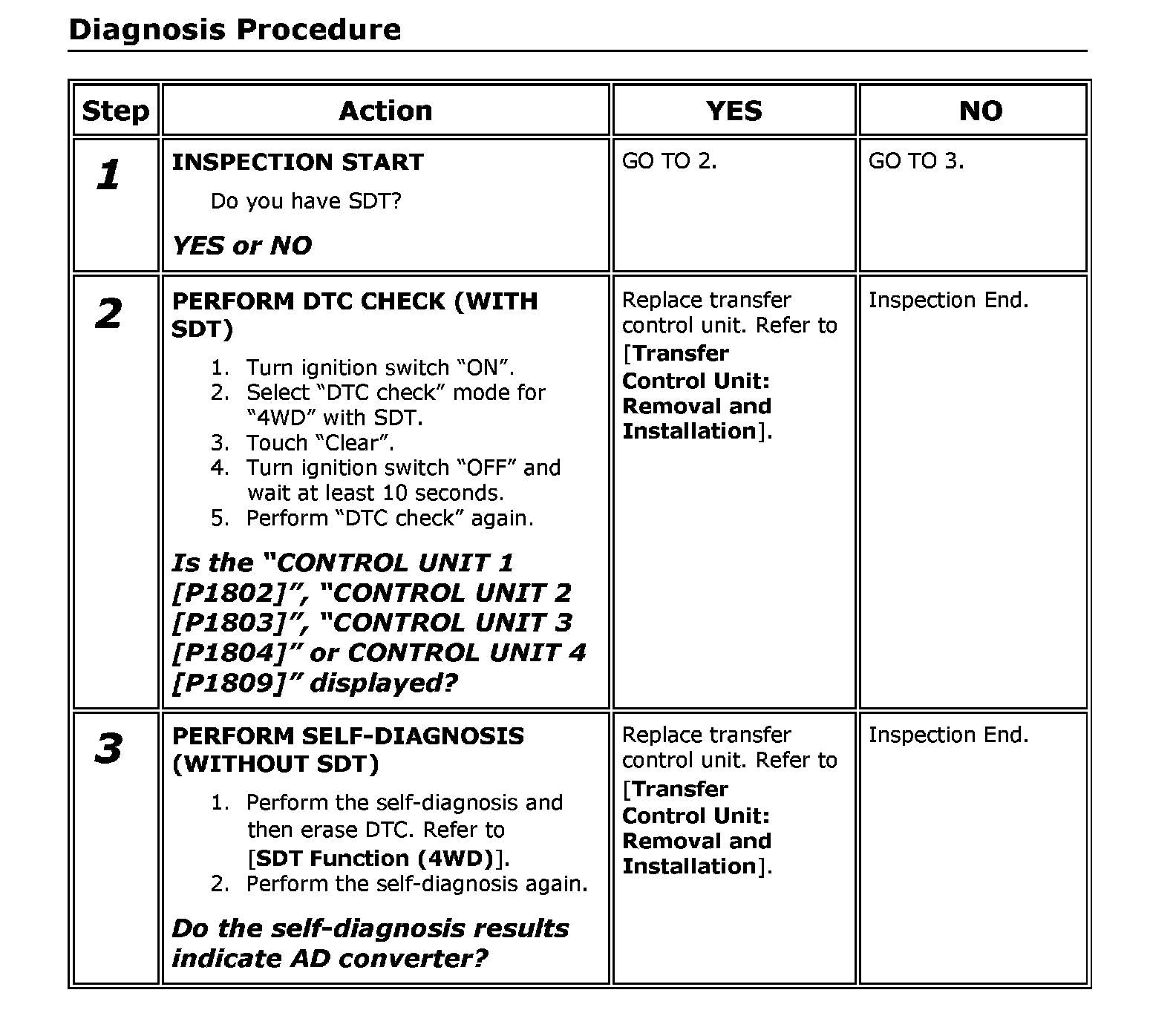

Diagnosis Procedure

Steps 1-3:
