P1552

P1551, P1552 Battery Current Sensor

Component Description

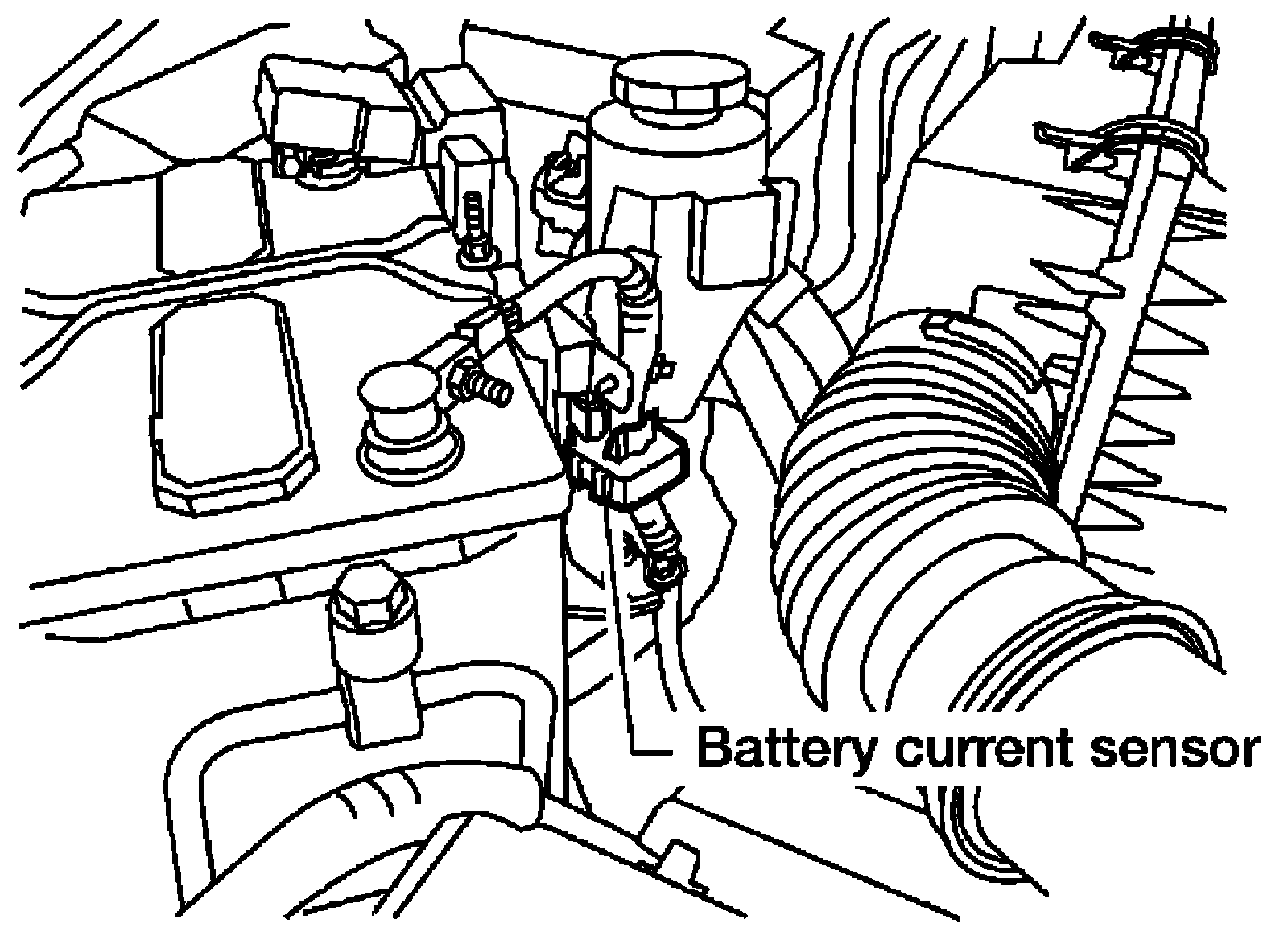

The power generation voltage variable control enables fuel consumption to be decreased by reducing the engine load which is caused by the power generation of the generator. The battery current sensor is installed to the battery cable at the negative terminal. The sensor measures the charging/discharging current of the battery. Based on the sensor signal, ECM judges whether or not the power generation voltage variable control is performed.When performing the power generation voltage variable control, ECM calculates the target power generation voltage based on the sensor signal. And ECM sends the calculated value as the power generation command value to IPDM E/R.






CAUTION: Never connect the electrical component or the ground wire directly to the battery terminal. The connection causes the malfunction of the power generation voltage variable control, and then the battery discharge may occur.

On Board Diagnosis Logic
The MIL will not light up for these diagnosis.

NOTE: If DTC P1551 or P1552 is displayed with DTC P0643, first perform the trouble diagnosis for DTC P0643. P0643

P1551-P1552:






DTC Confirmation Procedure
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.

TESTING CONDITION: Before performing the following procedure, confirm that battery voltage is more than 10 V with ignition switch ON

WITH SDT
1. Turn ignition switch ON and wait at least 10 seconds.
2. Check 1st trip DTC.
3. If 1st trip DTC is detected, go to [P1551, P1552 Battery Current Sensor].

WITH GST
Follow the procedure "WITH SDT" above.

Diagnosis Procedure

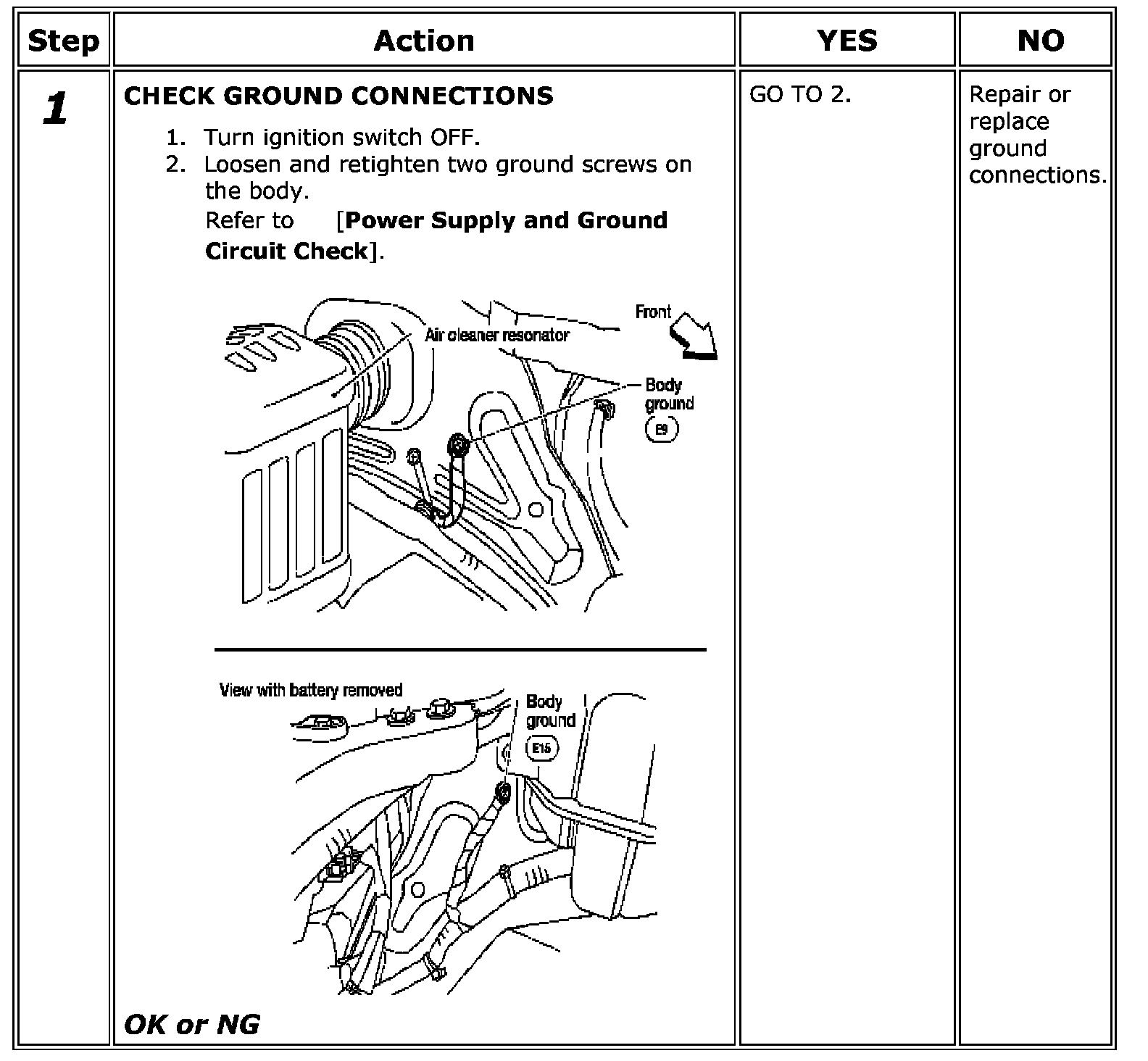

Step 1:

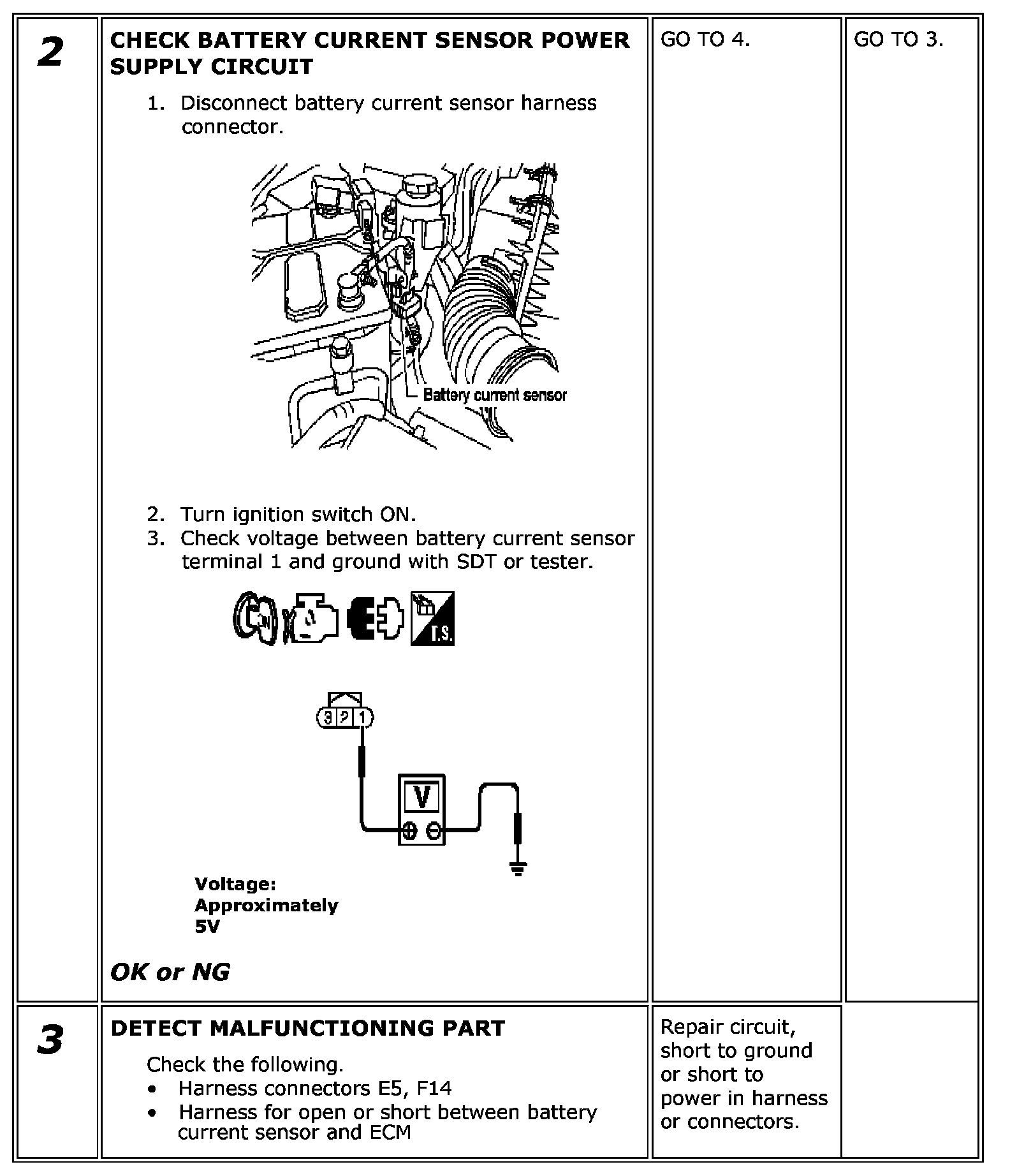

Step 2-3:

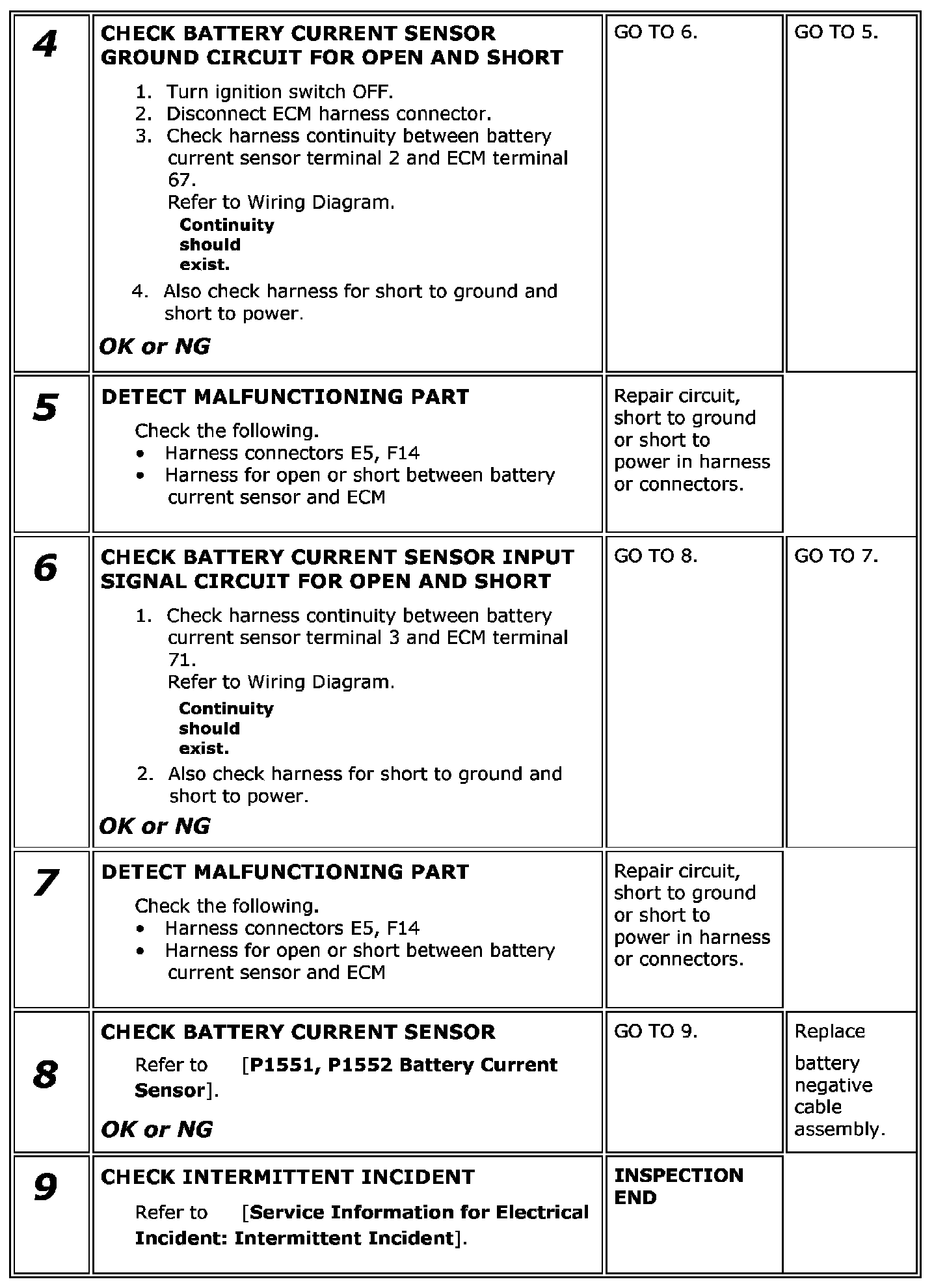

Step 4-9:






Component Inspection

BATTERY CURRENT SENSOR1
1. Reconnect harness connectors disconnected.
2. Disconnect battery negative cable.

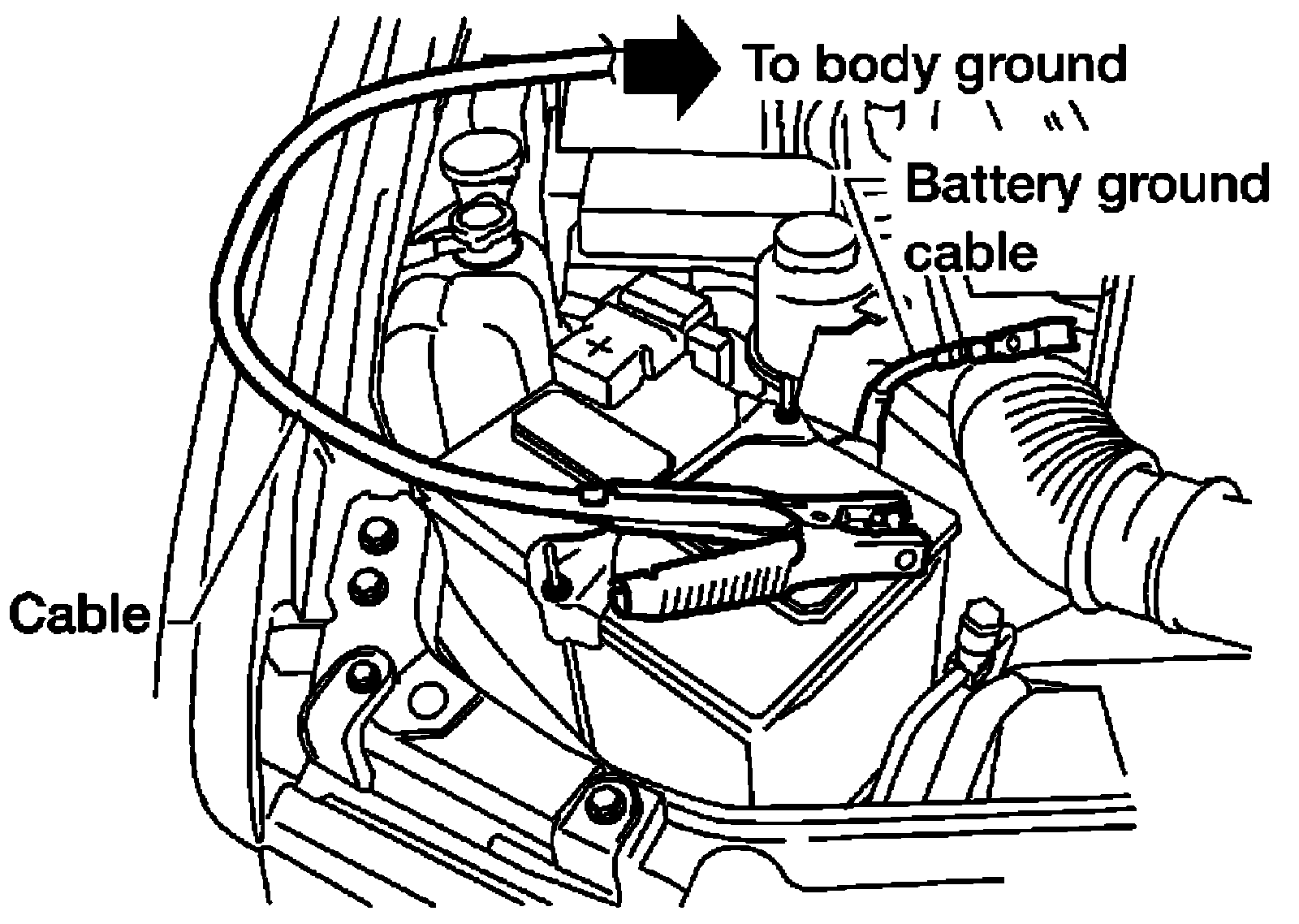

3. Install jumper cable between battery negative terminal and body ground.






4. Turn ignition switch ON.

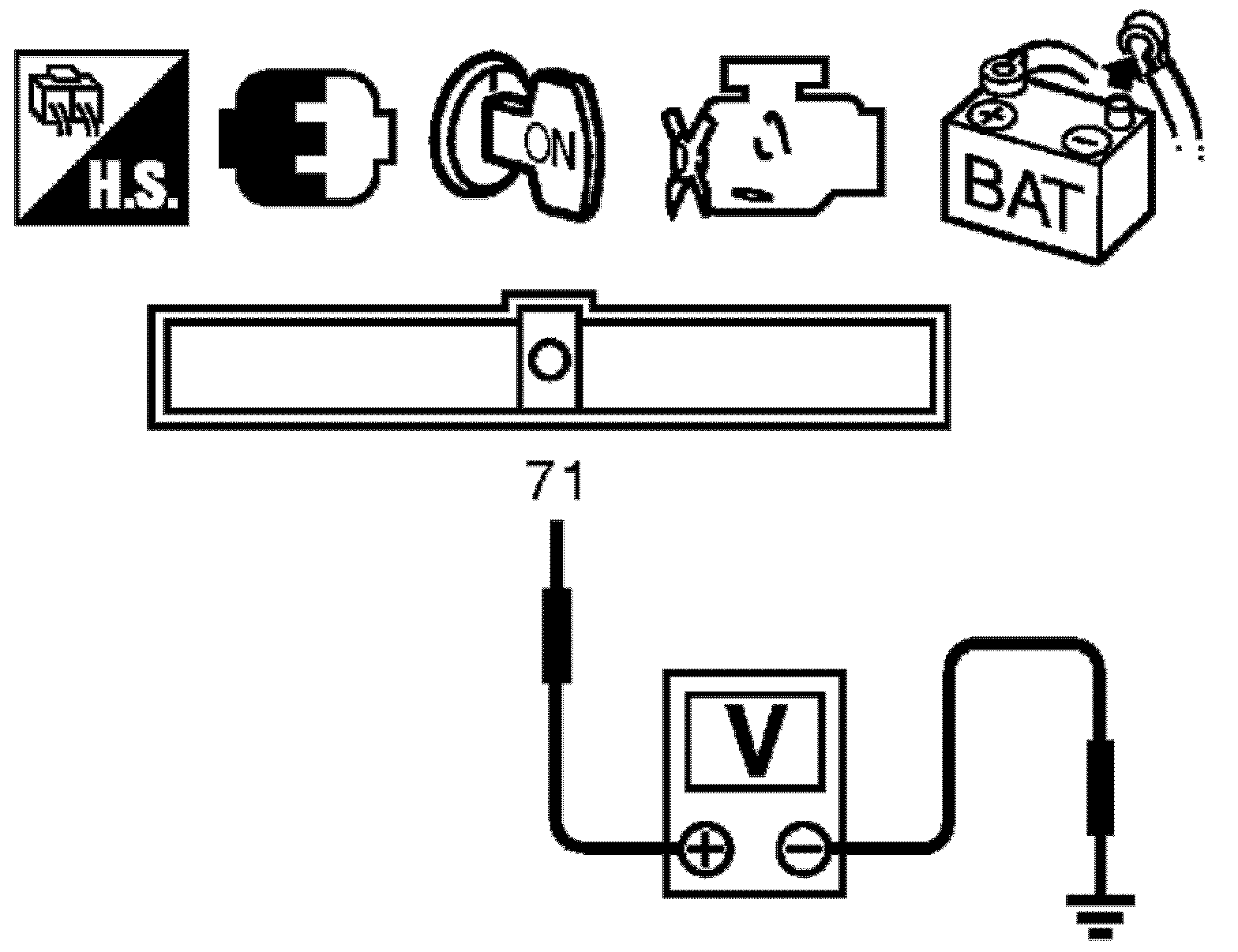

5. Check voltage between ECM terminal 71 (battery current sensor signal) and ground.






Voltage: Approximately 2.5 V

6. If NG, replace battery negative cable assembly.
