P0328

P0327, P0328 KS

Component Description
The knock sensor is attached to the cylinder block. It senses engine knocking using a piezoelectric element. A knocking vibration from the cylinder block is sensed as vibrational pressure. This pressure is converted into a voltage signal and sent to the ECM.






On Board Diagnosis Logic
The MIL will not light up for these self-diagnoses.

P0327-P0328:

DTC Confirmation Procedure

NOTE: If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.

TESTING CONDITION: Before performing the following procedure, confirm that battery voltage is more than 10 V at idle.

WITH SDT
1. Start engine and run it for at least 5 seconds at idle speed.
2. Check 1st trip DTC.
3. If 1st trip DTC is detected, go to [P0327, P0328 KS].

WITH GST
Follow the procedure "WITH SDT" above.

Diagnosis Procedure

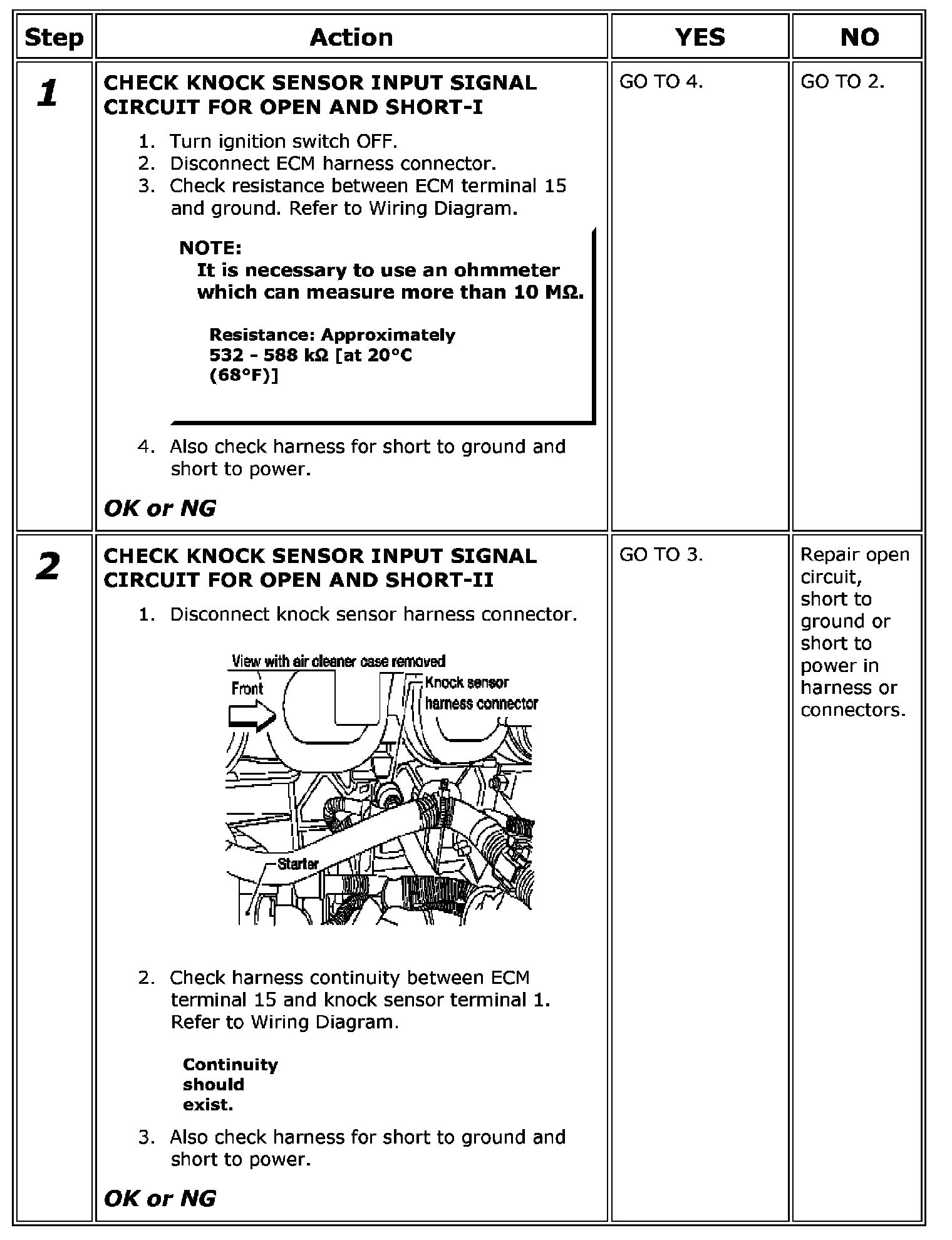

Step 1-2:

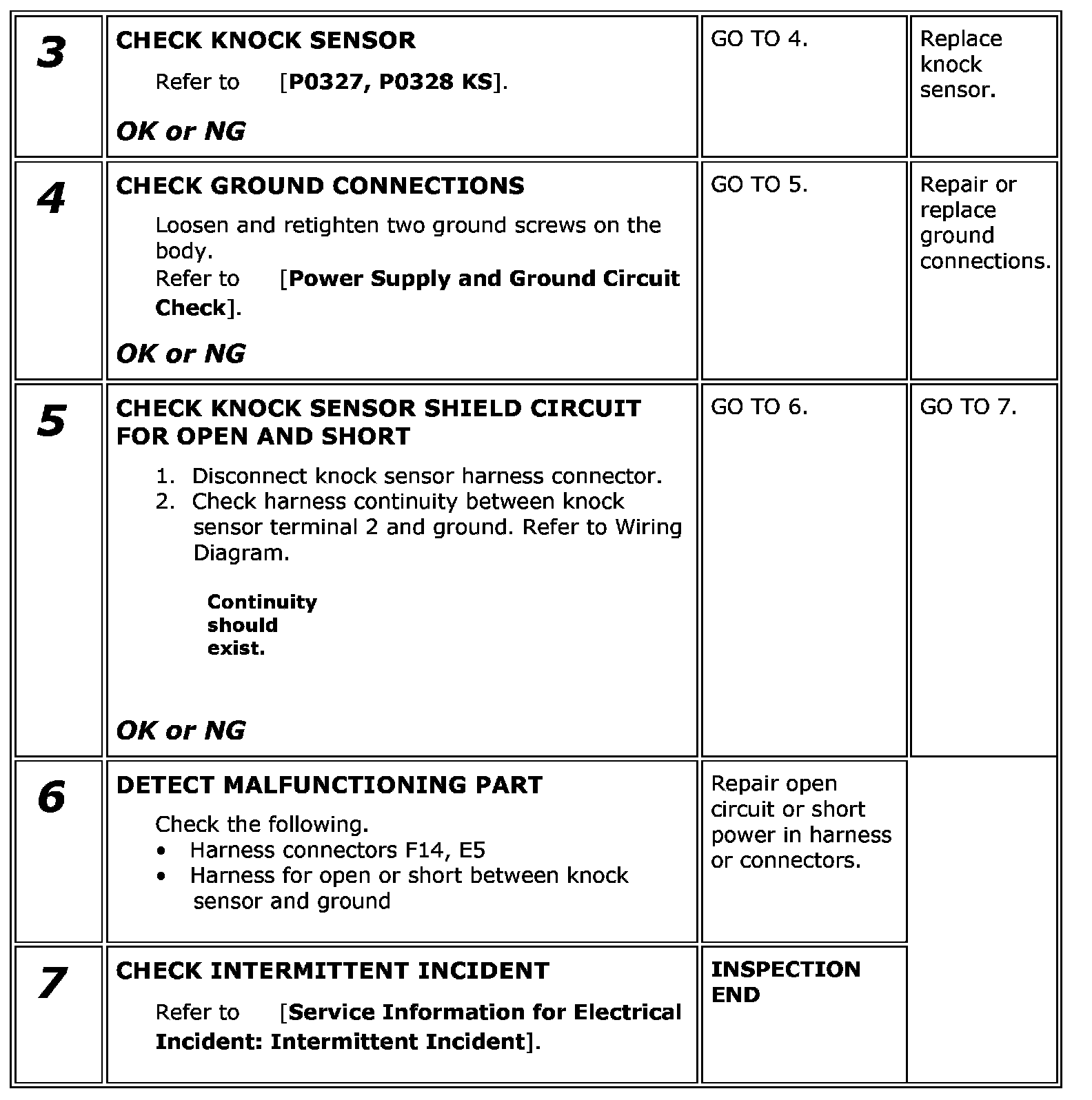

Step 3-7:

Component Inspection

KNOCK SENSOR
Check resistance between knock sensor terminal 1 and ground.






NOTE: It is necessary to use an ohmmeter which can measure more than 10 ohms.

Resistance: Approximately 532 - 588 k ohms [at 20 °C(68 °F)]

CAUTION: Never use any knock sensors that have been dropped or physically damaged.Use only new ones.
