P0117, P0118 ECT SensorComponent Description
The engine coolant temperature sensor is used to detect the engine coolant temperature.The sensor modifies a voltage signal from the ECM. The modified signal returns to the ECM as the engine coolant temperature input. The sensor uses a thermistor which is sensitive to the change in temperature.The electrical resistance of the thermistor decreases as temperature increases.
[Reference data]
CAUTION: Never use ECM ground terminals when measuring input/output voltage.Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
On Board Diagnosis Logic
These self-diagnoses have the one trip detection logic.
P0117-P0118:
FAIL-SAFE MODE
When this malfunction is detected, the ECM enters fail-safe mode and the MIL lights up.
Fail-Safe Mode:
DTC Confirmation Procedure
NOTE: If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.
WITH SDT
1. Turn ignition switch ON and wait at least 5 seconds.
2. Check DTC.
3. If DTC is detected, go to [P0117, P0118 ECT Sensor].
WITH GST
Follow the procedure "WITH SDT" above.
Diagnosis Procedure

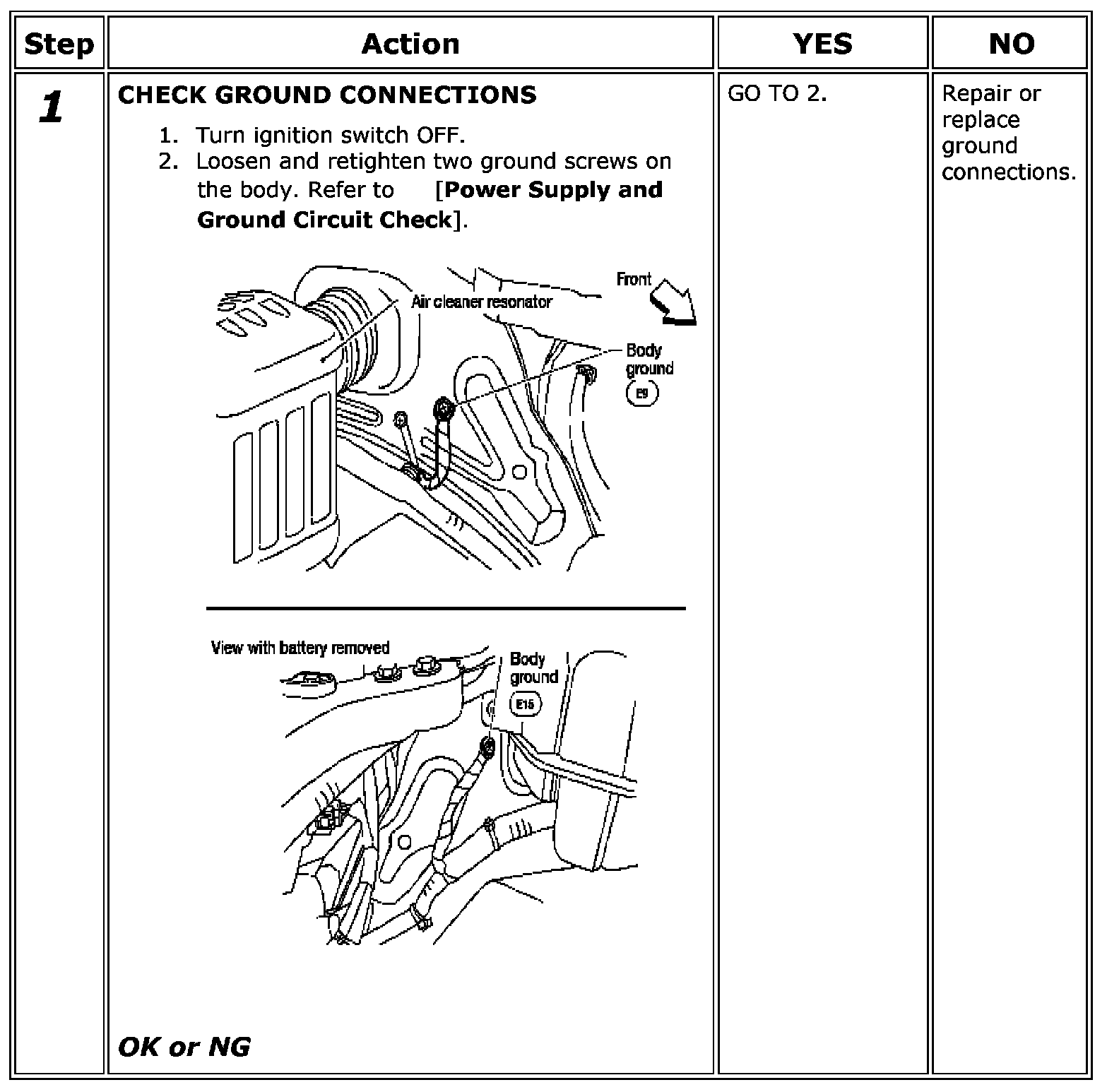

Step 1:

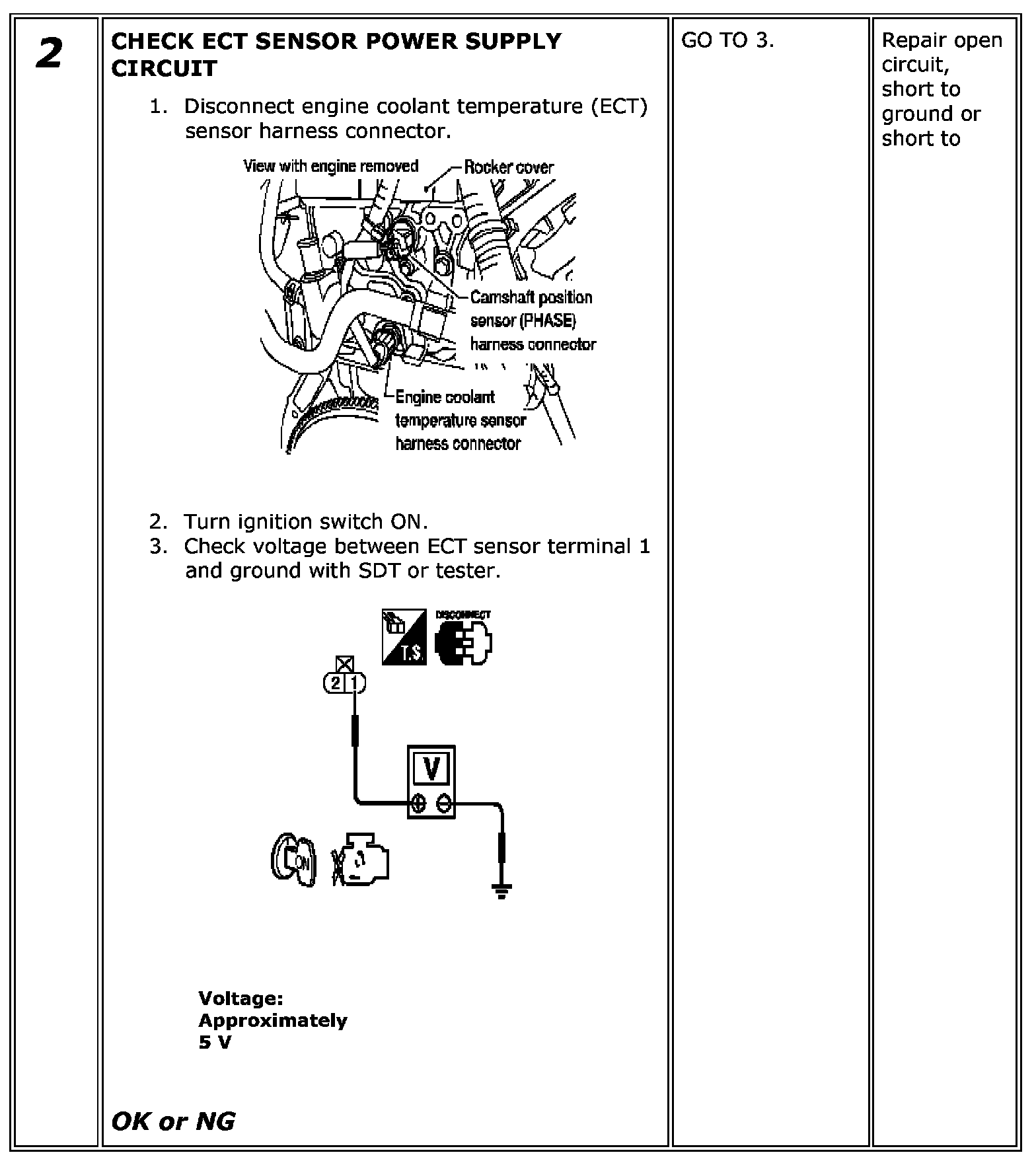

Step 2:

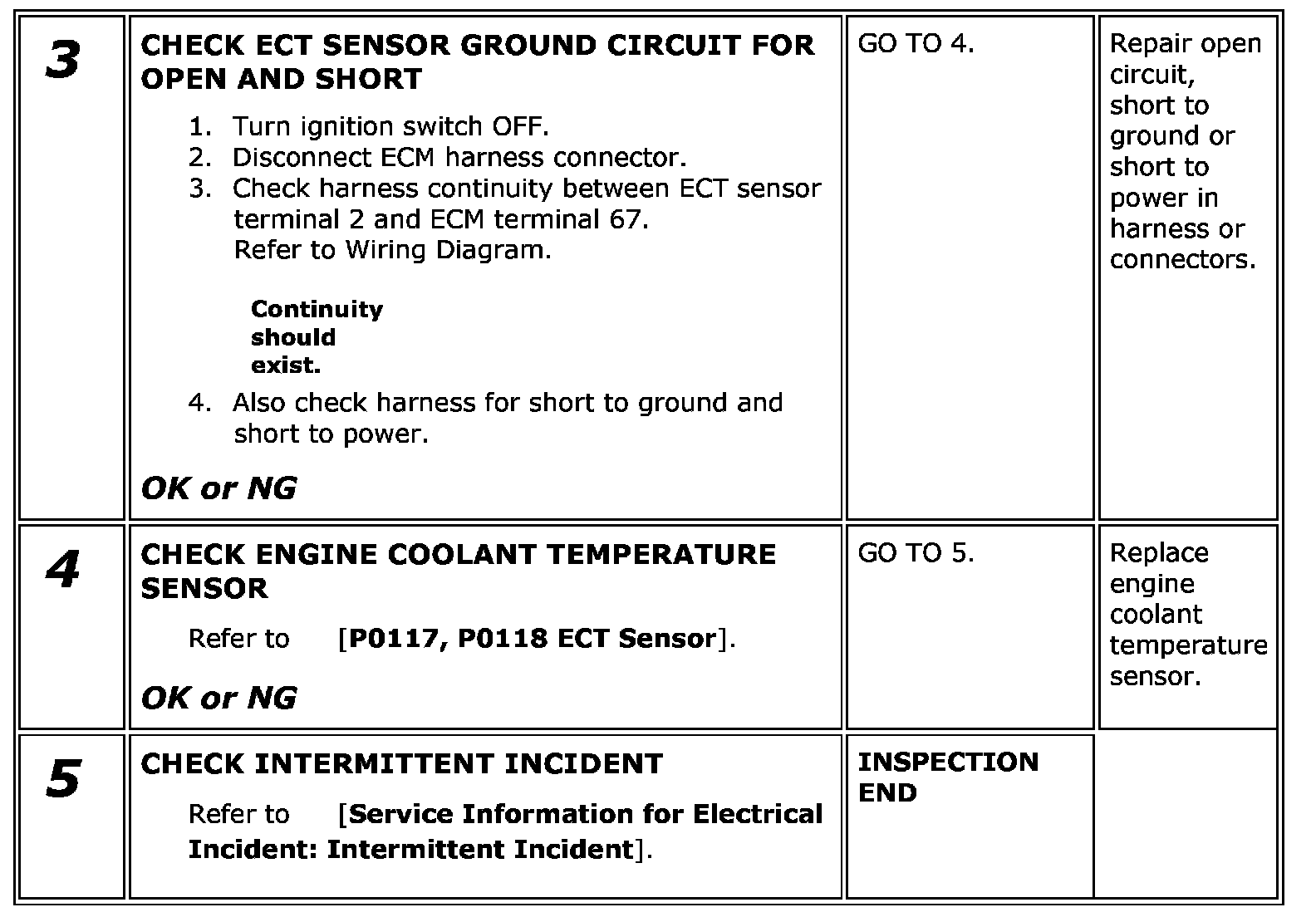

Step 3-5:
Component Inspection
ENGINE COOLANT TEMPERATURE SENSOR
1. Check resistance between engine coolant temperature sensor terminals 1 and 2 as shown in the figure.

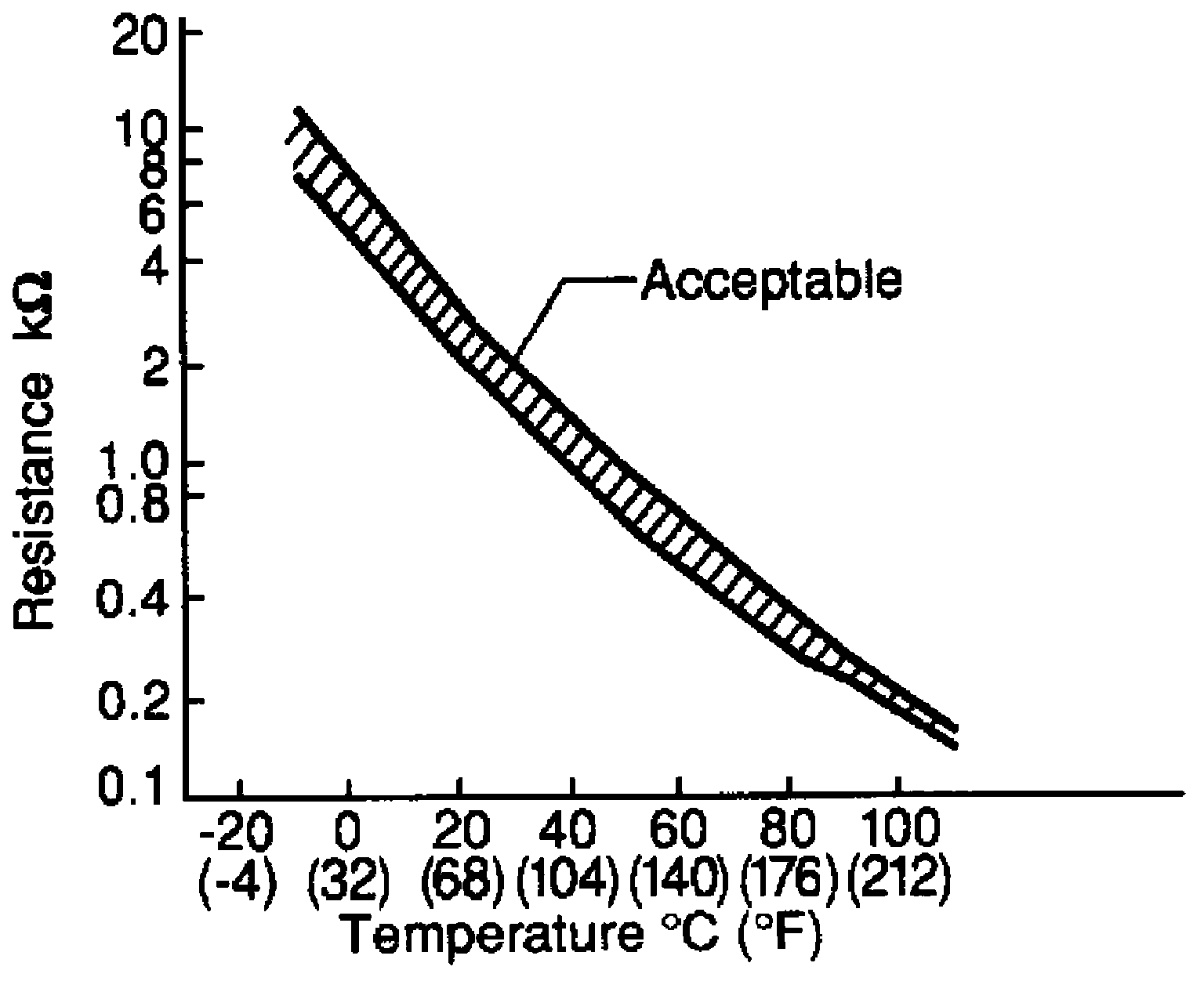

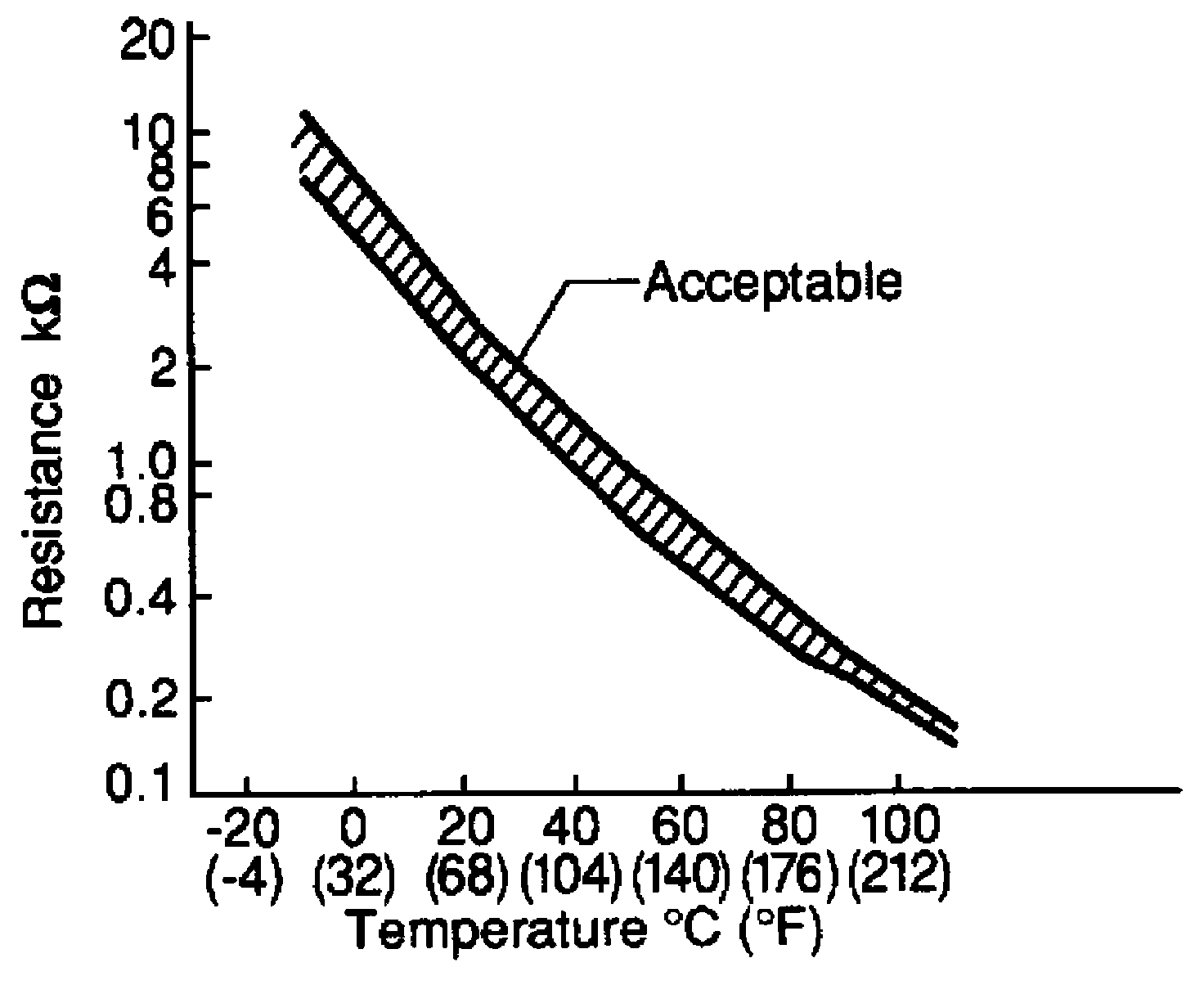

[Reference data]
2. If NG, replace engine coolant temperature sensor.
