DTC Inspection Priority Chart

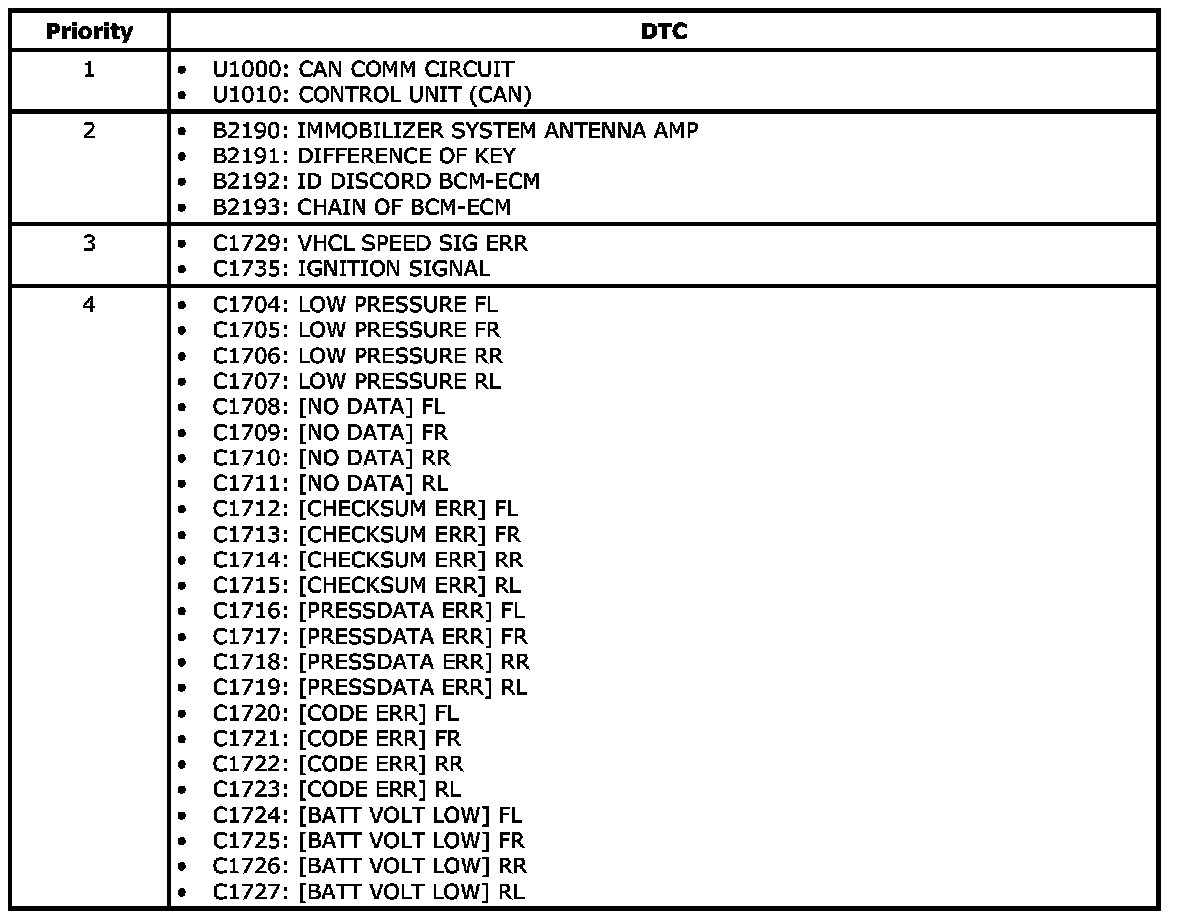

DTC Inspection Priority Chart: BCM

If some DTCs are displayed at the same time, perform inspections one by one based on the following priority chart.
