DTC Inspection Priority Chart: ECM

DTC Inspection Priority Chart: ECM

If some DTCs are displayed at the same time, perform inspections one by one based on the following priority chart.

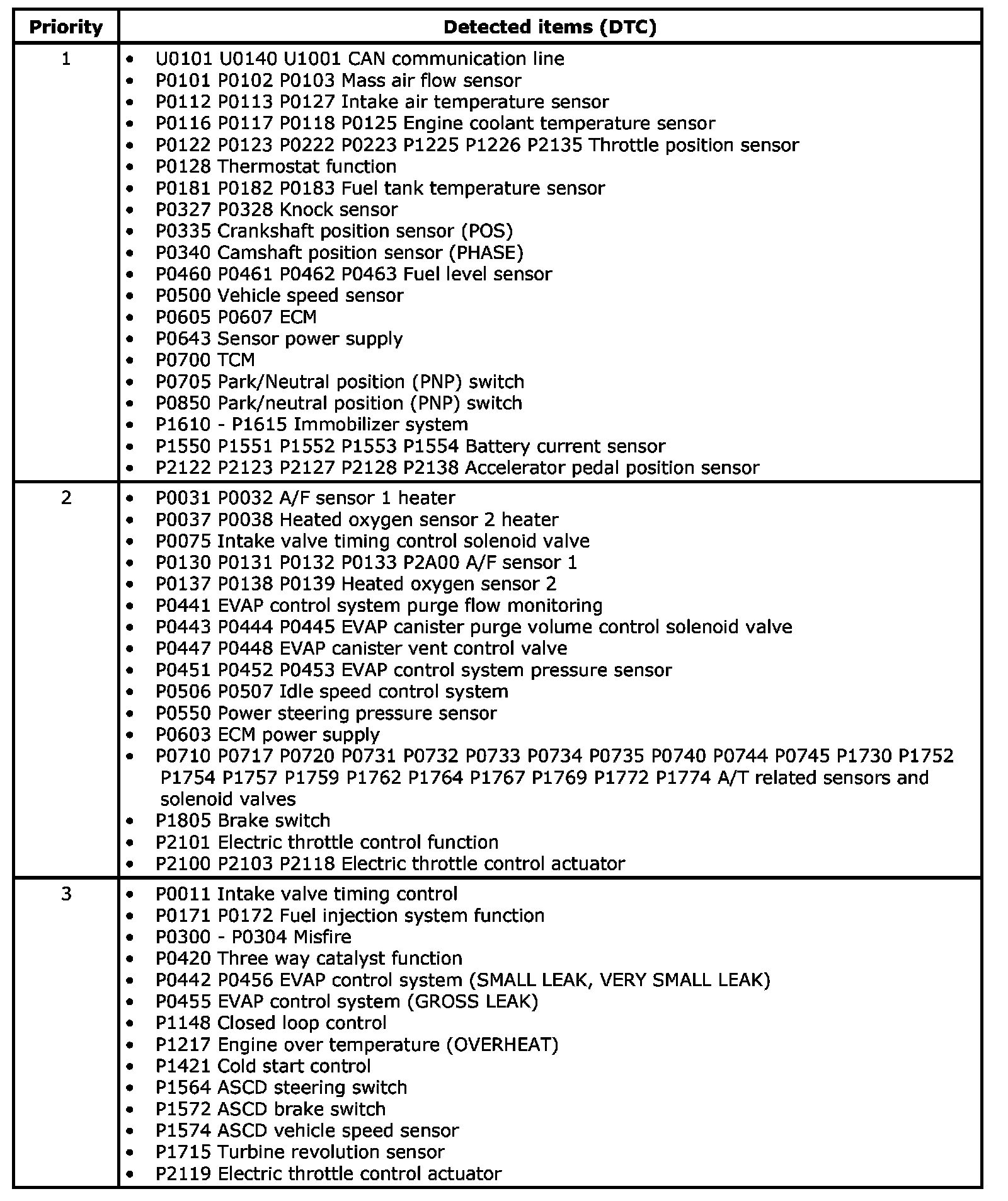

DTC Inspection Priority Chart:
