Front Differential Transfer Drive Gear Assembly Removal

Reference: MANUAL SHIFT DETENT LEVER AND PARK PAWL REMOVAL

Special Tool

J 45053 Universal Clamp Press

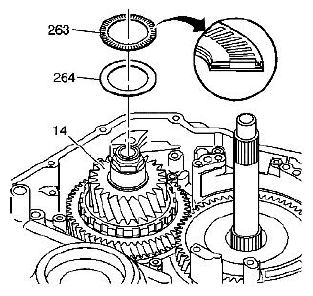

Fig 1: Removing Front Differential Transfer Drive Gear Thrust Bearing Assembly

Courtesy of SUZUKI OF AMERICA CORP.

1. Remove the front differential transfer drive gear thrust bearing assembly (263) from the front differential transfer drive gear assembly (14).
2. Remove the front differential transfer drive gear thrust bearing washer (264) from the front differential transfer drive gear assembly (14).
   Fig 2: Removing Front Differential Transfer Drive Gear Assembly

   Courtesy of SUZUKI OF AMERICA CORP.
   NOTE: The 4-5 clutch assembly may come out with the front differential transfer drive gear assembly. Do not let the front differential transfer drive gear assembly or the 4-5 clutch assembly fall to the floor or damage may occur.
3. Using J 45053, remove the front differential transfer drive gear assembly (14) from the transmission case assembly.
