Race and Bearing Specifications

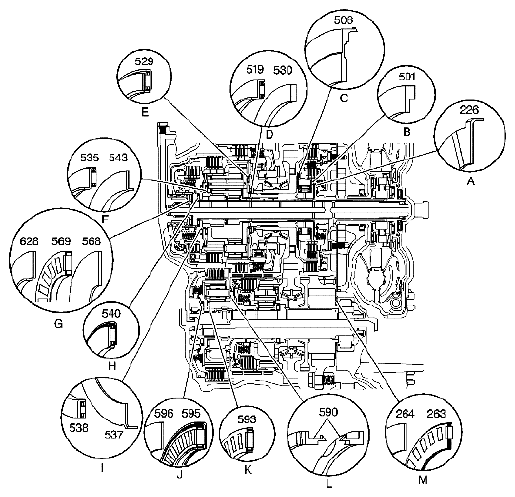

Fig 1: Identifying Bearings And Races

Courtesy of SUZUKI OF AMERICA CORP.

RACE AND BEARING SPECIFICATIONS

Alpha	Ref No.	Component	Outer Diameter Specification		Inner Diameter Specification
Alpha	Ref No.	Component	Metric	English	Metric	English
A	226	Coast Clutch Hub Thrust Washer - Front	62.40 mm	2.456 in	33.30 mm	1.311 in
B	501	Coast Clutch Hub Thrust Washer - Front	77.30 mm	3.043 in	56.50 mm	2.224 in
C	506	Second Clutch Sprag Outer Race Thrust Washer - Front	99.30 mm	3.909 in	56.50 mm	2.224 in
D	519	Front Internal Gear Thrust Bearing	61.95 mm	2.439 in	45.80 mm	1.803 in
D	530	Front Internal Gear Thrust Washer Race - Front	58.00 mm	2.283 in	43.80 mm	1.724 in
E	529	Front Internal Gear Thrust Bearing	89.00 mm	3.504 in	73.50 mm	2.894 in
F	535	Rear Internal Gear Thrust Bearing	64.00 mm	2.520 in	46.40 mm	1.827 in
F	543	Front Carrier Thrust Bearing Race - Front	61.00 mm	2.401 in	45.40 mm	1.787 in
G	568	Forward Clutch Housing Thrust Bearing Race - Front	41.00 mm	1.614 in	13.50 mm	0.531 in
G	569	Forward Clutch Housing Thrust Bearing	41.70 mm	1.641 in	23.00 mm	0.905 in
G	628	Forward/Direct Clutch Housing Thrust Bearing Race - Rear	41.00 mm	1.614 in	17.30 mm	0.681 in
H	540	Input Shaft Thrust Bearing	43.40 mm	1.709 in	22.05 mm	0.868 in
I	537	Rear Sun Gear Thrust Bearing Race - Front	74.00 mm	2.913 in	53.00 mm	2.087 in
I	538	Rear Sun Gear Thrust Bearing	65.00 mm	2.559 in	50.00 mm	1.968 in
J	595	1-2 Reverse Internal Gear Rear Thrust Bearing	57.70 mm	2.272 in	37.00 mm	1.457 in
J	596	1-2 Reverse Internal Gear Shim	57.70 mm	2.272 in	37.00 mm	1.457 in
K	593	1-2 Reverse Internal Gear Front Thrust Bearing	58.10 mm	2.287 in	39.60 mm	1.559 in
L	590	1-2 Reverse Carrier Thrust Washer (2)	77.60 mm	3.055 in	66.80 mm	2.630 in
M	263	Front Differential Transfer Drive Gear Thrust Bearing	71.00 mm	2.795 in	49.10 mm	1.933 in
M	264	Front Differential Transfer Drive Gear Thrust Bearing Washer - Front	71.00 mm	2.795 in	49.00 mm	1.929 in
