Removal Procedure

  1. Remove both catalytic converters. refer to CATALYTIC CONVERTER REPLACEMENT - RIGHT SIDE and CATALYTIC CONVERTER REPLACEMENT - LEFT SIDE .
  2. Remove the rear transaxle mount. refer to TRANSMISSION REAR MOUNT REPLACEMENT (GETRAG 760 TRANSFER CASE) .

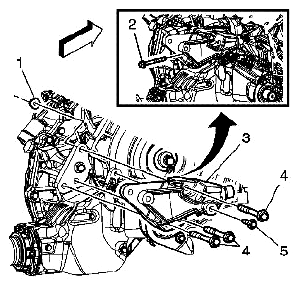

    Fig 1: Identifying Transaxle Mount Bracket Bolts And Transaxle Mount Bracket
    G05469827Courtesy of SUZUKI OF AMERICA CORP.
  3. Remove the transaxle mount bracket bolts (2, 4, 5).
  4. Remove the transaxle mount bracket (3).
