Installation Procedure

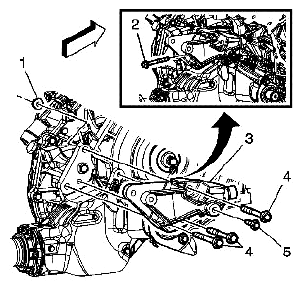

Fig 1: Identifying Transaxle Mount Bracket Bolts And Transaxle Mount Bracket

Courtesy of SUZUKI OF AMERICA CORP.

Position the transaxle mount bracket to the transaxle.
CAUTION: Refer to FASTENER NOTICE .
Install the transaxle mount bracket bolts (4).
Tightening torque

Tighten the bolts to 55 N.m (41 lb ft).
Install the transaxle mount bracket bolts (2, 5).
Tightening torque

Tighten the bolts to 37 N.m (27 lb ft).
Install the rear transaxle mount. refer to TRANSMISSION REAR MOUNT REPLACEMENT (GETRAG 760 TRANSFER CASE) .
Install both catalytic converters. refer to CATALYTIC CONVERTER REPLACEMENT - RIGHT SIDE and CATALYTIC CONVERTER REPLACEMENT - LEFT SIDE .
