Removal Procedure

  1. Support the transaxle with a height adjustable transmission stand.
  2. Remove the left engine splash shield. refer to ENGINE SPLASH SHIELD REPLACEMENT - LEFT SIDE .
  3. Remove the left transaxle mount. refer to TRANSMISSION MOUNT REPLACEMENT - LEFT SIDE .
  4. Lower the transaxle enough to access the mount bracket bolts.

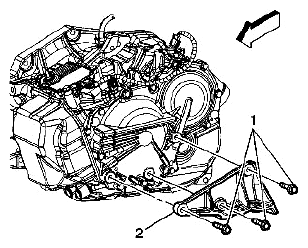

    Fig 1: Identifying Frame Bolts And Transaxle Mount Bracket
    G05469831Courtesy of SUZUKI OF AMERICA CORP.
  5. Remove the transaxle mount to frame bolts (1).
  6. Remove the transaxle mount bracket (2).
