Installation Procedure

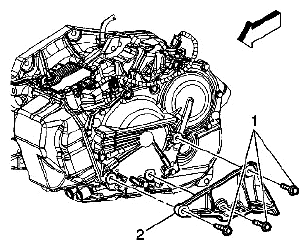

Fig 1: Identifying Frame Bolts And Transaxle Mount Bracket

Courtesy of SUZUKI OF AMERICA CORP.

Position the transaxle mount bracket (2) to the transaxle.
CAUTION: Refer to FASTENER NOTICE .
Install the transmission mount bracket bolts (1).
Tightening torque

Tighten the nuts to 55 N.m (41 lb ft).
Install the left transaxle mount. refer to TRANSMISSION MOUNT REPLACEMENT - LEFT SIDE .
Install the left engine splash shield. refer to ENGINE SPLASH SHIELD REPLACEMENT - LEFT SIDE .
Remove the transaxle stand.
Lower the vehicle.
