Removal Procedure

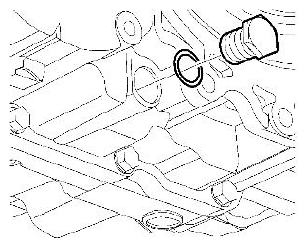

Fig 1: Identifying Gasket And Drain Plug

Courtesy of SUZUKI OF AMERICA CORP.

Raise and support the vehicle. refer to LIFTING AND JACKING THE VEHICLE .
Remove the drain plug and drain fluid. Allow at least 5 minutes for the fluid to drain completely.
Remove the gasket from the drain plug and discard.
