Transmission Fluid Drain Plug Installation

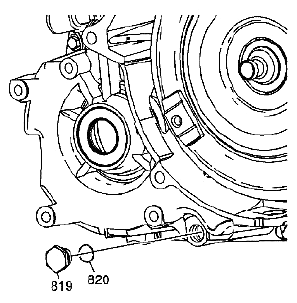

Fig 1: Identifying Drain Plug

Courtesy of SUZUKI OF AMERICA CORP.

1. Install a new gasket (820) on the drain plug (819).
   CAUTION: Refer to FASTENER NOTICE .
2. Install the drain plug (819) into the case assembly (17).

   Tightening torque

   Tighten the drain plug to 39 N.m (29 lb ft).

   Fig 2: Identifying Transmission Fluid Level Indicator Bolt

   Courtesy of SUZUKI OF AMERICA CORP.
3. Install a new o-ring (824) on the transmission fluid level indicator and lubricate with transmission fluid.
4. Install the transmission fluid level indicator.
5. Install the transmission fluid level indicator bolt.

Tightening torque

Tighten the indicator bolt to 10 N.m (89 lb in).

Reference: HOLDING FIXTURE REMOVAL
