Transmission Control Lever Knob Replacement

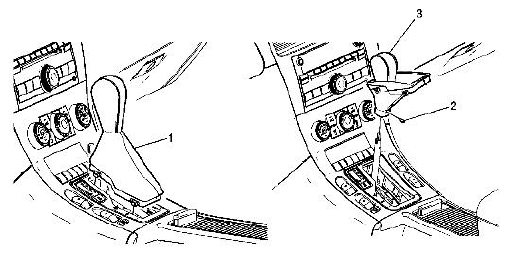

Fig 1: Identifying Transmission Control Lever Knob Components

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT NAME CHART

Callout	Component Name
1	Shift Control Knob Boot Depress the sides of the boot in order to release the boot from the instrument panel lower brace bezel. Lift the boot up in order to access the shift control knob screw.
2	Shift Control Knob Screw CAUTION: refer to FASTENER NOTICE . Tightening torque 1.5 N.m (13 lb in) Tip: Loosen the shift control knob screw approximately 4-5 turns. It is not necessary to fully remove the screw from the shift control knob.
3	Shift Control Knob Tip: Remove the shift control boot if replacing the knob. refer to TRANSMISSION CONTROL LEVER BOOT REPLACEMENT .
