Torque Converter Housing Installation

Reference: TORQUE CONVERTER HOUSING CLEANING AND INSPECTION

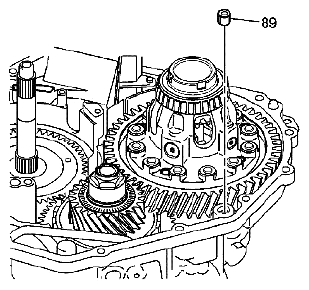

Fig 1: Identifying Case Fluid Passage Seal

Courtesy of SUZUKI OF AMERICA CORP.

1. Remove the case fluid passage seal (89).
2. Install a NEW case fluid passage seal (89) into the transmission case assembly.

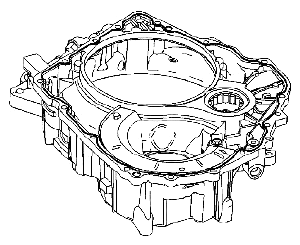

   Fig 2: Identifying Bolt Holes Of Torque Converter Housing Scaling Flange

   Courtesy of SUZUKI OF AMERICA CORP.
3. Apply a 3 mm (1/8 in) bead of sealant GM P/N 89020326 (Canadian P/N 89021188) on the inside of the bolt holes of the scaling flange of the torque converter housing assembly.

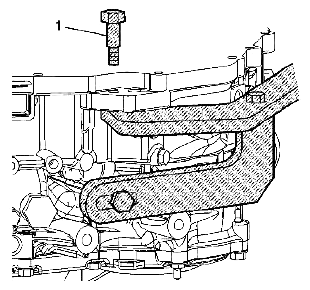

   Fig 3: Identifying Holding Fixture Bolt

   Courtesy of SUZUKI OF AMERICA CORP.
4. Remove the holding fixture bolt (1) to allow clearance to install the torque converter housing assembly.
5. Install the torque converter housing assembly to the transmission case assembly.

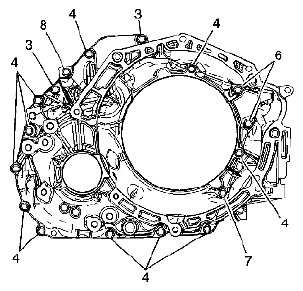

   Fig 4: Identifying Torque Converter Housing Bolts

   Courtesy of SUZUKI OF AMERICA CORP.
6. Apply threadlocker GM P/N 12345382 (Canadian P/N 10953489), to the threads of all the torque converter housing bolts.
7. Install the 11- M8 x 1.25 x 30 mm bolts (4) and hand tighten.
8. Install the 2 - M8 x 1.25 x 30 mm bolt/studs (3) and hand tighten.
9. Install the 2 - M8 x 1.25 x 35 mm bolts (6) and hand tighten.
10. Install the 1- M8 x 1.25 x 45 mm bolt (7) and hand tighten.
11. Install the 1- M8 x 1.25 x 30 mm TORX 40 bolt (8) and hand tighten.

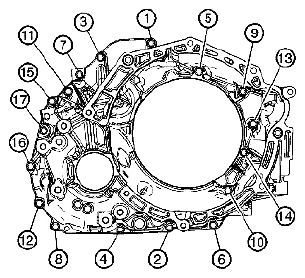

    Fig 5: Identifying Tightening Sequence Of Torque Converter Housing Bolts

    Courtesy of SUZUKI OF AMERICA CORP.
    CAUTION: Refer to FASTENER NOTICE .
12. Tighten the 17 torque converter housing bolts in sequence.

    Tightening torque

    Tighten the torque converter housing bolts to 29 N.m (21 lb ft).
