Torque Converter Assembly Installation

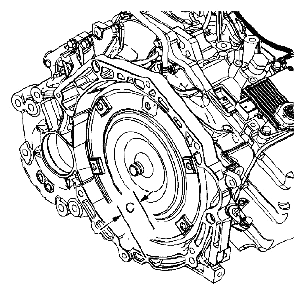

Fig 1: Identifying Torque Converter Assembly

Courtesy of SUZUKI OF AMERICA CORP.

Install the torque converter.

Fig 2: Identifying Installation Height Of Torque Converter Assembly
Courtesy of SUZUKI OF AMERICA CORP.
Measure dimension C.
If dimension C is not within specifications, rotate the torque converter to index it to the pump.
Installation Height

Dimension C should be 11.35 mm (0.447 in).
