Third Gear Band Assembly Installation

Special Tool

DT-47599 Anchor Bolt Socket

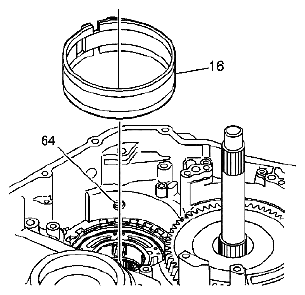

Fig 1: Identifying Third Gear Band Assembly

Courtesy of SUZUKI OF AMERICA CORP.

1. Install the third gear band assembly (16) into the transmission case assembly making sure that the band tangs are located at the servo pin.

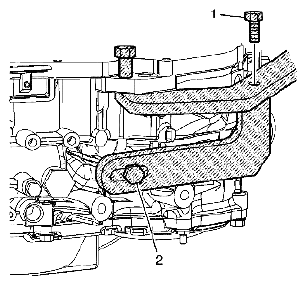

   Fig 2: Identifying Holding Fixture Bolt

   Courtesy of SUZUKI OF AMERICA CORP.
2. Remove the bolt (1) from the holding fixture and loosen bolt (2), to allow access.

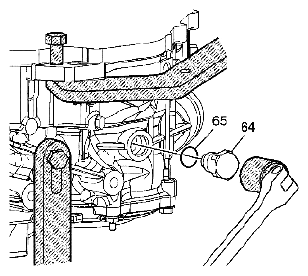

   Fig 3: Installing O-Ring And Third Gear Band Anchor Bolt

   Courtesy of SUZUKI OF AMERICA CORP.
3. Inspect the anchor bolt and the bolt hole.
4. Apply automatic transmission fluid to a new O-ring (65).
   CAUTION: Refer to FASTENER NOTICE .
5. Install the new O-ring and third gear band anchor bolt (64) using DT-47599.

   Tightening torque

   Tighten the anchor bolt to 167 N.m (123 lb ft).

   Fig 4: Identifying Holding Fixture Bolt

   Courtesy of SUZUKI OF AMERICA CORP.
6. Reinstall the holding fixture bolt (1) and tighten bolt (2) for the holding fixture.

   Reference: 4-5 CLUTCH ASSEMBLY INSTALLATION
