Installation Procedure

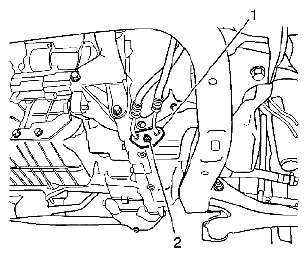

Fig 1: Identifying Transaxle Oil Cooler Line Assembly And Transaxle Oil Cooler Line Assembly Nut

Courtesy of SUZUKI OF AMERICA CORP.

Install the transaxle oil cooler lines into the vehicle.
Install the transaxle oil cooler line assembly (1) to the transaxle.
CAUTION: Refer to FASTENER NOTICE .
Install the transaxle oil cooler line assembly nut (2).
Tightening torque

Tighten the transaxle oil cooler lines to 9 N.m (80 lb in).
Connect the lower transaxle oil cooler line to the radiator.
Engage the transaxle oil cooler lines with the fan shroud by snapping in place.
Lower the vehicle.

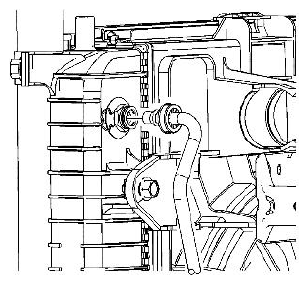

Fig 2: Identifying Upper Transaxle Oil Cooler Line
Courtesy of SUZUKI OF AMERICA CORP.
Connect the upper transaxle oil cooler line to the radiator.
NOTE: DEXRON III automatic transmission fluid is not compatible with this transaxle. If DEXRON III ATF is used, transaxle failure will result. This transaxle uses GM T-IV fluid P/N 88900925.
Add fluid to the transaxle. Refer to the TRANSMISSION FLUID CHECK .
Start the engine a check for leaks.
