Installation Procedure

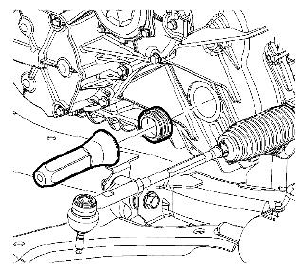

Fig 1: Installing Left Axle Seal Into Transaxle Using J 44809

Courtesy of SUZUKI OF AMERICA CORP.

Using the J 44809, install the left axle seal into the transaxle.
Install the left front axle shaft. Refer to FRONT WHEEL DRIVE SHAFT REPLACEMENT .
Lower the vehicle.
NOTE: Dextron® III automatic transmission fluid is not compatible with this transaxle. If Dextron® III ATF is used, transaxle failure will result. This transaxle uses GM T-IV fluid GM P/N 88900925.
Inspect the transaxle fluid level. Refer to TRANSMISSION FLUID CHECK .
