Installation Procedure

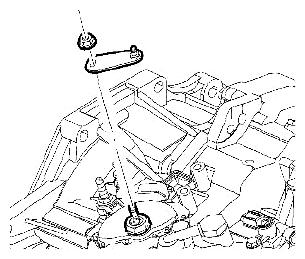

Fig 1: Identifying Transaxle Range Selector Lever Nut And Lever

Courtesy of SUZUKI OF AMERICA CORP.

CAUTION: Refer to FASTENER NOTICE .

Install the transaxle range selector lever and lever nut.
Tightening torque

Tighten the nut to 16 N.m (12 lb ft).

Fig 2: Identifying Shift Control Cable, Transaxle Range Switch Lever And Shift Control Cable Retainer Clip Tabs
Courtesy of SUZUKI OF AMERICA CORP.
Install the shift control cable (2) to the shift control cable bracket (3). Ensure the shift control cable retaining tabs fully engage the shift control cable bracket.
Connect the shift control cable (1) to the transaxle range switch lever (4).
Install the battery tray. refer to BATTERY TRAY REPLACEMENT .
