3rd Gear Band Servo Piston Assembly Removal

Reference: 1-2-REVERSE CARRIER GEAR ASSEMBLY REMOVAL

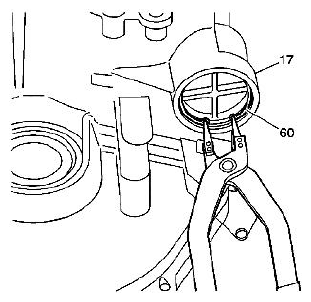

Fig 1: Removing Third Gear Servo Cover Retaining Ring

Courtesy of SUZUKI OF AMERICA CORP.

1. Rotate the transmission assembly so the rear case cover assembly is facing up.
2. Remove the third gear servo cover retaining ring (60) from the transmission case assembly (17).

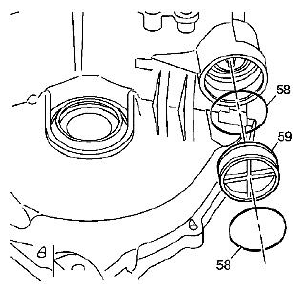

   Fig 2: Identifying Third Gear Band Servo Cover And O-Ring Seals

   Courtesy of SUZUKI OF AMERICA CORP.
3. Remove the third gear band servo cover (59) from the transmission case assembly.
4. Remove the 2 O-ring seals (58) from the third gear band servo cover (59).

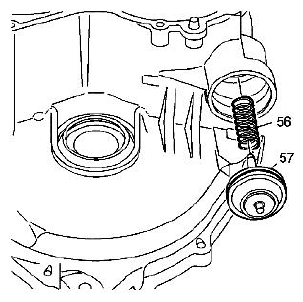

   Fig 3: Identifying Third Gear Band Servo Piston Assembly And Third Gear Band Servo Compression Spring

   Courtesy of SUZUKI OF AMERICA CORP.
5. Remove the third gear band servo piston assembly (57).
6. Remove the third gear band servo compression spring (56).

   Reference: 3RD GEAR BAND SERVO PISTON DISASSEMBLE
