Neutral - Engine Running: Passages

  1. SUCTION
  2. LINE
  3. CONVERTER FEED
  4. RELEASE
  5. APPLY
  6. EXHAUST ENABLE
  7. COOLER
  8. LUBE
  9. SOLENOID MODULATOR
  10. THROTTLE SIGNAL (SLT)
  11. SHIFT CONTROL (SLS)
  12. LOCK UP CONTROL (SLU)
  13. TCC SIGNAL
  14. S1 SIGNAL
  15. S2 SIGNAL
  16. S3 SIGNAL
  17. S4 SIGNAL
  18. S5 SIGNAL
  19. DRIVE
  20. DRIVE OR REVERSE
  21. REGULATED DRIVE OR REVERSE
  22. REVERSE
  23. REVERSE CLUTCH
  24. LOW AND REVERSE CLUTCH
  25. REVERSE CONTROL
  26. FORWARD CLUTCH
  27. DIRECT CLUTCH FEED 1
  28. DIRECT CLUTCH FEED 2
  29. DIRECT CLUTCH
  30. B2 CONTROL 1
  31. B2 CONTROL 2
  32. SECOND CLUTCH
  33. B1 CONTROL 1
  34. B1 CONTROL 2
  35. B1 CONTROL 3
  36. SECOND COAST CLUTCH
  37. B5 CONTROL 1
  38. B5 CONTROL 2
  39. 1-2 REVERSE (B5) CLUTCH
  40. 4-5 CLUTCH
  41. B4 CONTROL
  42. B4 RELEASE
  43. SERVO RELEASE
  44. SERVO FEED
  45. SERVO APPLY
  46. 3RD GEAR BAND APPLY
  47. PN12345
  48. PRN15
  49. 234NCON
  50. 345 ENABLE
  51. 45 ENABLE
  52. REVERSE INHIBIT
  53. VENT
  54. EXHAUST
  55. SUMP
  56. VOID
  57. TORQUE CONVERTER SEAL DRAINBACK

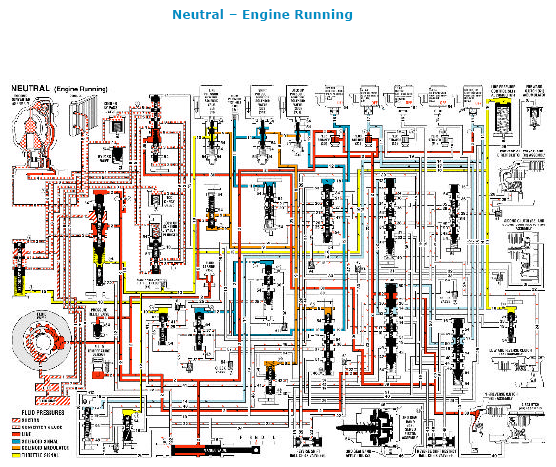

    Fig 1: Neutral - Engine Running - Oil Flow Diagram
    G05469707Courtesy of SUZUKI OF AMERICA CORP.
