Back Flush Procedure

Fig 1: Identifying J 45096-30 Onto Oil Cooler Lines

Courtesy of SUZUKI OF AMERICA CORP.

Install both of the J 45096-30 onto the oil cooler lines.

Fig 2: Connecting Black Supply Hose To Adapter
Courtesy of SUZUKI OF AMERICA CORP.
Connect the black supply hose (1) to the adapter connected to the return line, bottom hose of the transmission oil cooler.
Connect the clear waste hose (2) to the adapter connected to the supply line, top hose from the transmission oil cooler.
The above connections are the reverse flow or back-flush direction.

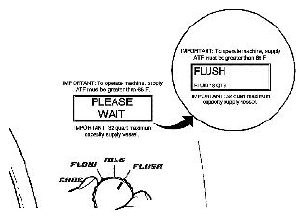

Fig 3: Turning Main Function Switch To FLUSH Position
Courtesy of SUZUKI OF AMERICA CORP.
Turn the main function switch to the FLUSH position. Allow the machine to operate for 30 seconds.

Fig 4: Turning Main Function Switch To IDLE Position
Courtesy of SUZUKI OF AMERICA CORP.
Turn the main function switch to the IDLE position and allow the supply vessel pressure to dissipate.
