Fluid Passages

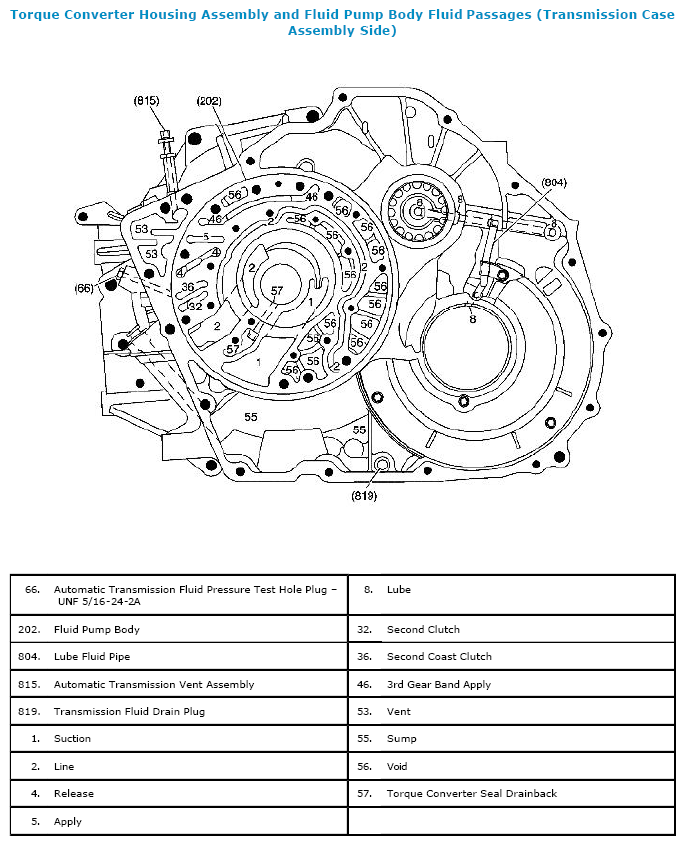

Fig 1: Identifying Torque Converter Housing Assembly And Fluid Pump Body Fluid Passages (Transmission Case Assembly Side)
G05469744Courtesy of SUZUKI OF AMERICA CORP.

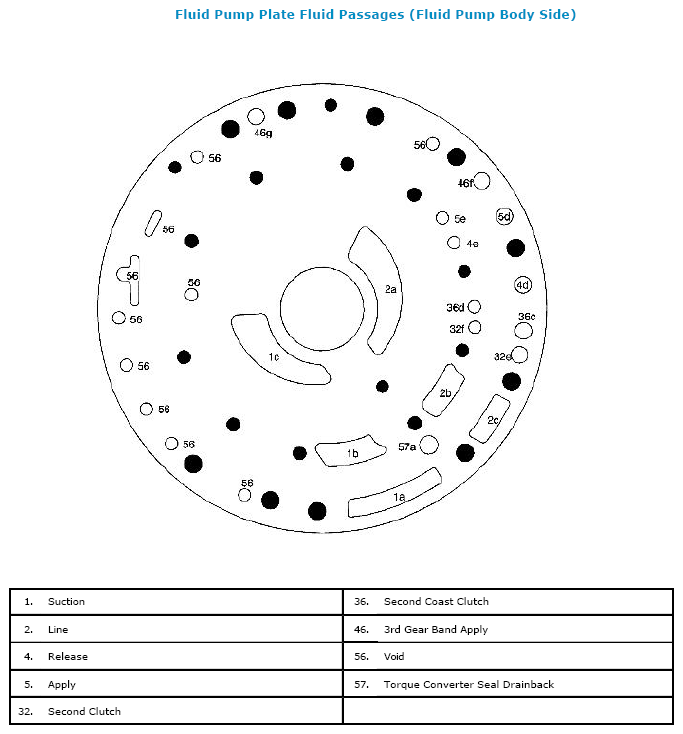

Fig 2: Identifying Fluid Pump Plate Fluid Passages (Fluid Pump Body Side)
G05469745Courtesy of SUZUKI OF AMERICA CORP.

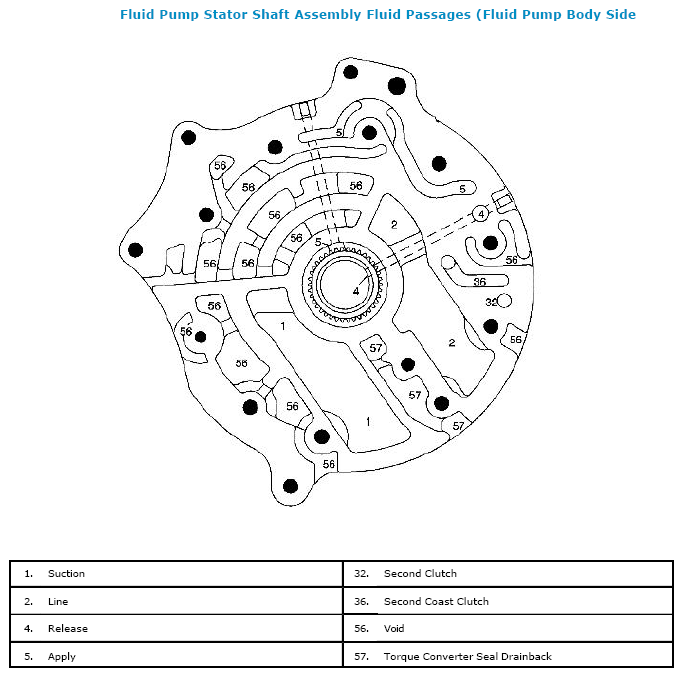

Fig 3: Identifying Fluid Pump Stator Shaft Assembly Fluid Passages (Fluid Pump Body Side)
G05469746Courtesy of SUZUKI OF AMERICA CORP.

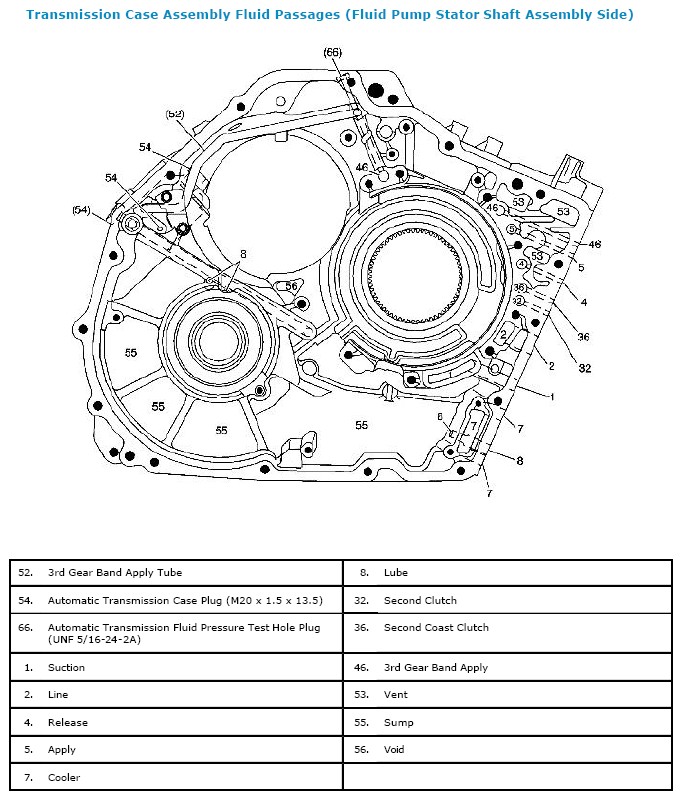

Fig 4: Identifying Transmission Case Assembly Fluid Passages (Fluid Pump Stator Shaft Assembly Side)
G05469747Courtesy of SUZUKI OF AMERICA CORP.

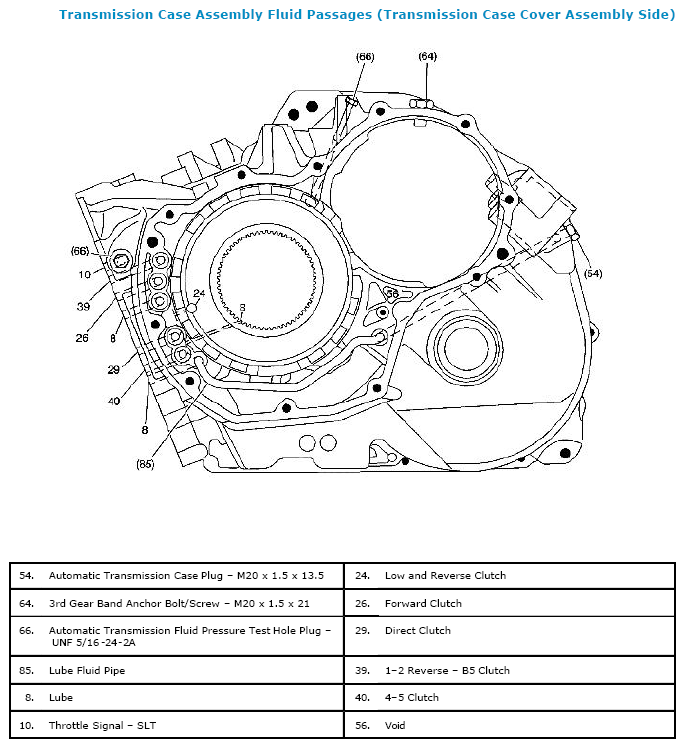

Fig 5: Identifying Transmission Case Assembly Fluid Passages (Transmission Case Cover Assembly Side)
G05469748Courtesy of SUZUKI OF AMERICA CORP.

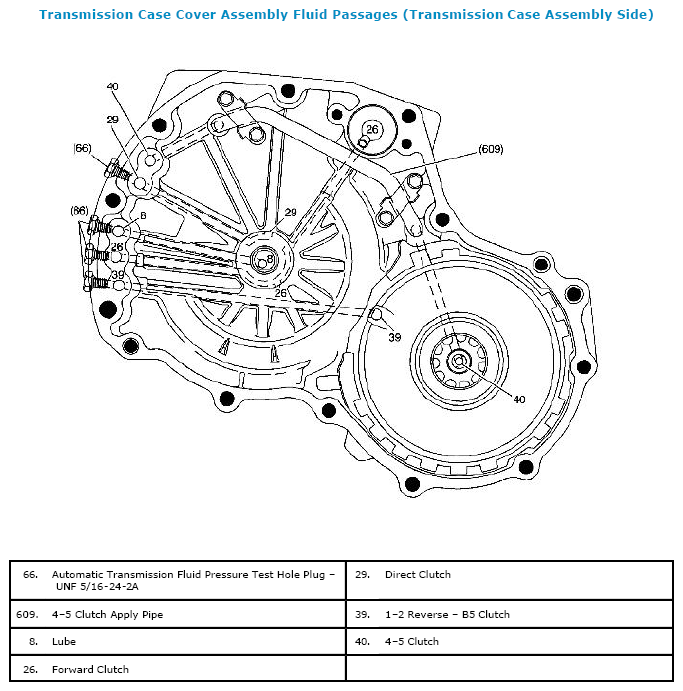

Fig 6: Identifying Transmission Case Cover Assembly Fluid Passages (Transmission Case Assembly Side)
G05469749Courtesy of SUZUKI OF AMERICA CORP.

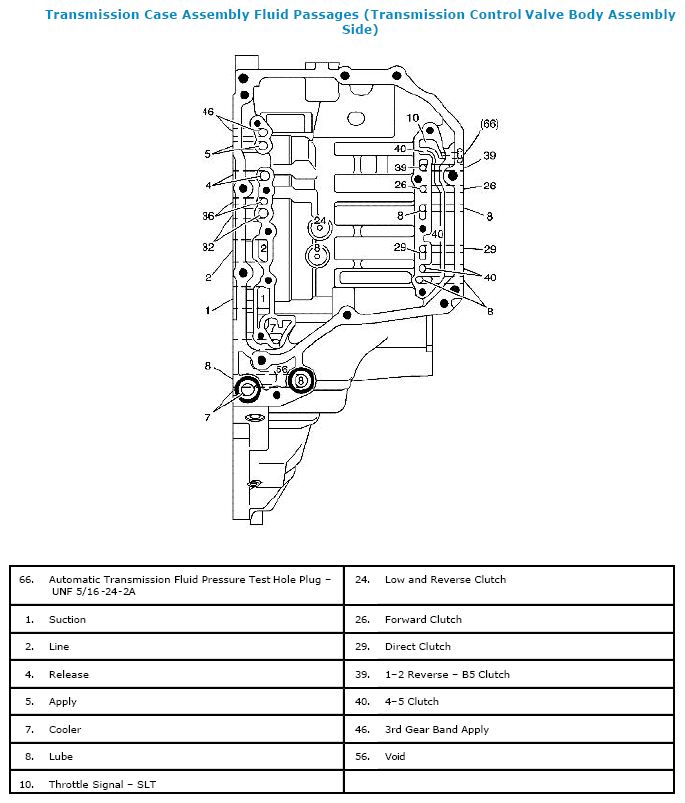

Fig 7: Identifying Transmission Case Assembly Fluid Passages (Transmission Control Valve Body Assembly Side)
G05469750Courtesy of SUZUKI OF AMERICA CORP.

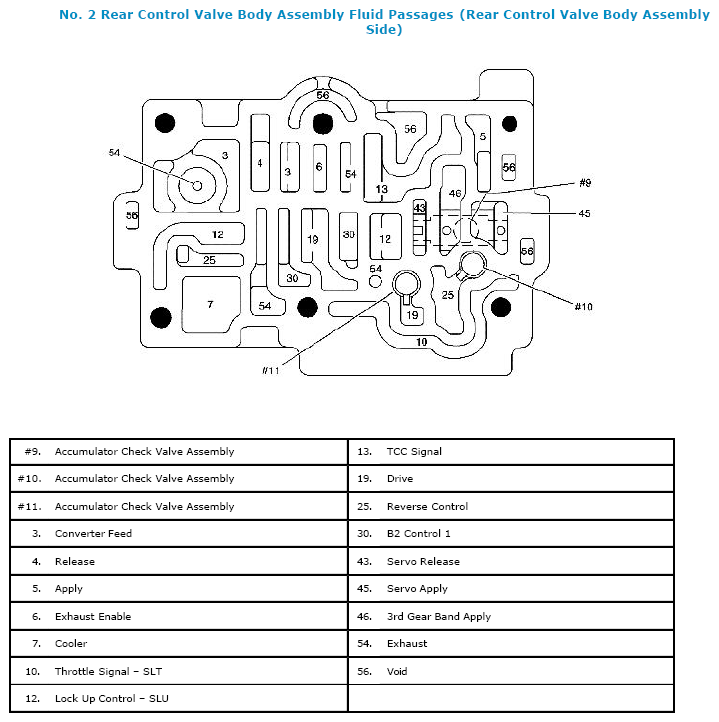

Fig 8: Identifying No. 2 Rear Control Valve Body Assembly Fluid Passages (Rear Control Valve Body Assembly Side)
G05469751Courtesy of SUZUKI OF AMERICA CORP.

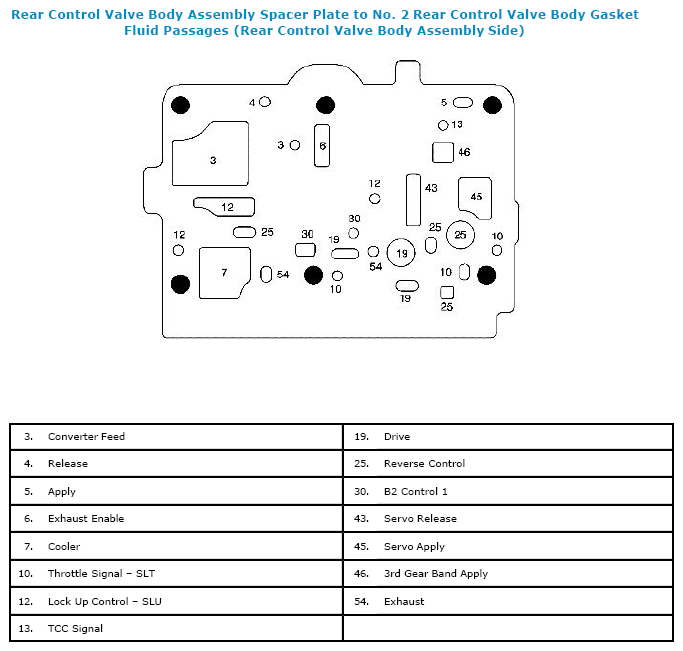

Fig 9: Identifying Rear Control Valve Body Assembly Spacer Plate To No. 2 Rear Control Valve Body Gasket Fluid Passages (Rear Control Valve Body Assembly Side)
G05469752Courtesy of SUZUKI OF AMERICA CORP.

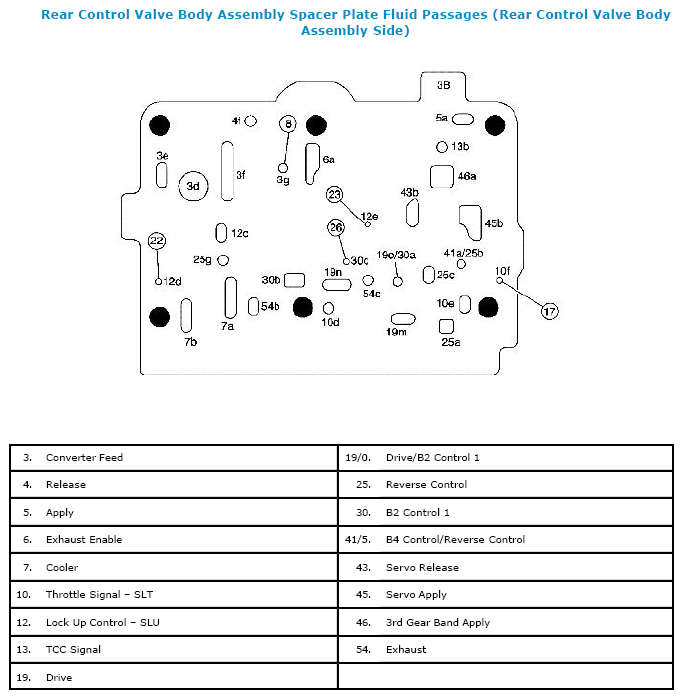

Fig 10: Identifying Rear Control Valve Body Assembly Spacer Plate Fluid Passages (Rear Control Valve Body Assembly Side)
G05469753Courtesy of SUZUKI OF AMERICA CORP.

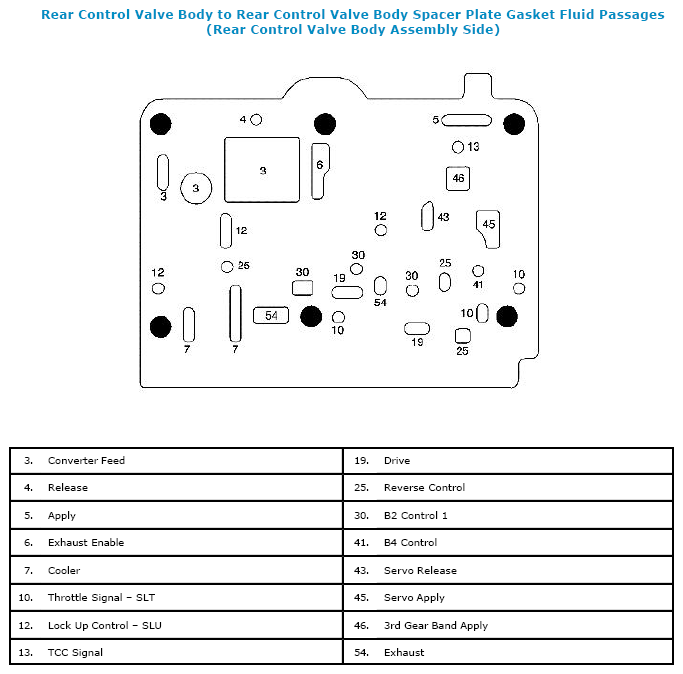

Fig 11: Identifying Rear Control Valve Body To Rear Control Valve Body Spacer Plate Gasket Fluid Passages (Rear Control Valve Body Assembly Side)
G05469754Courtesy of SUZUKI OF AMERICA CORP.

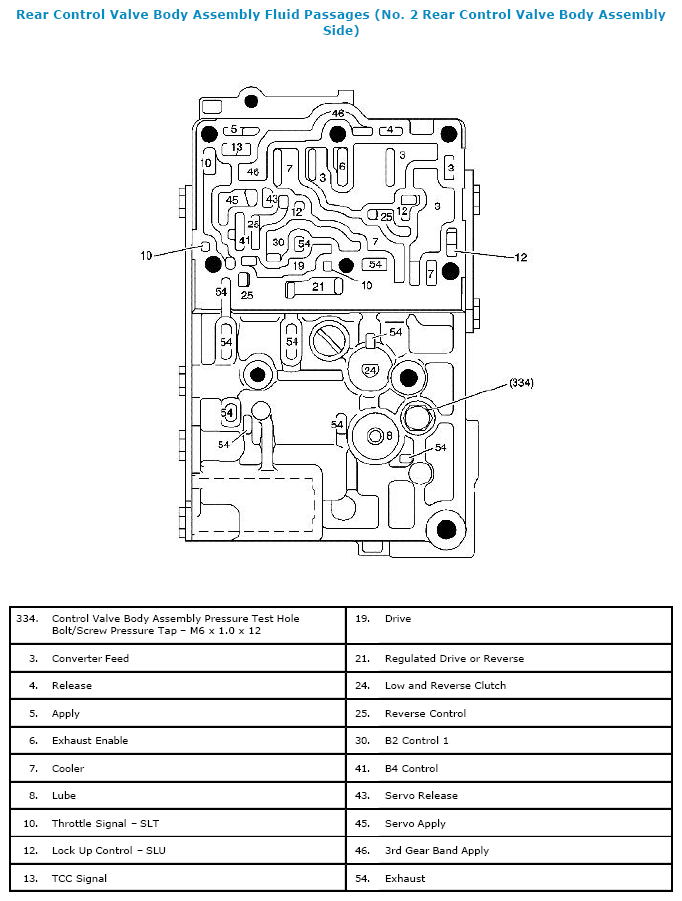

Fig 12: Identifying Rear Control Valve Body Assembly Fluid Passages (No. 2 Rear Control Valve Body Assembly Side)
G05469755Courtesy of SUZUKI OF AMERICA CORP.

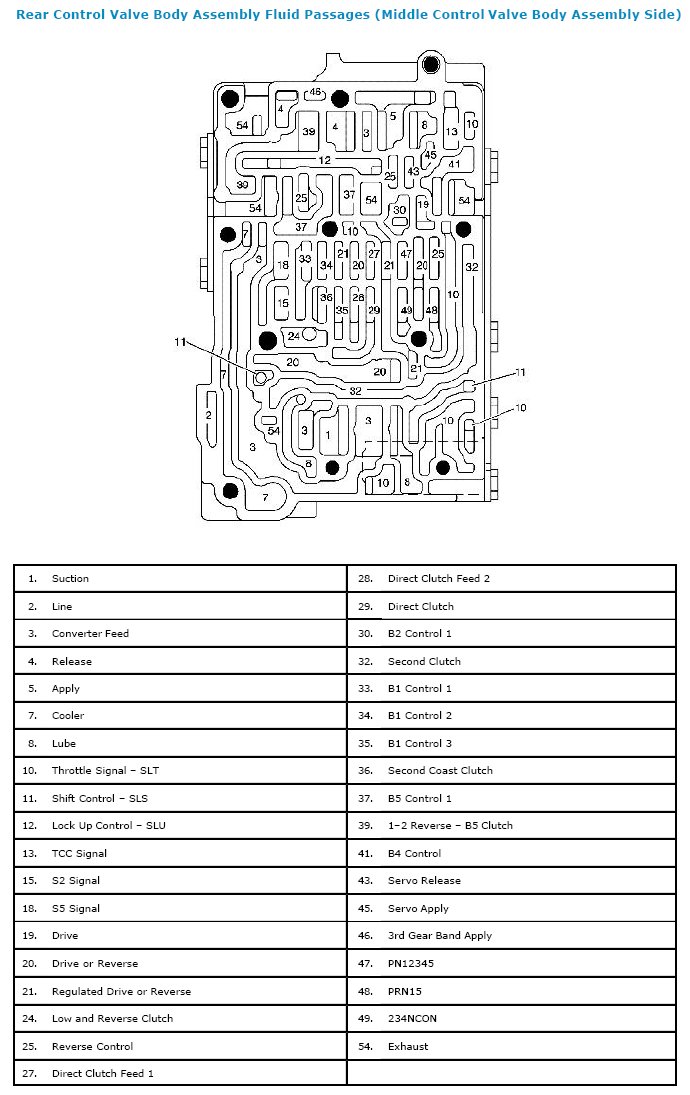

Fig 13: Identifying Rear Control Valve Body Assembly Fluid Passages (Middle Control Valve Body Assembly Side)
G05469756Courtesy of SUZUKI OF AMERICA CORP.

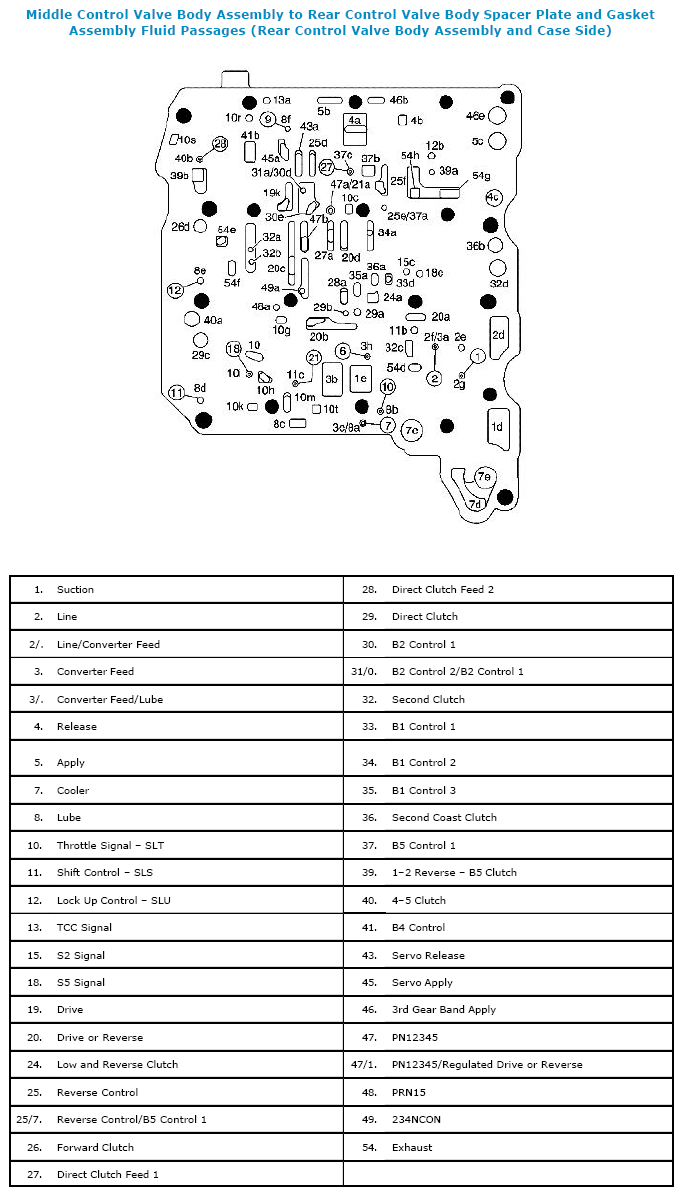

Fig 14: Identifying Middle Control Valve Body Assembly To Rear Control Valve Body Spacer Plate And Gasket Assembly Fluid Passages (Rear Control Valve Body Assembly And Case Side)
G05469757Courtesy of SUZUKI OF AMERICA CORP.

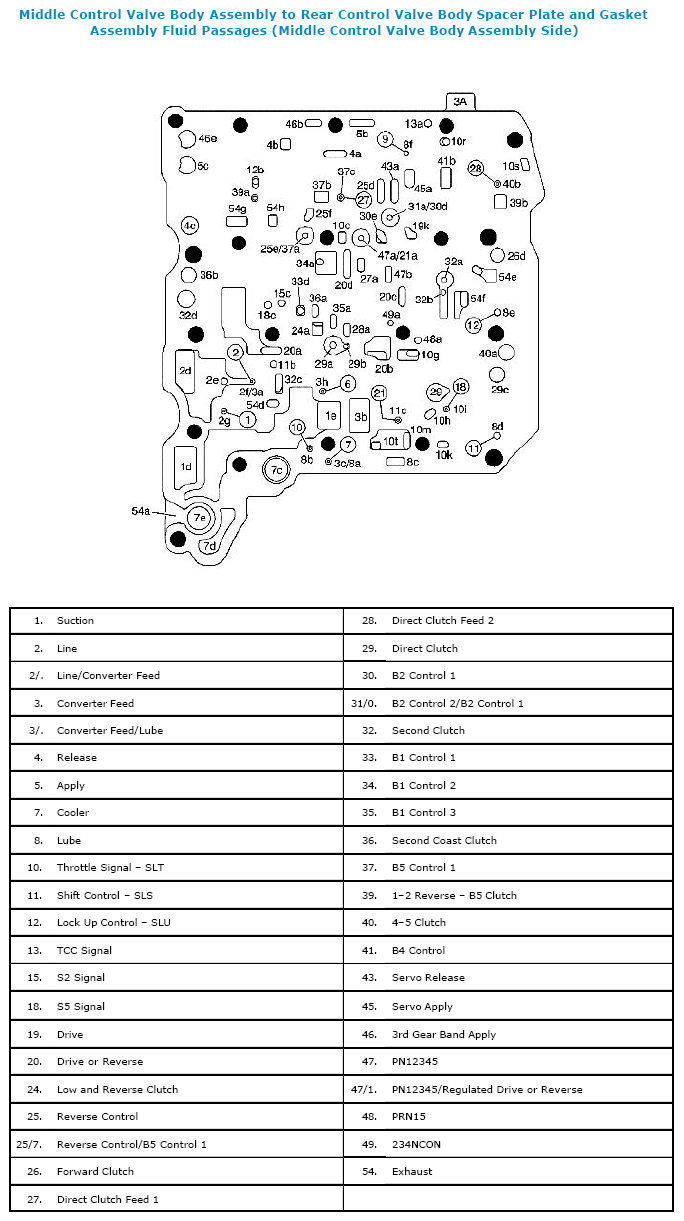

Fig 15: Identifying Middle Control Valve Body Assembly To Rear Control Valve Body Spacer Plate And Gasket Assembly Fluid Passages (Middle Control Valve Body Assembly Side)
G05469758Courtesy of SUZUKI OF AMERICA CORP.

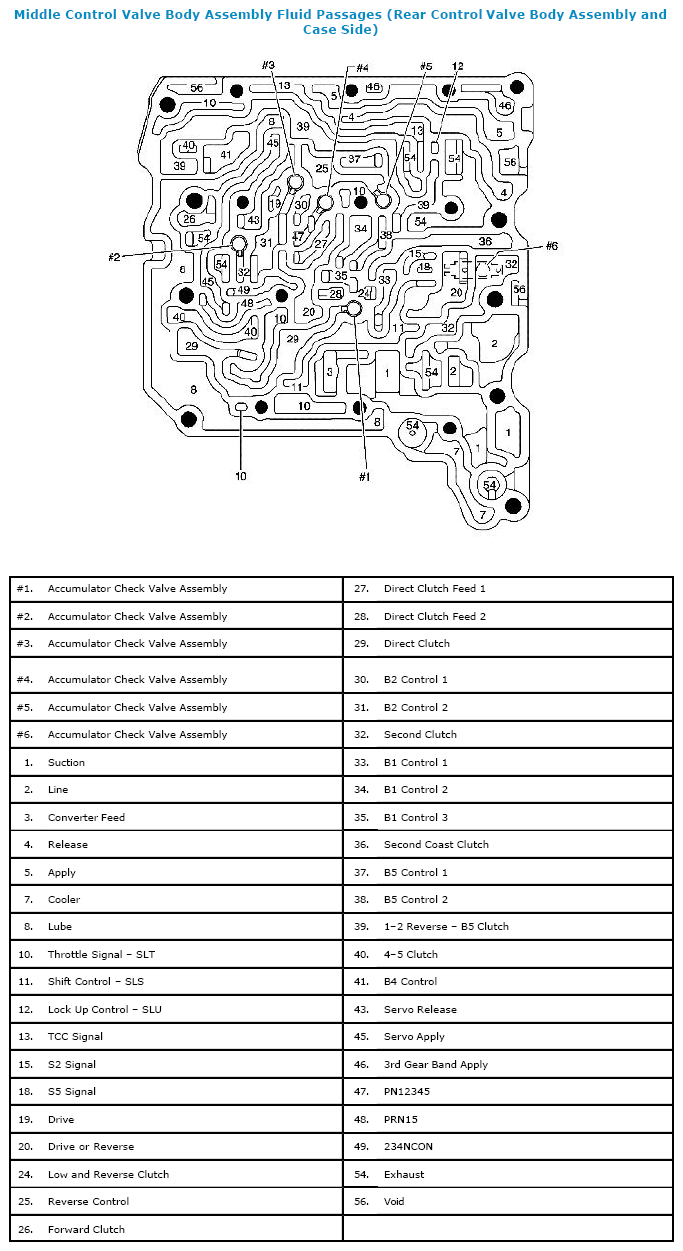

Fig 16: Identifying Middle Control Valve Body Assembly Fluid Passages (Rear Control Valve Body Assembly And Case Side)
G05469759Courtesy of SUZUKI OF AMERICA CORP.

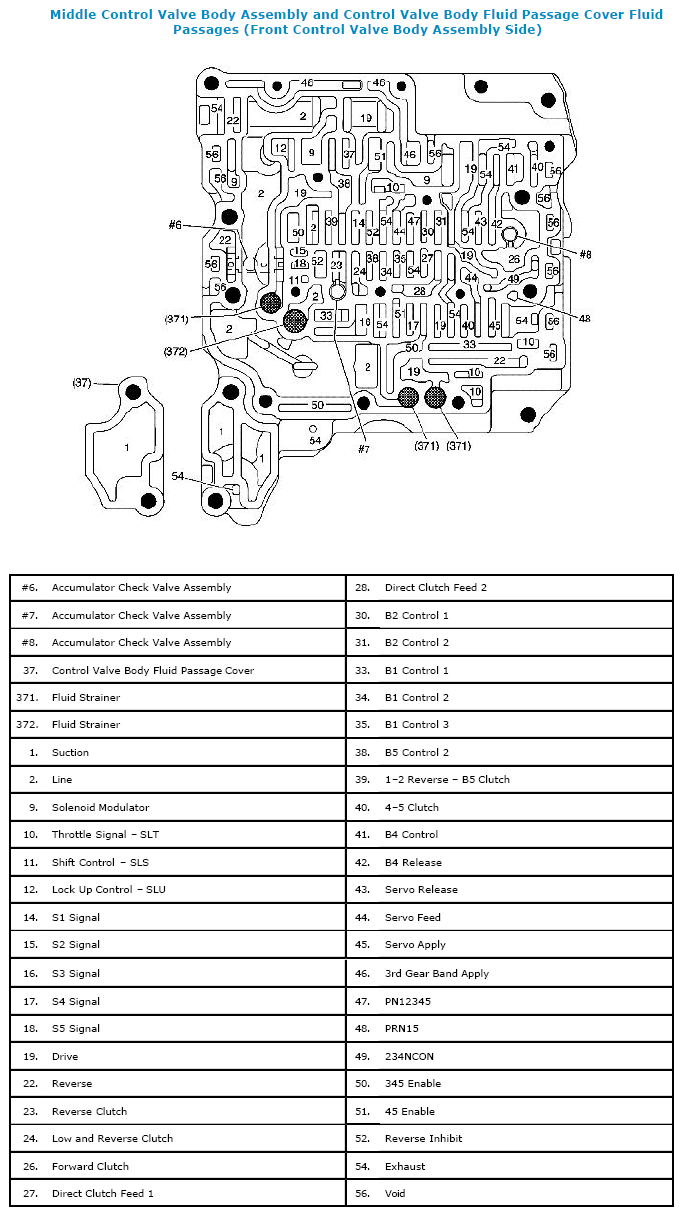

Fig 17: Identifying Middle Control Valve Body Assembly And Control Valve Body Fluid Passage Cover Fluid Passages (Front Control Valve Body Assembly Side)
G05469760Courtesy of SUZUKI OF AMERICA CORP.

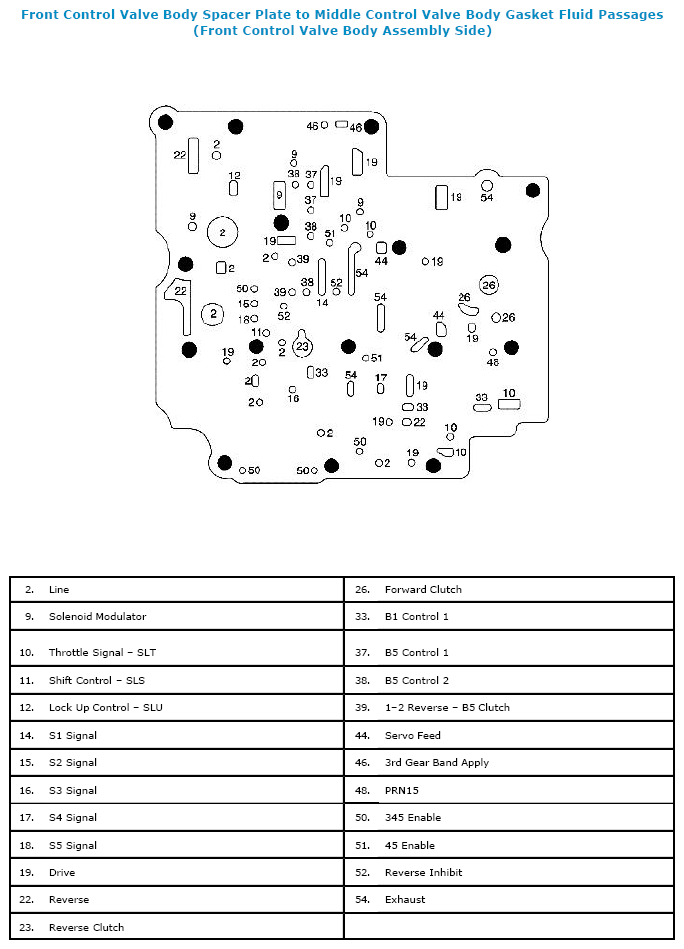

Fig 18: Identifying Front Control Valve Body Spacer Plate To Middle Control Valve Body Gasket Fluid Passages (Front Control Valve Body Assembly Side)
G05469761Courtesy of SUZUKI OF AMERICA CORP.

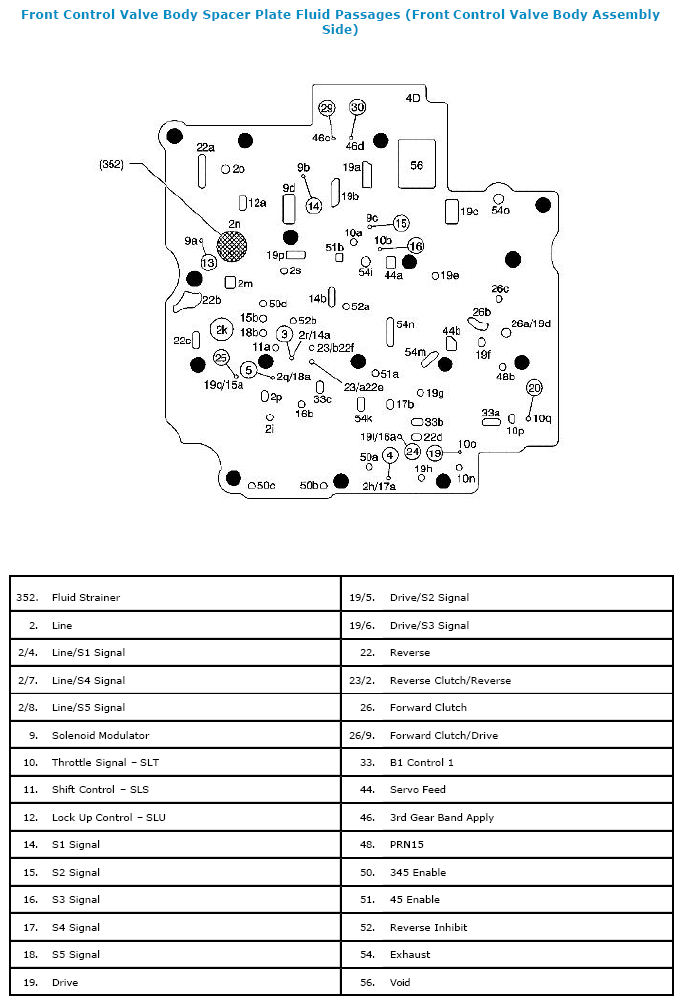

Fig 19: Identifying Front Control Valve Body Spacer Plate Fluid Passages (Front Control Valve Body Assembly Side)
G05469762Courtesy of SUZUKI OF AMERICA CORP.

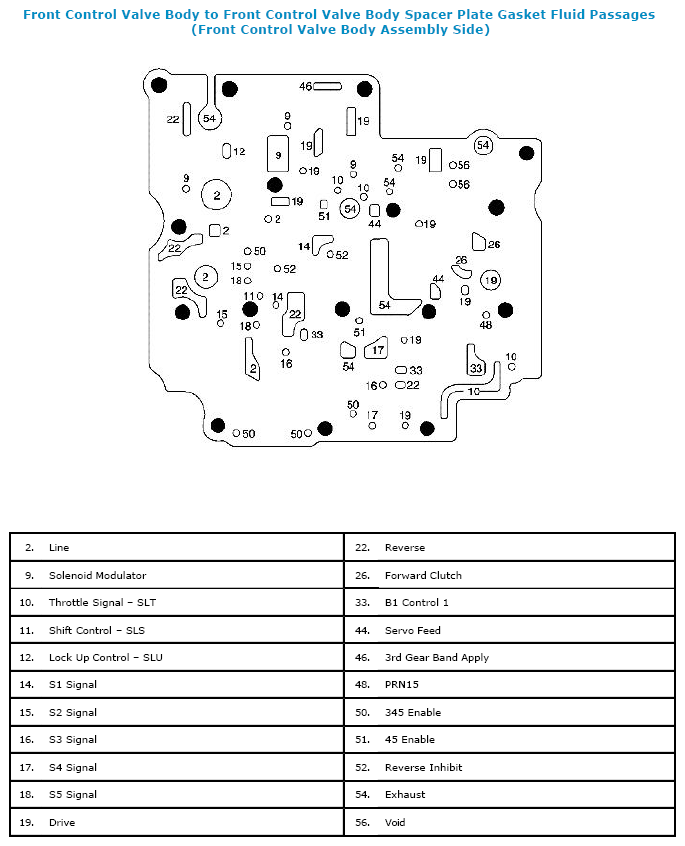

Fig 20: Identifying Front Control Valve Body To Front Control Valve Body Spacer Plate Gasket Fluid Passages (Front Control Valve Body Assembly Side)
G05469763Courtesy of SUZUKI OF AMERICA CORP.

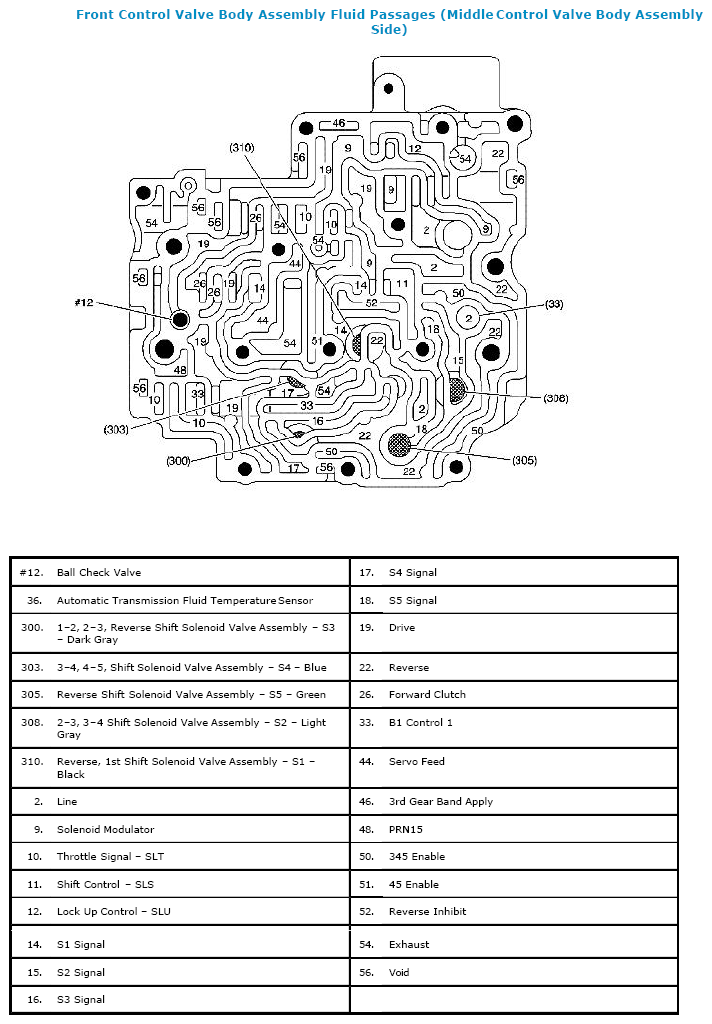

Fig 21: Identifying Front Control Valve Body Assembly Fluid Passages (Middle Control Valve Body Assembly Side)
G05469764Courtesy of SUZUKI OF AMERICA CORP.
