Automatic Transmission Electronic Component Views

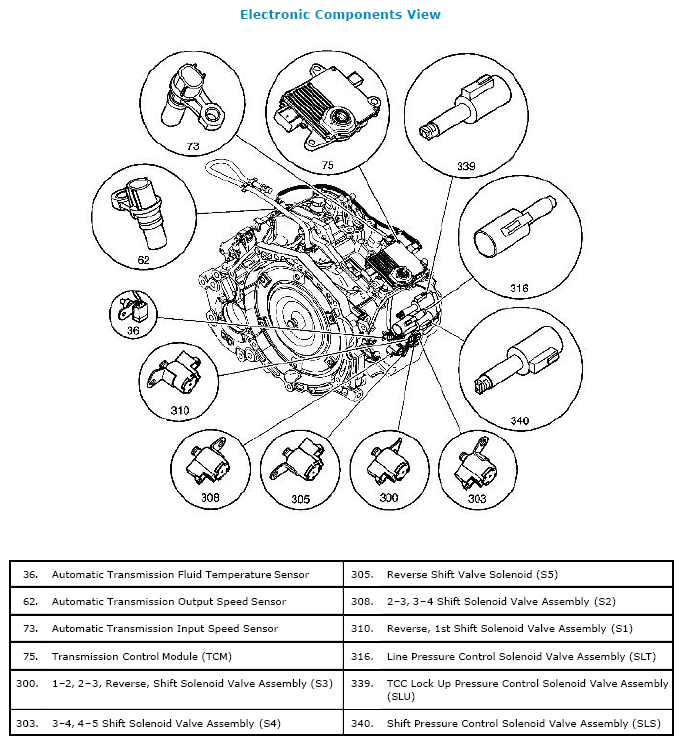

Fig 1: Identifying Automatic Transmission Electronic Components Location
G05469720Courtesy of SUZUKI OF AMERICA CORP.
