Installation Procedure

WARNING: This page is about a different variant/trim than selected.

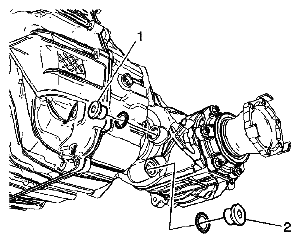

Fig 1: Identifying Drain Plug

Courtesy of SUZUKI OF AMERICA CORP.

Clean the drain plug.
CAUTION: Refer to COMPONENT FASTENER TIGHTENING NOTICE .
Install the drain plug (2).
Tightening torque

Tighten the drain plug to 39 N.m (29 lb ft).
Fill the transfer case with synthetic gear lubricant GM P/N 89021677 (Canadian P/N 89021678) to the bottom of the fill plug, or 540 ml (18.2 oz).
Install the fill plug (1).
Tightening torque

Tighten the fill plug to 39 N.m (29 lb ft).
Lower the vehicle.
