Output Flange Installation
WARNING: This page is about a different variant/trim than selected.
Output Flange Installation

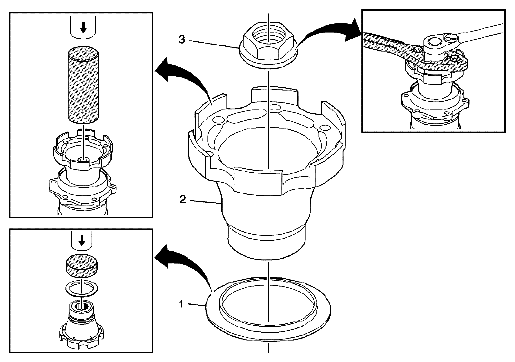

COMPONENTS LIST
| Callout | Component Name |
|---|---|
| 1 | Transfer Case Rear Output Shaft Oil Slinger Tip: Use a press with the DT-48077 in order to install the slinger. Special Tools DT-48077 Output Shaft Slinger Installer |
| 2 | Transfer Case Rear Output Shaft Flange Tip: Use a press with the J 5590 to install the flange. Special Tools J 5590 Pinion Bearing Race Installer - Rear |
| 3 | Transfer Case Rear Output Shaft Nut
CAUTION:
Refer to FASTENER NOTICE
. Tip: Use a 30 mm socket or the J 29873 and the J-08614-A. Tightening torque 235 N.m (173 lb ft) Special Tools
|
